post #18421 of 71854 Old 09-07-2009, 05:34 AM
AVS Special Member

LarryChanin's Avatar

Join Date: Nov 1999
Location: Sarasota, Florida
Posts: 6,810
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by Picasso Moon View Post

I currently have dual subs and an AVR (used as pre/pro) with Audyssesy XT but only a single sub channel. In the near future I would like to upgrade to a dedicated pre/pro and see some of the processors (Denon AVP, new Onkyo PR-SC887 etc) have multiple sub outs. Currently, I manually balance the output of each sub so match each other pretty closely. I then run Audyssey which treats the dual subs as one.

My question. Are the subs treated independently by Audyssey in the units that have multiple sub outputs? In other words does Audyssey ping each sub independently and set up a filter for each one? If this is indeed the case, is it a significant upgrade over the single channel setup I currently have?

Thanks for any input you might have.

Quote:
Originally Posted by audyssey View Post

Hi,

The Denon AVP definitely treats the three subs individually and so MultEQ will apply separate correction to each one. Not very many other AVRs and Prepros treat subs separately so it's best to check with each manufacturer directly to make sure. Audyssey will correct subs separately if that capability is given to it in the AVR.

Hi,

It would appear that sometimes its better to ping the two subwoofers simultaneously and establish a single combined correction filter even if each subwoofer can be corrected individually. Below are Chris' remarks with regard to the SVS AS-EQ1 sub EQ, which is an add-on device designed to equalize two subwoofers.


Quote:
Originally Posted by audyssey View Post

We gave users a choice to avoid raising a fuss...You have two options:

1) Dual discrete. Each sub response is measured individually and a different room correction filter is created for each one.

2) One In to Two Out. Each sub is measured individually first to find the time and level differences between them. Then the system applies delay and level adjustments to align the two subs to each other. Then it pings them together as *one* and creates a single room correction filter for the combined sum.

We found that #2 gives better results and made it the default option when you run the software.
But, when you get to that screen you have the choice to select Dual Discrete before proceeding.

So if your subwoofers are symetrically placed with respect to the primary listening location, having a single subwoofer output might not be an issue to be concerned about.

Larry
LarryChanin is offline
Sponsored Links
Advertisement

post #18422 of 71854 Old 09-07-2009, 07:00 AM
AVS Special Member

LarryChanin's Avatar

Join Date: Nov 1999
Location: Sarasota, Florida
Posts: 6,810
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by sdurani View Post

I would rather see a more generalized standard, with a little bit of flexibility. As long as the side speakers are generally to the sides (doesn't have to be precisely 90 degrees) and the rear speakers are clearly behind (doesn't have to be exactly 150 degrees), then I'm fine with it.

Hi Sanjay,

Thanks for the response.

Here's Dr. Toole's remarks regarding the standard:

Quote:


15.11.1 The ITU Perspectives
On the international scene, there is little doubt that the International Telecommunication Union document, Recommendation ITU-R-BS.775-2, updated in 2006, is the most influential. Figure 15.10a shows the well-known five-channel recommended layout, and (b) shows a broad angular range within which four or more side/rear loudspeakers can be positioned. It would seem that writers of this standard were aware of the scientific data discussed in Section 15.10 because they have expanded the permissible locations for side/rear loudspeakers to include those forward of the listening positioning.

(The accompaning layout drawing shows a shaded portion of the configuration between 60 and 150 degrees in which four or more surround speakers are permitted to be located. When more than two speakers per side are used it is suggested that they be distributed at equal intervals.)

It appears that the ITU is listening to you.

However, with such broad latitude by the mixers in placing their surrounds on the dubbing stage, it would seem there would be a much greater justification for the application of features such as DTS Speaker Re-mapping on home devices.

Larry
LarryChanin is offline
post #18423 of 71854 Old 09-07-2009, 07:45 AM
Senior Member

DR_LaRRY_PEpPeR's Avatar

Join Date: Sep 2005
Location: St. Louis area
Posts: 328
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by audyssey View Post

I was told they tried it on a 1909.

I keep staring at your data and an starting to wonder if what we are seeing is the difference between 48 kHz and 96 kHz. With some imagination, the pink curve can be shifted to the right and stretched to start looking like the red curve. So, if the sampling rates of the signals are different but in both cases are going through the 48k MultEQ filters this could happen.

Can you please remind us of your test rig? What settings are you using in the test signals, etc.

Hi Chris, all,

I got a new AVR-590 at Best Buy Friday to setup/check and then return, because I just wanted to see one that actually worked right and be totally certain that it wasn't something else specific to my setup (but what could it be?!). I wasn't sure what I was going to hear, and was afraid it wouldn't be right. But like it only took me a couple minutes to find that the refurb was messed up, I discovered almost as quickly that the lowest-end 590 works flawlessly with MultEQ as it should! I was gradual checking it. First made sure bitstream/PCM sounded the same with MultEQ Off (like the 1909s do), then MultEQ enabled (was like, "Wow, they're the same!"), then with Dynamic EQ ("Yep, for sure!!!"). Then later the graph of the output gave absolute evidence of what my ears already told me: bitstream/PCM actually remained the same with MultEQ in use.

You already know that bitstream/PCM sound/graph the same with MultEQ Off, so no need to post that again , but here's the other 2 for comparison with the refurb 1909. Note: I had to set the volume 8-9dB higher than both 1909s to get the same signal level on the graphs. Does that seem like a weird difference when they should be calibrated for reference level?? The 590's Audyssey set the speakers 4-5dB lower than any 1909 run, and the sub 10dB lower.

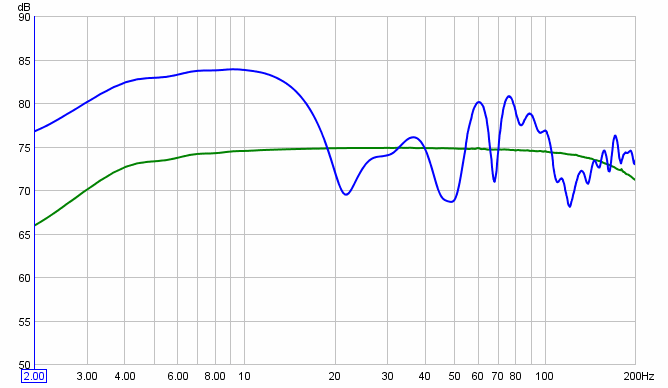

MultEQ On: PCM vs Bitstream (Plus the 2 MEQ Off measurements averaged and smoothed)


You said about the previous graph: "With some imagination, the pink curve can be shifted to the right and stretched to start looking like the red curve." Well I was thinking they actually looked more like flipped/mirror images of each other.

And the analog sweep for the sub this time:



Stuff sounds nicer than ever to me with the movie scenes I checked (even compared to PCM with the 1909s, which is pretty close to correct, but still a bit off, IMO). Maybe it's just my imagination, but I'd say less fatiguing/harsh. Another amazing part? I've left Dynamic EQ/Volume On with regular TV stuff, which generated too much rumbling back when I last tried it on the 1909. Now, not a bit (comparatively) -- probably some parts are getting boosted more than they should (mix problem) but never once have I thought, "Wow, that's annoying bass boom."

Why is that? Well, most of the channels I'd ever be on are HD ones, which of course only send out Dolby Digital, even if not 5.1, and what is that? A bitstream! Since the 1909s are screwing up bitstream decoding bigtime, I'd say that's the answer. And also every TV show I've seriously watched (all HD) since getting the 1909 has had its audio ruined!


After calling Customer Service again after they mentioned "setup issue," which was a complete was of time ("Can't think of a setting to check." "Don't really know of a setting that it would be." ), I replied to the e-mail again asking if they even reproduced the problem (didn't say), are they going to do anything to fix it, I shouldn't have to pay to ship it again for the same problem that they didn't even fix or bother to check the refurb for, etc. Response:

"I have asked our senior management to look at this. We will also be contacting Audyessy (sic) for further information.

I will get back to you as soon as I hear from them.
"

So I mentioned that the Audyssey Founder and CTO posts here and said it "is among the strangest issues I have come across." Also that you had already contacted Denon engineering in Japan and they couldn't reproduce my problem. Response:

"Our senior management will be contacting the engineering group in Japan to confirm or not confirm that this is a problem.

Just to clarify, we cannot rely on any forums for accurate information.

I will get back to you as soon as we hear from Japan.
"

Wow about the forums! I get what's meant I guess (disclaimer, etc.), but that sounds pretty stupid. So don't believe anything Chris or anyone else says here! I guess one thing that they're right with so far about Chris not being accurate is from the same post where you stated, "I think that only Denon can help you."

Amazing that a most basic/core feature seems like a dream to have working correctly at this point! I don't think Audyssey would be very pleased with MultEQ usage being broken if Denon doesn't care and/or continues to ignore the problem?

BTW, since I've had 2 problem units, I'm now confident that others are affected as well, probably unknown to the user, so I made a new thread: Warning for Denon owners: your xx09/x89 AVR may have a major bug. I'd love to know their results, especially correct ones. Do you guys have access to one of the 09 models, Chris? Or has one been used/checked/tested "personally" before...?
DR_LaRRY_PEpPeR is offline
post #18424 of 71854 Old 09-07-2009, 07:47 AM
AVS Special Member

bluesky636's Avatar

Join Date: Dec 2008
Posts: 4,179
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by kutlow View Post

I have the 4308ci and a 7.2 system.

In the Audio settings I could use some help.

Do I set AFDM to on or off?

On SB CH OUT (SURROUND BACK) - Here are the choices, WHICH ONE IS BEST?

MTRX ON
PLllX Cinema
PLllX Music
Non Matrx
OFF

Thanks in advance.

Since this is the Audyssey thread and your question appears to have nothing to do with Audyssey, perhaps you should post your question here:

http://www.avsforum.com/avs-vb/showthread.php?t=881446
bluesky636 is offline
post #18425 of 71854 Old 09-07-2009, 07:51 AM
Wireless member

pepar's Avatar

Join Date: Jul 2002
Location: Quintana Roo ... in my mind
Posts: 24,932
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked: 131
Quote:
Originally Posted by rickardl View Post

Just note that in earlier models, Audyssey does indeed balance the levels of the speakers but
does not set the trims to match reference volume at 0dB
.
Then users would have to adjust the trims manually if they want reference at 0dB.

That may not be the case across all manufacturers and models as my pre-DEQ/DV OP885 and MultEQ XT *does* setup with 75dB at measurement position #1 from all channels.

Jeff
pepar is offline
post #18426 of 71854 Old 09-07-2009, 07:58 AM
Wireless member

pepar's Avatar

Join Date: Jul 2002
Location: Quintana Roo ... in my mind
Posts: 24,932
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked: 131
Quote:
Originally Posted by DR_LaRRY_PEpPeR View Post

"I have asked our senior management to look at this. We will also be contacting Audyessy (sic) [i]for further information.

Major point deduction for them, eh Chris?
pepar is offline
post #18427 of 71854 Old 09-07-2009, 08:02 AM
Senior Member

DR_LaRRY_PEpPeR's Avatar

Join Date: Sep 2005
Location: St. Louis area
Posts: 328
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Heh, maybe they're using a knockoff technology in mine: Audyessy MultiEQ.
DR_LaRRY_PEpPeR is offline
post #18428 of 71854 Old 09-07-2009, 08:06 AM
Wireless member

pepar's Avatar

Join Date: Jul 2002
Location: Quintana Roo ... in my mind
Posts: 24,932
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked: 131
Quote:
Originally Posted by DR_LaRRY_PEpPeR View Post


Wow about the forums! I get what's meant I guess (disclaimer, etc.), but that sounds pretty stupid. So don't believe anything Chris or anyone else says here! I guess one thing that they're right with so far about Chris not being accurate is from the same post where you stated, "I think that only Denon can help you."

Amazing that a most basic/core feature seems like a dream to have working correctly at this point! I don't think Audyssey would be very pleased with MultEQ usage being broken if Denon doesn't care and/or continues to ignore the problem?

BTW, since I've had 2 problem units, I'm now confident that others are affected as well, probably unknown to the user, so I made a new thread: Warning for Denon owners: your xx09/x89 AVR may have a major bug. I'd love to know their results, especially correct ones.

Old school, monolithic companies used to having complete control with virtually no interaction among users loathe forums. New, progressive companies embrace and participate in forums using them as a means to communicate with their customers and potential customers. Denon and Audyssey would be two examples and I'll let you place them in the correct categories.
pepar is offline
post #18429 of 71854 Old 09-07-2009, 08:09 AM
Wireless member

pepar's Avatar

Join Date: Jul 2002
Location: Quintana Roo ... in my mind
Posts: 24,932
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked: 131
Quote:
Originally Posted by DR_LaRRY_PEpPeR View Post

Heh, maybe they're using a knockoff technology in mine: Audyessy MultiEQ.

I remember seeing knock off Bulova watches that actually said "Bulovia" on the face and were sold with the minute hand over the "i."
pepar is offline
post #18430 of 71854 Old 09-07-2009, 09:22 AM
Senior Member

Picasso Moon's Avatar

Join Date: Dec 2006
Location: USA
Posts: 241
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Quote:
Originally Posted by LarryChanin View Post

Hi,

It would appear that sometimes its better to ping the two subwoofers simultaneously and establish a single combined correction filter even if each subwoofer can be corrected individually. Below are Chris' remarks with regard to the SVS AS-EQ1 sub EQ, which is an add-on device designed to equalize two subwoofers.

So if your subwoofers are symetrically placed with respect to the primary listening location, having a single subwoofer output might not be an issue to be concerned about.

Larry

Thanks Larry. Yes, the subs are symmetrically placed in the room but the room itself is not symmetrical. I'm not sure how much this effects the response of the individual subs as I don't have the equip. to measure it but I'd bet it would be significant.

It appears this special dual sub eq. is a feature of the SVS unit only and not part of the pre/pro and AVR's with dual sub capability. I wonder if this will ever be part of a pre/pro or if it will stay exclusive to the AS-EQ1 which although nice, seems a little on the pricey side.
Picasso Moon is offline
post #18431 of 71854 Old 09-07-2009, 09:38 AM
AVS Special Member

LarryChanin's Avatar

Join Date: Nov 1999
Location: Sarasota, Florida
Posts: 6,810
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by Picasso Moon View Post

Thanks Larry. Yes, the subs are symmetrically placed in the room but the room itself is not symmetrical. I'm not sure how much this effects the response of the individual subs as I don't have the equip. to measure it but I'd bet it would be significant.

It appears this special dual sub eq. is a feature of the SVS unit only and not part of the pre/pro and AVR's with dual sub capability. I wonder if this will ever be part of a pre/pro or if it will stay exclusive to the AS-EQ1 which although nice, seems a little on the pricey side.

Hi,

Hopefully Chris will chime in, but here's my take:

Being symmetrically located from the primary listening location takes care of the need for individualized timing adjustments.

When you do an individual correction that result is only really valid when only one subwoofer is playing at a time, but in the real world the two subwoofers will be playing the same signal and interacting with one another (i.e. constructive and destructive interference). So maybe a correction to the combined response is more appropriate.

The fact that the two subwoofer have different individual responses due to different acoustic environments might not mean as much around the primary listening location where the microphone measurements are clustered. Audyssey is going to correct for the composite affect of the subwoofers at multiple locations near the primary listener.

Just a thought.

Larry
LarryChanin is offline
post #18432 of 71854 Old 09-07-2009, 09:51 AM
AVS Special Member

kutlow's Avatar

Join Date: Sep 2006
Location: Wetumpka, Al
Posts: 2,356
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
Quote:
Originally Posted by bluesky636 View Post

Since this is the Audyssey thread and your question appears to have nothing to do with Audyssey, perhaps you should post your question here:

http://www.avsforum.com/avs-vb/showthread.php?t=881446

The Dennon thread has come to a screeching halt.

Perhaps you need to relax and mind your own business. I am trying to get my system right and your input is not helping me. Now go wash the car or do something constructive.
kutlow is offline
post #18433 of 71854 Old 09-07-2009, 09:52 AM
AVS Addicted Member

batpig's Avatar

Join Date: Feb 2007
Location: San Diego
Posts: 23,824
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 162 Post(s)
Liked: 938
Quote:
Originally Posted by soul embrace View Post

thanks. i have a new sub ordered that should be in this week. i will adjust the center speaker and re run audyssey once the sub comes in.

thanks for your help

while I agree with the other advice so far, I'm curious what type of content you notice the dialogue problem with? Were you watching a DVD or was this a movie on your cable box? There are sometimes horrendous mixes on cable channels, I have read many reports (and have experienced this myself) of DD 5.1 movies broadcast on some cable channels having super low dialogue levels.

if it's with a standard DVD or Blu-Ray which should have a good, properly mixed soundtrack, and you are still having dialogue issues after repositioning the center and re-running Audyssey, you should try out the Dynamic Volume feature (the Evening setting is great for this). It will allow you to set the volume at the point where you can understand the dialogue, and then it will prevent the other effects from getting so loud that they overwhelm everything.

batpig's "Denon-to-English Dictionary"
Setup Guide and FAQ
http://batpigworld.com/

Become a fan "batpigworld.com" on Facebook!
batpig is offline
post #18434 of 71854 Old 09-07-2009, 10:01 AM
AVS Addicted Member

batpig's Avatar

Join Date: Feb 2007
Location: San Diego
Posts: 23,824
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 162 Post(s)
Liked: 938
BTW, Chris -- I didn't see this mentioned here but the cat is out of the bag and the Denon AVR-4810CI has been posted online.

I downloaded the manual and see this is the FIRST receiver which can not only do ANY of the 9.1 configs, but it can do a full 11.1 DSX setup with the addition of an external amp. Look likes it doesn't do individual sub EQ on the three SW outs, but no big deal as 11-channels is pretty freakin' cool (plus it's a moot point as I can't afford it anyway!) I will say that trying to understand the dizzying array of amp assign / config options made my Denon-to-English translationerator start overheating!

So, anyway, you are allowed to talk about it now. Congrats on finally having a product on the market that can unleash the full power of DSX!

batpig's "Denon-to-English Dictionary"
Setup Guide and FAQ
http://batpigworld.com/

Become a fan "batpigworld.com" on Facebook!
batpig is offline
post #18435 of 71854 Old 09-07-2009, 10:12 AM
Advanced Member

soul embrace's Avatar

Join Date: Sep 2005
Location: decatur, alabama
Posts: 559
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by batpig View Post

while I agree with the other advice so far, I'm curious what type of content you notice the dialogue problem with? Were you watching a DVD or was this a movie on your cable box? There are sometimes horrendous mixes on cable channels, I have read many reports (and have experienced this myself) of DD 5.1 movies broadcast on some cable channels having super low dialogue levels.

if it's with a standard DVD or Blu-Ray which should have a good, properly mixed soundtrack, and you are still having dialogue issues after repositioning the center and re-running Audyssey, you should try out the Dynamic Volume feature (the Evening setting is great for this). It will allow you to set the volume at the point where you can understand the dialogue, and then it will prevent the other effects from getting so loud that they overwhelm everything.


so far it's only been on two blu-ray movies The Incredible Hulk and Pearl Harbor. then it's only when there are a lot of action going on also. i have the dynamic Eq on also.

once i get my new sub and get it set up i will re run audyssey and if i'm still having dialog issue i will try the dynamic volume.

"I believe, that whatever doesn't kill you, simply makes you....Stranger" - Joker
soul embrace is offline
post #18436 of 71854 Old 09-07-2009, 10:57 AM
AVS Addicted Member

batpig's Avatar

Join Date: Feb 2007
Location: San Diego
Posts: 23,824
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 162 Post(s)
Liked: 938
gotcha -- that is not uncommon with contemporary action movies and their overwhelming surround mixes, especially on a tiny sub/sat setup like the Energy Takes. Those teeny little speakers don't really have the overall dynamics to cleanly handle huge action flick soundtracks at big volumes; I strongly recommend you try out Dynamic Volume on "Evening" mode, it kind of smoothes out the huge dynamic jumps while still retaining high quality sound.

batpig's "Denon-to-English Dictionary"
Setup Guide and FAQ
http://batpigworld.com/

Become a fan "batpigworld.com" on Facebook!
batpig is offline
post #18437 of 71854 Old 09-07-2009, 11:09 AM
Advanced Member

soul embrace's Avatar

Join Date: Sep 2005
Location: decatur, alabama
Posts: 559
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by batpig View Post

gotcha -- that is not uncommon with contemporary action movies and their overwhelming surround mixes, especially on a tiny sub/sat setup like the Energy Takes. Those teeny little speakers don't really have the overall dynamics to cleanly handle huge action flick soundtracks at big volumes; I strongly recommend you try out Dynamic Volume on "Evening" mode, it kind of smoothes out the huge dynamic jumps while still retaining high quality sound.


i will try the dynamic volume next time i watch an action flick if i have problems with the next one i watch. i may have to look into getting a better center when i get my income tax money in next February. i'm pleased with the rear sound from the energy takes.

for now i did bump up the volume in the center by about 3db and that helped a lot.

"I believe, that whatever doesn't kill you, simply makes you....Stranger" - Joker
soul embrace is offline
post #18438 of 71854 Old 09-07-2009, 11:24 AM
AVS Special Member

LarryChanin's Avatar

Join Date: Nov 1999
Location: Sarasota, Florida
Posts: 6,810
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by audyssey View Post

The Denon AVP definitely treats the three subs individually and so MultEQ will apply separate correction to each one. Not very many other AVRs and Prepros treat subs separately so it's best to check with each manufacturer directly to make sure. Audyssey will correct subs separately if that capability is given to it in the AVR.

Quote:
Originally Posted by LarryChanin View Post

Hi,

It would appear that sometimes its better to ping the two subwoofers simultaneously and establish a single combined correction filter even if each subwoofer can be corrected individually. Below are Chris' remarks with regard to the SVS AS-EQ1 sub EQ, which is an add-on device designed to equalize two subwoofers.




So if your subwoofers are symetrically placed with respect to the primary listening location, having a single subwoofer output might not be an issue to be concerned about.

Larry


Quote:
Originally Posted by Picasso Moon View Post

It appears this special dual sub eq. is a feature of the SVS unit only and not part of the pre/pro and AVR's with dual sub capability. I wonder if this will ever be part of a pre/pro or if it will stay exclusive to the AS-EQ1 which although nice, seems a little on the pricey side.

Hi,

I missed your second question in my previous response.

As Chris mentioned in the certain AVR/prepros that have separate subwoofer connections, Audyssey will apply separate corrections to each subwoofer, (it will also do separate timing adjustments). I believe the big difference in function between such units and the AS-EQ1 is that the AS-EQ1 has its own dedicated DSP resources so it can offer higher resolution filters than AVR/prepros.

It is pure speculation on my part, but AVR/preopros have a lot of other non-Audyssey competing processing that imposes demands on the common DSP resources. So based on maintaining their price competitiveness it is not likely that they would incur extra costs just to add more resolution to Audyssey's subwoofer filters, which are pretty good to start with in comparison with other approaches.

Larry

EDIT:
Based on subsequent comments from Chris, I realize my posting was not precisely correct. Some AVR/prepros that have separate subwoofer connections can do separate timing adjustments. However, none of the current AVR/prepro models allow time and level alignment of the two subs prior to running MultEQ. That's currently only possible in the SVS AS-EQ1 and the Audyssey Sub Equalizer.
LarryChanin is offline
post #18439 of 71854 Old 09-07-2009, 11:49 AM
Wireless member

pepar's Avatar

Join Date: Jul 2002
Location: Quintana Roo ... in my mind
Posts: 24,932
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked: 131
Quote:
Originally Posted by kutlow View Post

The Dennon thread has come to a screeching halt.

Perhaps you need to relax and mind your own business. I am trying to get my system right and your input is not helping me. Now go wash the car or do something constructive.

Not a good reply to someone who was giving you good advice.
pepar is offline
post #18440 of 71854 Old 09-07-2009, 12:47 PM
Advanced Member

orologio's Avatar

Join Date: Mar 2008
Location: New York City
Posts: 974
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 10
Quote:
Originally Posted by LarryChanin View Post

Hi,

Hopefully Chris will chime in, but here's my take:

Being symmetrically located from the primary listening location takes care of the need for individualized timing adjustments.

When you do an individual correction that result is only really valid when only one subwoofer is playing at a time, but in the real world the two subwoofers will be playing the same signal and interacting with one another (i.e. constructive and destructive interference). So maybe a correction to the combined response is more appropriate.

The fact that the two subwoofer have different individual responses due to different acoustic environments might not mean as much around the primary listening location where the microphone measurements are clustered. Audyssey is going to correct for the composite affect of the subwoofers at multiple locations near the primary listener.

Just a thought.

Larry

I thought that audyssey was already taking care of the contractive-decostractive behaviour of two sub when measured individually.
I have dual subs, a Denon avp a1hd and audyssey pro.

Would like to hear Chris as well on this.
Can that be done with the AVP?

Also, it would be interesting to know what happens if I add the sub eq to the system, would Audyssey pro apply the extra 'unused' filters to the remaing speakers- since the subs would be taken care by a separate audyssey?
I am not even sure if it can be done, if yes, how?
Thanks
orologio is offline
post #18441 of 71854 Old 09-07-2009, 01:16 PM
AVS Special Member

LarryChanin's Avatar

Join Date: Nov 1999
Location: Sarasota, Florida
Posts: 6,810
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by orologio View Post

I thought that audyssey was already taking care of the contractive-decostractive behaviour of two sub when measured individually.

Hi,

Not exactly.

When Audyssey measures the subwoofers individually it builds filters to flatten the frequency response for each subwoofer. In doing this it does account for constructive and destructive interference caused by reflections off room boundaries. However, when another subwoofer plays the same signal at a different location, that causes another source of interactions which may be worse than reflections since they are not attenuated by bouncing off of room boundaries and acoustic treatments.

When taking individual measurements there isn't any constructive and destructive interference occurring from the other subwoofer for Audyssey to correct. It is only when both subwoofers are playing the test signal simultaneously that these subwoofer to subwoofer interactions occur, and only then can Audyssey attempt to correct for them.

Quote:


Would like to hear Chris as well on this.

So would I.

Larry
LarryChanin is offline
post #18442 of 71854 Old 09-07-2009, 01:18 PM
Member

johst16's Avatar

Join Date: Jul 2009
Posts: 47
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
My channel level check is

Front L +1.0db
Center +2.0 db
Front R +1.0

Surround R +3.0
Surround L +0.5 db

Subwoofer -9.0 db

This is from a Denon 1910

I read that the maximum for sub is -+12.0 db.


Is this an acceptable range for my audissy setting for my sub or should I redo. It says to put the sub volume in the middle and start from there
johst16 is offline
post #18443 of 71854 Old 09-07-2009, 01:38 PM
AVS Special Member

kutlow's Avatar

Join Date: Sep 2006
Location: Wetumpka, Al
Posts: 2,356
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
Quote:
Originally Posted by pepar View Post

Not a good reply to someone who was giving you good advice.

The Dennon thread is dead. You might get a post every 8 days. I think I mentioned that already.
kutlow is offline
post #18444 of 71854 Old 09-07-2009, 02:04 PM
AVS Addicted Member

millerwill's Avatar

Join Date: Apr 2004
Location: Berkeley, CA
Posts: 11,356
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked: 27
Quote:
Originally Posted by johst16 View Post

My channel level check is

Front L +1.0db
Center +2.0 db
Front R +1.0

Surround R +3.0
Surround L +0.5 db

Subwoofer -9.0 db

This is from a Denon 1910

I read that the maximum for sub is -+12.0 db.


Is this an acceptable range for my audissy setting for my sub or should I redo. It says to put the sub volume in the middle and start from there

It might be good to turn down the gain on your sub a bit, and up the trim in the AVR, e.g., to ~ -5 or so, checking to keep the SPL the same as you now have.
millerwill is offline
post #18445 of 71854 Old 09-07-2009, 02:56 PM
AVS Special Member

SoundofMind's Avatar

Join Date: Sep 2008
Location: SE MI
Posts: 7,962
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 158
Quote:
Originally Posted by millerwill View Post

It might be good to turn down the gain on your sub a bit, and up the trim in the AVR, e.g., to ~ -5 or so, checking to keep the SPL the same as you now have.

No, if he is concerned about the sub trim, the proper procedure would be to turn down the knob on the sub and rerun Autosetup. This is why it is recommended to check the trims after just 1 position.

Johst, it's in the acceptable range unless you find you have boomy bass and want to trim it down at some point. As you don't have far to go at -9, I'd rerun as described above.

Yes, I still like playing with Dalis.

SoundofMind is offline
post #18446 of 71854 Old 09-07-2009, 03:05 PM
Advanced Member

orologio's Avatar

Join Date: Mar 2008
Location: New York City
Posts: 974
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 10
Quote:
Originally Posted by LarryChanin View Post

Hi,

Not exactly.

When Audyssey measures the subwoofers individually it builds filters to flatten the frequency response for each subwoofer. In doing this it does account for constructive and destructive interference caused by reflections off room boundaries. However, when another subwoofer plays the same signal at a different location, that causes another source of interactions which may be worse than reflections since they are not attenuated by bouncing off of room boundaries and acoustic treatments.

When taking individual measurements there isn't any constructive and destructive interference occurring from the other subwoofer for Audyssey to correct. It is only when both subwoofers are playing the test signal simultaneously that these subwoofer to subwoofer interactions occur, and only then can Audyssey attempt to correct for them.



So would I.

Larry

thanks for your response.

so, as I understand it now, if we were playing a mono signal thrugh all the speakers inthe system, even with audyssey engaged there could be some negative interactions between them, especially if full range speakers were involved, unless they were calibrated togheter as a one. But, don't notes overlap most the times even when multichannel is being played?

but I understand, that the lower range is more susceptible to this. Isn't it?
orologio is offline
post #18447 of 71854 Old 09-07-2009, 03:13 PM
AVS Special Member

LarryChanin's Avatar

Join Date: Nov 1999
Location: Sarasota, Florida
Posts: 6,810
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by LarryChanin View Post

When you do an individual correction that result is only really valid when only one subwoofer is playing at a time, but in the real world the two subwoofers will be playing the same signal and interacting with one another (i.e. constructive and destructive interference). So maybe a correction to the combined response is more appropriate.

Quote:
Originally Posted by orologio View Post

I thought that audyssey was already taking care of the contractive-decostractive behaviour of two sub when measured individually.

Quote:
Originally Posted by LarryChanin View Post

...when another subwoofer plays the same signal at a different location, that causes another source of interactions which may be worse than reflections since they are not attenuated by bouncing off of room boundaries and acoustic treatments.

When taking individual measurements there isn't any constructive and destructive interference occurring from the other subwoofer for Audyssey to correct. It is only when both subwoofers are playing the test signal simultaneously that these subwoofer to subwoofer interactions occur, and only then can Audyssey attempt to correct for them.

Quote:
Originally Posted by orologio View Post

thanks for your response.

so, as I understand it now, if we were playing a mono signal thrugh all the speakers inthe system, even with audyssey engaged there could be some negative interactions between them, especially if full range speakers were involved, unless they were calibrated togheter as a one. But, don't notes overlap most the times even when multichannel is being played?

but I understand, that the lower range is more susceptible to this. Isn't it?


Hi,

Here's a more detailed explanation. Please refer to the attachment.

In this example there are two subwoofers placed symmetrically with the primary listening location centered on a couch. An off-axis listener is 13 feet from one subwoofer and 10 feet from the other subwoofer. This represents a 2.65ms delay between the signals coming from the subwoofers.

At 188 Hz the wavelength of the signal is such that the signals are 180 degrees out of phase, meaning they cancel each other, destructive interference. This causes a null in the combined subwoofer frequency response at the listener position at 188 Hz. Some subwoofers go this high.

Theoretically another 188 Hz higher the two signals are in phase and constructively interfere causing a peak in the frequency response. This pattern of nulls and peaks repeat every 377 Hz. I say theoretically because most subwoofers don't have any measurable output at 377 Hz so there are no further peaks or nulls in this case.

Just one big null at 188 Hz which isn't there to be corrected by Audyssey when only one subwoofer is measured at a time.


This situation will always occur for two subwoofers because they are always playing the same signal. It rarely occurs for all speakers, it might occur as a transient condition, but I doubt that would be a problem.

This occurs at all frequencies when there are two sources playing the same signal, or when reflections interfere with direct signals.

Larry

EDIT:
As a practical matter this is probably not a problem. I was merely trying to provide an explanation as to why Audyssey chose to default to a combined response measurement on the AS-EQ1 .
LL
LarryChanin is offline
post #18448 of 71854 Old 09-07-2009, 03:13 PM
AVS Addicted Member

millerwill's Avatar

Join Date: Apr 2004
Location: Berkeley, CA
Posts: 11,356
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked: 27
Quote:
Originally Posted by SoundofMind View Post

No, if he is concerned about the sub trim, the proper procedure would be to turn down the knob on the sub and rerun Autosetup.

It's not worth arguing; if one would prefer to do what you say it is fine, though not necessary. A couple of dB down on the sub gain and up on the AVR trim will make no difference to the Audyssey result.
millerwill is offline
post #18449 of 71854 Old 09-07-2009, 04:04 PM
AVS Special Member

SoundofMind's Avatar

Join Date: Sep 2008
Location: SE MI
Posts: 7,962
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 158
Quote:
Originally Posted by millerwill View Post

It's not worth arguing; if one would prefer to do what you say it is fine, though not necessary. A couple of dB down on the sub gain and up on the AVR trim will make no difference to the Audyssey result.

I have no idea what you're talking about so I wonder if in fact you have no idea what you're talking about. We are advising the fellow as to proper procedure to establish Audyssey reference EQ.

Yes, I still like playing with Dalis.

SoundofMind is offline
post #18450 of 71854 Old 09-07-2009, 04:07 PM
Wireless member

pepar's Avatar

Join Date: Jul 2002
Location: Quintana Roo ... in my mind
Posts: 24,932
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked: 131
Quote:
Originally Posted by kutlow View Post

The Dennon thread is dead. You might get a post every 8 days. I think I mentioned that already.

http://www.amazon.com/How-Win-Friend.../dp/0671723650
pepar is offline
Reply Receivers, Amps, and Processors

Tags
Audyssey , Receivers Amplifiers , Kef Kht1005 2se 5 1 Subwoofer Satellite System With C4 Subwoofer Gloss White , 5 6 7 1 7 2 Or 8 1 8 2 One Or Two Subwoofer Compatible 16 Banana Post 2 Rca Speaker Wall Plate For H
Gear in this thread

    Thread Tools
    Show Printable Version Show Printable Version
    Email this Page Email this Page


    Forum Jump:

    Posting Rules
    You may not post new threads
    You may not post replies
    You may not post attachments
    You may not edit your posts

    BB code is On
    Smilies are On
    [IMG] code is On
    HTML code is Off
    Trackbacks are Off
    Pingbacks are Off
    Refbacks are Off
