post #1 of 16 Old 05-05-2012, 08:59 AM - Thread Starter
AVS Addicted Member

cel4145's Avatar

Join Date: Mar 2009
Location: Grand Rapids, MI
Posts: 11,721
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 232 Post(s)
Liked: 765
Since I'm new to understanding this issue, I found very useful NwAvGuy's recent What We Hear post about sonic transparency and listener bias. It seemed to sum up some very good arguments in a very reader-friendly fashion.

Your questions are answered:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

HT: Energy RC-50, RC-LCR, Veritas VS Surrounds | Dual CHT SS 18.1s | Denon AVR-888 | modified Dayton SA1000 | Antimode 8033C
Desktop: CBM-170 SE | SVS SB-1000 | Audio-GD NFB-11 | HK 3390
Headphone & Portable HE-400 | K612 Pro | HP150 | DX50 | E12
cel4145 is online now
Sponsored Links
Advertisement

post #2 of 16 Old 05-06-2012, 05:53 PM

Auditor55's Avatar

Join Date: Jan 2002
Location: Silicon Valley, CA.
Posts: 8,795
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 20
Quote:
Originally Posted by cel4145 View Post

Since I'm new to understanding this issue, I found very useful NwAvGuy's recent What We Hear post about sonic transparency and listener bias. It seemed to sum up some very good arguments in a very reader-friendly fashion.

Very interesting article.
Auditor55 is offline
post #3 of 16 Old 05-06-2012, 06:50 PM
AVS Special Member

mcnarus's Avatar

Join Date: Nov 2007
Posts: 6,120
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 92 Post(s)
Liked: 303
Yeah. We tend to get lost in the weeds in discussions here. That guy's got a gift for making describing the technical in non-technical language.

If you can't explain how it works, you can't say it doesn't.—The High-End Creed

mcnarus is online now
post #4 of 16 Old 05-06-2012, 10:21 PM - Thread Starter
AVS Addicted Member

cel4145's Avatar

Join Date: Mar 2009
Location: Grand Rapids, MI
Posts: 11,721
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 232 Post(s)
Liked: 765
Very reader-friendly. It's also extremely comprehensive. I'm sure it will be nice to have a piece like that to link to and just say, "Go read this and hear what he has to say."

Your questions are answered:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

HT: Energy RC-50, RC-LCR, Veritas VS Surrounds | Dual CHT SS 18.1s | Denon AVR-888 | modified Dayton SA1000 | Antimode 8033C
Desktop: CBM-170 SE | SVS SB-1000 | Audio-GD NFB-11 | HK 3390
Headphone & Portable HE-400 | K612 Pro | HP150 | DX50 | E12
cel4145 is online now
post #5 of 16 Old 05-07-2012, 05:08 AM
AVS Addicted Member

arnyk's Avatar

Join Date: Oct 2002
Location: Grosse Pointe Woods, MI
Posts: 14,381
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 747 Post(s)
Liked: 1161
Quote:
Originally Posted by cel4145 View Post

Since I'm new to understanding this issue, I found very useful NwAvGuy's recent What We Hear post about sonic transparency and listener bias. It seemed to sum up some very good arguments in a very reader-friendly fashion.

For me this was good, delicious Motherhood and Apple Pie. Nothing new, but well-known stuff stated in a friendly way.

One of the most amusing parts of his comment about obvious technical incompetence at high end web sites, with comments about a certani power amp http://www.high-endaudio.com/RECENT.html#Mar as an example.

The high end expert says: Every listener described the Halcro as being 'unlistenable', justifiying it with this claim: "To give you an example: the Halcro DM58 amplifier measures .007%THD at 2 watts, whereas at 1/1000th watts, THD measures 8.9%! By contrast a Wavac SH833 measures .57%THD at 2 watts and 1.6%THD at 1/1000th watts. The tube Wavac exhibits significantly lower THD at low signal levels by orders of magnitude than the Halcro. I have measured numerous amplifiers, both solid state and tube, which I will provide to you as well as any other information you may want pertaining to this work."

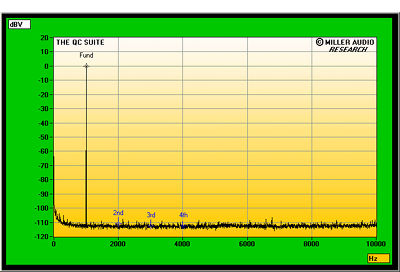

There is an independent test of the Halcro posted at http://www.stereophile.com/content/h...rements-part-2. which includes the following test results:

In fact the above shows that all harmonics are 105 dB or more down.



Shows no actual evidence of harmonics increasing dramatically at low levels. Instead it shows the results of a constant noise floor being compared to a varying signal level.

It is too bad that John Atkinson doesn't do standard dynamic range testing of power amps because it gives more direct evidence about performance at low listening levels, but John appears to be a very old-school guy when it comes to measurements.
arnyk is offline
post #6 of 16 Old 05-07-2012, 08:27 AM - Thread Starter
AVS Addicted Member

cel4145's Avatar

Join Date: Mar 2009
Location: Grand Rapids, MI
Posts: 11,721
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 232 Post(s)
Liked: 765
And I thought this part was funny, yet a good idea

Quote:
AMPS & DACS MAKE LOUSY EQUALIZERS: If you want to alter the sound a much better method than using a colored amp or DAC is using EQ. That’s what it’s for.

I have a Vox VT30 guitar amp that does amp modeling. It's not a very expensive model--so it's not perfect in its reproduction--but there would seem to be a market in home audio for a specialized EQ that had different tube amp sound models preset and selectable. Then again, maybe people wouldn't like it because there's no bragging rights on having the latest, most expensive boutique tube amp.

Your questions are answered:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

HT: Energy RC-50, RC-LCR, Veritas VS Surrounds | Dual CHT SS 18.1s | Denon AVR-888 | modified Dayton SA1000 | Antimode 8033C
Desktop: CBM-170 SE | SVS SB-1000 | Audio-GD NFB-11 | HK 3390
Headphone & Portable HE-400 | K612 Pro | HP150 | DX50 | E12
cel4145 is online now
post #7 of 16 Old 05-07-2012, 09:03 AM
AVS Special Member

Randy Bessinger's Avatar

Join Date: Jun 2009
Posts: 1,279
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Liked: 38
Nice article and the BBC video was very interesting.
Randy Bessinger is offline
post #8 of 16 Old 05-07-2012, 04:03 PM
AVS Special Member

A9X-308's Avatar

Join Date: Mar 2008
Location: Australia; now run by adults.
Posts: 5,279
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Liked: 72
Good article. Like Arny, not much new to me but well presented and worth bookmarking to point others to.

In case anyone hasn't seen these three clips, they are great to show the effect of presentation on perception. Damn funny too.

Bottled Water
The best
No comment
A9X-308 is offline
post #9 of 16 Old 05-08-2012, 11:48 AM
AVS Addicted Member

Chu Gai's Avatar

Join Date: Sep 2002
Location: NYC area
Posts: 14,773
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 160 Post(s)
Liked: 465
Thanks for the article. The author clearly spent a goodly amount of time on it.

"I've found that when you want to know the truth about someone that someone is probably the last person you should ask." - Gregory House
Chu Gai is online now
post #10 of 16 Old 05-08-2012, 04:39 PM
AVS Special Member

dknightd's Avatar

Join Date: Jan 2006
Posts: 1,821
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
IMO comparing wine to audio is a mistake. Sure they both suffer from preconceptions. But the fact is most wine (or beer - my beverage of choice) does taste different.
Most good audio equipment sounds very nearly the same.
I'm not sure THD is a good measure. I think some people like tubes because most of the distortion is even harmonics (kind of like what most instruments make anyway) whereas most transistors make both even and odd harmonics.

I don't have a single piece of tube gear. But I have thought about adding a tube distortion on purpose - I don't think you can do that with an eq. Maybe you can with DSP. Some music I think might benefit by adding some nice even order harmonics (perhaps removed in a studio that uses too much eq). I'd probably only use it on things I thought were badly recorded, and then only very rarely. I'd like a simple switch - add .2, .5, 1 even order harmonic distortion. If nothing else it would be interesting to see if I could actually hear the difference.

Perhaps I should not comment yet - I haven't made it through the whole article - but will to see what happens :cheers:

Everything I say here is my opinion. It is not my employers opinion, it is not my wife's opinion, it is not my neighbors opinion, it is My Opinion.
dknightd is offline
post #11 of 16 Old 05-08-2012, 05:10 PM

diomania's Avatar

Join Date: Dec 2008
Posts: 1,389
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 49
Quote:
Originally Posted by dknightd View Post

I think some people like tubes because most of the distortion is even harmonics (kind of like what most instruments make anyway) whereas most transistors make both even and odd harmonics.

That's inaccurate description of tube and transistor audio gears. Both can have more or less even harmonics depending on the circuit design type (single ended vs push-pull).
diomania is offline
post #12 of 16 Old 05-08-2012, 05:24 PM
AVS Special Member

dknightd's Avatar

Join Date: Jan 2006
Posts: 1,821
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Quote:
Originally Posted by diomania View Post

That's inaccurate description of tube and transistor audio gears. Both can have more or less even harmonics depending on the circuit design type (single ended vs push-pull).

I'd like to learn more about this.

Everything I say here is my opinion. It is not my employers opinion, it is not my wife's opinion, it is not my neighbors opinion, it is My Opinion.
dknightd is offline
post #13 of 16 Old 05-08-2012, 05:43 PM

diomania's Avatar

Join Date: Dec 2008
Posts: 1,389
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 49
diomania is offline
post #14 of 16 Old 05-08-2012, 10:53 PM
AVS Special Member

DS-21's Avatar

Join Date: Jun 2005
Posts: 3,427
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Liked: 187
Quote:
Originally Posted by dknightd View Post

IMO comparing wine to audio is a mistake. Sure they both suffer from preconceptions. But the fact is most wine (or beer - my beverage of choice) does taste different.
Most good audio equipment sounds very nearly the same.


After reading NwAvGuy's a posted a little heads-up about it on my audio blog. Here's the passage that expands on what you wrote.

Quote:


However, I do think NwAvGuy lingers a bit too long on the wine analogy, leading with it and then coming back to it. Including in the passage I quoted above. There is, after all, a gigantic chasm between between wine and audio electronics:

Wines mostly have a taste distinct from one another, whereas audio electronics should be sonically transparent and thus identical sounding; generally modern audio electronics actually are sonically transparent, unless they are incompetently designed or ineptly assembled.

That is to say, blind wine tasting is a far closer analogy to Dr. Floyd Toole and Dr. Sean Olive's speaker preference tests at Harman International than it is to blind comparisons of audio electronics. Just as wines typically taste different from one another (remember that difference is distinct from preference), speakers generally sound different from one another. Heck, there are some drive-unit makers that can't seem to produce two consecutive midranges of the same model number that sound or measure the same as each other! (Morel, I'm talking to you!)


--
"In many cases there aren’t two sides unless one side is 'reality' and the other is 'nonsense.'" - Phil Plait

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

DS-21 is offline
post #15 of 16 Old 05-09-2012, 04:07 AM
AVS Addicted Member

arnyk's Avatar

Join Date: Oct 2002
Location: Grosse Pointe Woods, MI
Posts: 14,381
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 747 Post(s)
Liked: 1161
Quote:
Originally Posted by dknightd View Post

IMO comparing wine to audio is a mistake. Sure they both suffer from preconceptions. But the fact is most wine (or beer - my beverage of choice) does taste different.

Most good audio equipment sounds very nearly the same.

Good points. Of course speakers and rooms sound incredibly different, perhaps more different than different versions of the same wine. I think this may be why so many audiophiles think all components sound different - they hear so many of the different options in different rooms and with different speakers.

Quote:


I'm not sure THD is a good measure.

With electronics THD isn't a good measure because as used, just about everything has either no audible distortion or distortion so low that it is really hard to distinguish.

Quote:


I think some people like tubes because most of the distortion is even harmonics (kind of like what most instruments make anyway) whereas most transistors make both even and odd harmonics.

Actually transistor amplifiers being almost universally push-pull, have vanishingly low amounts of even distortion. Clipping is all odd order distortion. Tubed amps have odd order distortion when they clip, and often have lots of it below clipping. Since they typically have so much more nonlinear distortion, they almost always have more odd order distortion than a comparable SS amp
.

The story about people preferring even order distortion is probably at best a half-truth. Even order distortion is more likely to be masked by the ear (because most even order distortion is second order and thus closer to the fundamental and thus under its masking curve) and also by the natural sounds of musical instruments which are generally heavy on even order distortion.

Trouble is that THD is caused by nonlinear distortion which can't help but produce IM products as soon as two or more tones are present, which happens with just about all music. IM is primarily aharmonic which means that there are few naturally-produced tones in the music to mask it. Not only aren't IM products not masked and covered by the music, but they are generally at odds with the chord structure of the music. They just don't fit, and the ear knows that and gets unhappy.

Quote:


I don't have a single piece of tube gear. But I have thought about adding a tube distortion on purpose - I don't think you can do that with an eq.

There is a way to add controlled amounts of various orders of nonlinear distortion in a way that is similar to what an equalizer does for timbre. It can be done with some DAW software (CEP/Audition for example), but it can also be done with a DSP in real time.

The problem with using natural distortion generators is that they have one profile of distortion generation, which you can vary in intensity by controlling the size of the signal passing through, but you can't change its internal order in ways that would allow you to spin knobs and get the distortion of your dreams or favorite SET amp.

Quote:


Maybe you can with DSP.

For sure you can with a DSP or a PC. Just write a little code in C...

Quote:


Some music I think might benefit by adding some nice even order harmonics (perhaps removed in a studio that uses too much eq).

Eq doesn't remove the effects of nonlinear distortion unless you are very, very intentional about what you do. Even if you are intentional most studio eqs can't do this well.

The best way to remove the effects of nonlinear distortion would be a nonlinear compensator, which is the technical name of what I was describing above. Nonlinear distortion can be cancelled out if you know what it is.

Quote:


I'd probably only use it on things I thought were badly recorded, and then only very rarely.

I think you'd quickly find out about how much you can't adding IM when you add harmonics, and how much you don't like IM. IME while tubed equipment can have scary amounts of nonlinear distortion, that isn't their most audible effect.

The most audible effect of tubed electronics is IME the poor frequency response, particularly in power amps driving loudspeaker or loudspeaker-like loads. Read a Stereophile review of tubed amps. Know that Atkinson's speaker simulator is easier on amps than many if not most speakers. I studied the kind of loads many of the speakers he's tested, and came up with a speaker simulator that was about twice as stressful.

Tubed preamps are actually pretty clean, especially if you keep them away from SS amps with low input impedances and long cables. I have a CJ and its not at all that different sounding than my SS gear.

Quote:


I'd like a simple switch - add .2, .5, 1 even order harmonic distortion. If nothing else it would be interesting to see if I could actually hear the difference.

Actually, that particular device has been built and its schematic is at:

http://home.provide.net/~djcarlst/abx_grun.htm (parts values for gvein amounts of THD at URL)
and looks like this:
arnyk is offline
post #16 of 16 Old 05-09-2012, 04:13 AM
AVS Addicted Member

arnyk's Avatar

Join Date: Oct 2002
Location: Grosse Pointe Woods, MI
Posts: 14,381
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 747 Post(s)
Liked: 1161
Quote:
Originally Posted by dknightd View Post

I'd like to learn more about this.

The short answer is that a well-balanced push-pull amplifier inherently has very low even order distortion because the pushing and pulling automagically cancels it out.

True for tubes, true for SS. The idea that SS amps built in the last 3-4 decades have more odd order distortion than a compable tubed amp is an audiophile myth, as I explained above.
arnyk is offline
