post #13411 of 13426 Old Today, 07:49 AM
AVS Special Member

Brian Fineberg's Avatar

Join Date: Feb 2002
Posts: 4,280
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 916 Post(s)
Liked: 985
For reflections
Brian Fineberg is online now
Sponsored Links
Advertisement

post #13412 of 13426 Old Today, 07:53 AM
AVS Special Member

markus767's Avatar

Join Date: Apr 2009
Posts: 5,982
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 1273 Post(s)
Liked: 508
^
So your real question is how much reflections should be attenuated?

Markus

"In science, contrary evidence causes one to question a theory. In religion, contrary evidence causes one to question the evidence." - Floyd Toole
markus767 is online now
post #13413 of 13426 Old Today, 08:15 AM
AVS Special Member

Brian Fineberg's Avatar

Join Date: Feb 2002
Posts: 4,280
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 916 Post(s)
Liked: 985
Yes. When measuring for reflections. What is the goal? Where should the impulse be below?
Brian Fineberg is online now
post #13414 of 13426 Old Today, 08:31 AM
AVS Special Member

markus767's Avatar

Join Date: Apr 2009
Posts: 5,982
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 1273 Post(s)
Liked: 508
^
There is no simple answer to this.

The audibility of reflections depends on the number of reflections, their direction, spectral content and delay. Furthermore it depends on the signal itself. Reflections of percussive sounds are easier to hear than reflections of instruments playing sustained sounds, e.g. violins.
Some reflections are "grouped" by our hearing. Although their individual level is low and doesn't show up as significant spikes in graphs, their perceived level is high.

Then there's the question whether room reflections are an integral part of stereo and multichannel. If yes then not all reflections can be considered bad. Good read: http://www.aes.org/e-lib/download.cf...86&name=harman

Markus

"In science, contrary evidence causes one to question a theory. In religion, contrary evidence causes one to question the evidence." - Floyd Toole
markus767 is online now
post #13415 of 13426 Old Today, 08:44 AM
Advanced Member

toofast68's Avatar

Join Date: Nov 2007
Location: NorthEast Ohio, USA
Posts: 972
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Liked: 19
Quote:
Originally Posted by markus767 View Post
Waterfall doesn't look like there's 60Hz hum. Do you hear anything?

Also try looking at the spectrum of the noise floor:

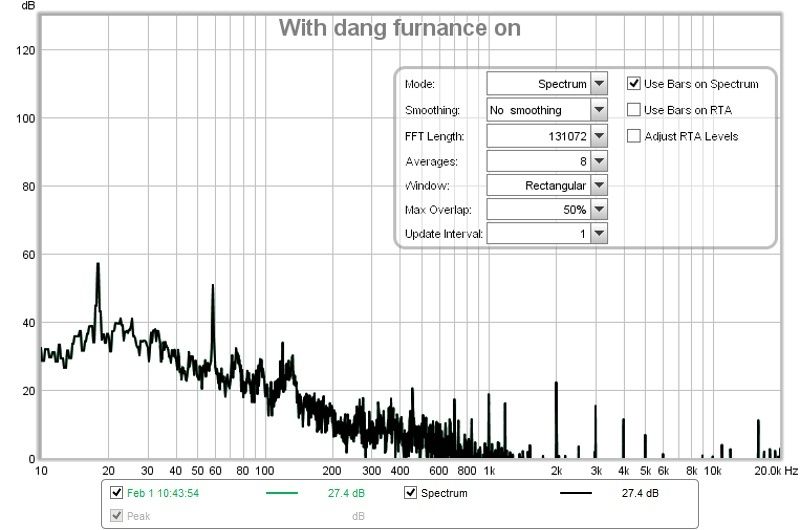

So once again I am learning how to interpret everything, but to me, it looks like I do have something going on at 60 hz - I can most certainly hear furnace noise - I will shut down system if my wife does not kill me and measure again....but I have no idea if furnace noise is that low.


toofast68 is online now
post #13416 of 13426 Old Today, 08:52 AM
AVS Special Member

Brian Fineberg's Avatar

Join Date: Feb 2002
Posts: 4,280
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 916 Post(s)
Liked: 985
Quote:
Originally Posted by markus767 View Post
^
There is no simple answer to this.

The audibility of reflections depends on the number of reflections, their direction, spectral content and delay. Furthermore it depends on the signal itself. Reflections of percussive sounds are easier to hear than reflections of instruments playing sustained sounds, e.g. violins.
Some reflections are "grouped" by our hearing. Although their individual level is low and doesn't show up as significant spikes in graphs, their perceived level is high.

Then there's the question whether room reflections are an integral part of stereo and multichannel. If yes then not all reflections can be considered bad. Good read: http://www.aes.org/e-lib/download.cf...86&name=harman
Nvm. I am thinking of ETC
Brian Fineberg is online now
post #13417 of 13426 Old Today, 09:25 AM
AVS Special Member

markus767's Avatar

Join Date: Apr 2009
Posts: 5,982
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 1273 Post(s)
Liked: 508
^
Sorry Brian but your messages are too cryptic.

Markus

"In science, contrary evidence causes one to question a theory. In religion, contrary evidence causes one to question the evidence." - Floyd Toole
markus767 is online now
post #13418 of 13426 Old Today, 09:46 AM
AVS Special Member

AustinJerry's Avatar

Join Date: Jan 2003
Location: Austin, Texas
Posts: 8,603
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 1670 Post(s)
Liked: 1036
Quote:
Originally Posted by Brian Fineberg View Post
What is ideal to have the impulse below -20? -15?

Sorry I'm not wording it correctly
Brian, the target referenced in the guide is to reduce reflections within the first 20ms below -20dB. There is nothing magic about this guideline, it is just something to shoot for.
AustinJerry is online now
post #13419 of 13426 Old Today, 10:16 AM
AVS Special Member

cfraser's Avatar

Join Date: Aug 2002
Location: Toronto area, Canada
Posts: 1,321
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Liked: 51
Quote:
Originally Posted by toofast68 View Post
So once again I am learning how to interpret everything, but to me, it looks like I do have something going on at 60 hz - I can most certainly hear furnace noise - I will shut down system if my wife does not kill me and measure again....but I have no idea if furnace noise is that low.
Don't know if it'll give you some further thoughts... When my furnace is on, the noise through the floor vents is very low-frequency, and really screws up the lowest end of the waterfall. I can barely hear it really, I just hear the furnace motor and the air flow a bit...getting old, the lowest freqs the subs can reproduce mostly evade me. So yes, I do turn the furnace off when making measurements, it's just too "random" on/off. The noise through the cold air return vent is much louder (to me), I do have one of those in the HT room and put a panel in front of it that helps an awful lot while still allowing airflow. Edit: my furnace and gas hot water tank are *right below* my MLP. Due to new safety/venting building code requirements, the new gas hot water heater I got just before starting with REW is much MUCH louder than my previous one...I can hear it more than the furnace even, the supposedly high efficiency burner makes a very audible LF sound...JIC you have one of those too.

Another thing that shows up for me is the fridge. This shows up as a small bump at 59.something Hz, just like on your graph. I am close enough that I can hear the largest fridge's compressor run, when everything else is quiet. I think part of the picked-up noise is from the very heavy fridge being on a suspended floor, as is my HT room. I thought some of the vibration may be going through the floor, so I tried isolating the mic stand (as I think was suggested in the Audyssey measurement guide, not Jerry's, I use the same stand for both): no diff really. I sometimes turn that fridge off when making more "serious"/baseline measurements like noise floor. I have forgotten to turn the fridge back on too many times as well...did I mention getting old?

Edit: what I meant by my ramblings is we get used to "normal" house sounds, they all make some, so you have to get very critical when trying to determine what some anomalous reading might be.

Last edited by cfraser; Today at 10:27 AM.
cfraser is online now
post #13420 of 13426 Old Today, 10:59 AM
AVS Special Member

Brian Fineberg's Avatar

Join Date: Feb 2002
Posts: 4,280
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 916 Post(s)
Liked: 985
Quote:
Originally Posted by AustinJerry View Post
Brian, the target referenced in the guide is to reduce reflections within the first 20ms below -20dB. There is nothing magic about this guideline, it is just something to shoot for.
Exactly what I wad looking for. Than you. Sorry I couldn't put into writing what I was thinking You figured it out
Brian Fineberg is online now
post #13421 of 13426 Unread Today, 11:09 AM
Advanced Member

artur9's Avatar

Join Date: Mar 2013
Location: near philly
Posts: 877
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 121 Post(s)
Liked: 52
Quote:
Originally Posted by toofast68 View Post
As for treatment, I have been spending a ton of time trying to figure out a plan vs. just randomly tossing stuff in the room. Is this the thread to work on the treatments, or am I better off starting a "new thread".
There is an Acoustics Treatment Thread.
artur9 is online now
post #13422 of 13426 Unread Today, 11:17 AM
Advanced Member

artur9's Avatar

Join Date: Mar 2013
Location: near philly
Posts: 877
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 121 Post(s)
Liked: 52
Quote:
Originally Posted by Selden Ball View Post
That's often caused by power lines running parallel to preamp or speaker cables. It can be particularly frustrating if the power lines involved are those feeding the house.
I don't think that particular hum is electronics related at all. I don't see or feel the speaker cones moving.

As mentioned later it might be the ductwork is tuned just so to drive me batty.

OTOH, I do get a hum like you mention from the single outlet in my "wiring closet/equipment closet" if I'm not super careful.
artur9 is online now
post #13423 of 13426 Unread Today, 11:21 AM
Advanced Member

artur9's Avatar

Join Date: Mar 2013
Location: near philly
Posts: 877
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 121 Post(s)
Liked: 52
Quote:
Originally Posted by toofast68 View Post
Hummmmm.....ok...so what you are saying is that if I am just sitting there with everything OFF, I will still get that 60hz spike. Is there a way to measure the room to verify that.
Not at all. Least I don't think so. That was in response to a comment about a hum in my room.

I have this fantasy about getting my noise floor to 25dB when everything in the house is off (fridge, etc). Never going to happen but spurious noises remind me of just how fantastical my fantasy is
artur9 is online now
post #13424 of 13426 Unread Today, 11:34 AM
Advanced Member

artur9's Avatar

Join Date: Mar 2013
Location: near philly
Posts: 877
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 121 Post(s)
Liked: 52
Quote:
Originally Posted by cfraser View Post
I sometimes turn that fridge off when making more "serious"/baseline measurements like noise floor. I have forgotten to turn the fridge back on too many times as well...did I mention getting old?
I had to throw out a month's freezer load because of such a measurement mishap. One of these days I'ld like to contribute a pilot check list to AustinJerry's guide.


  1. Kick everyone out of the house, including dogs
  2. Turn off furnace
  3. turn off fridge
  4. snack to prevent stomach grumbling
  5. ...
  6. turn fridge on
  7. turn furnace on
artur9 is online now
post #13425 of 13426 Unread Today, 11:48 AM
AVS Special Member

LastButNotLeast's Avatar

Join Date: Feb 2007
Location: 08077
Posts: 5,125
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 408 Post(s)
Liked: 330
In preparation for replacing my first generation Pioneers with Fusion 8 Alchemies, I ran REW on my center speaker only. Thanks (?) to the recent discussion about distortion, I looked at that tab and discovered this:





A great many sweeps later, the culprit turned out to be "Sound Retriever." Turning it off gave me this:



Take home lesson for Pioneer AVR owners: TURN OFF S-RTRV!

Michael

Downloadable FREE demo discs:
http://www.avsforum.com/t/1475769/de...ently-authored

Did you really need to quote that entire post in your reply?
LastButNotLeast is offline
post #13426 of 13426 Unread Today, 11:59 AM
AVS Special Member

LastButNotLeast's Avatar

Join Date: Feb 2007
Location: 08077
Posts: 5,125
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 408 Post(s)
Liked: 330
For those using REW and Java instead of ASIO (for one reason or another ) and HDMI, I have found an easy way to get signals to one speaker at a time.
I've mentioned Equalizer-APO before because of its eq capabilities, but a feature has been added that provides this function: COPY.

For example, to get output only to the subs, edit the config.txt file:

Copy: SUB=L L=0.0 R=0.0

For center channel only (I just turn the subs off manually, but you can probably add SUB=0.0; guess I'll have to try that next time. ):

Copy: C=L L=0.0 0.0

You can even check your right surround!:

Copy: RR=L L=0.0 R=0.0

Very handy!

http://sourceforge.net/p/equalizerap...Documentation/

Oh, and it also works really well with REW for eq.


Michael

Downloadable FREE demo discs:
http://www.avsforum.com/t/1475769/de...ently-authored

Did you really need to quote that entire post in your reply?
LastButNotLeast is offline
