GIK TriTraps - will they help this response?

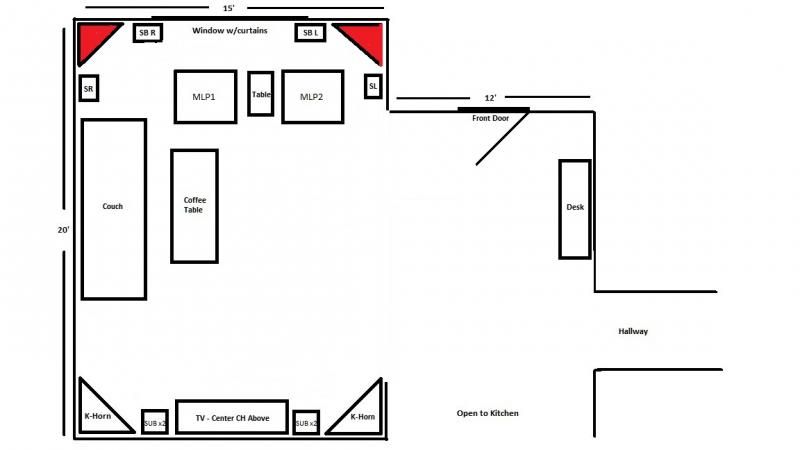

Thinking of getting some GIK Tri-Traps to go in the back of my living room, here:

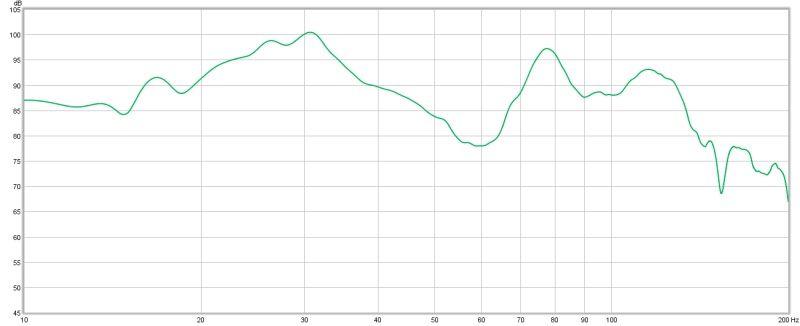

Think they would do anything at all to my 60hz null?

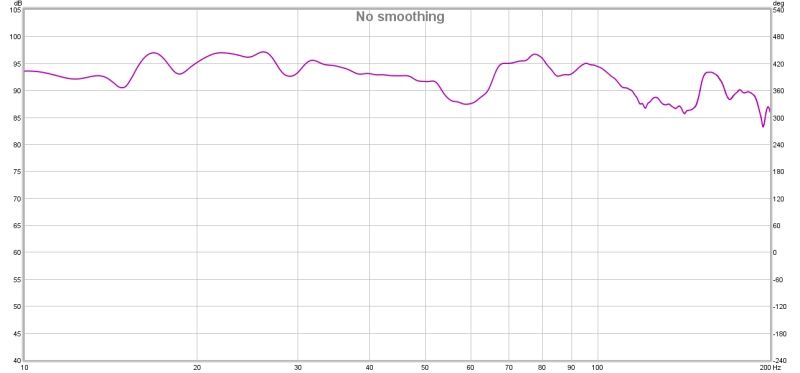

Same null, post-Audyssey:

Alan P is online now
Sponsored Links
Advertisement

post #2 of 11 Old 08-06-2014, 02:19 PM
AVS Addicted Member

Bill Fitzmaurice's Avatar

Join Date: Nov 2009
Location: New Hampshire
Posts: 10,173
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 1675
Quote:
Originally Posted by Alan P View Post
Thinking of getting some GIK Tri-Traps to go in the back of my living room
Think they would do anything at all to my 60hz null?
Probably not. A null is caused by a reflected wave meeting the original wave 180 degrees out of phase at the point where the null is measured. 180 degrees out of phase is 1/2 wavelength, so there's likely a 1/4 wavelength distance either between the source and a boundary or between the LP and a boundary. 1/4 wavelength at 60Hz. is 4.7 feet. It's that distance you should be searching out with respect to the mic and/or sub position relative to the walls.

Bill Fitzmaurice Loudspeaker Design

The Laws of Physics aren't swayed by opinion.
Bill Fitzmaurice is offline
post #3 of 11 Old 08-06-2014, 03:32 PM - Thread Starter
AVS Special Member

Alan P's Avatar

Join Date: Jan 2003
Location: Rapid City, South Dakota
Posts: 2,833
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 765 Post(s)
Liked: 413
Thanks Bill, that's what I thought would probably be the answer.

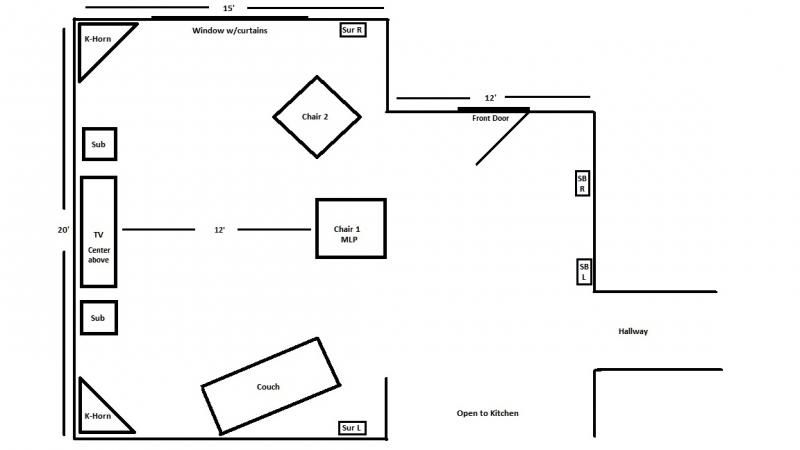

Let me ask you this; I used to have my living room set up in the config below. However, this was before I had 4 PSA subs to try to integrate. If I put it back this way, with the 2 subs by the TV as-is, and the 2 additional subs in the corners to either side of the MLP, do you see any major issues? Any thoughts on where the 4 subs would be best located in this config??

It's a lot of work to switch it back, but if it's going to net better bass I'm willing to give it a go. I know it provides better imaging from the KHorns. The only reason I changed it was WAF anyways.

Alan P is online now
post #4 of 11 Old 08-06-2014, 04:02 PM
Senior Member

Join Date: Jul 2014
Location: Canada
Posts: 464
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 205 Post(s)
Liked: 69
Quote:
Originally Posted by Bill Fitzmaurice View Post
Probably not. A null is caused by a reflected wave meeting the original wave 180 degrees out of phase at the point where the null is measured. 180 degrees out of phase is 1/2 wavelength, so there's likely a 1/4 wavelength distance either between the source and a boundary or between the LP and a boundary. 1/4 wavelength at 60Hz. is 4.7 feet. It's that distance you should be searching out with respect to the mic and/or sub position relative to the walls.
Agreed!
Garidy is offline
post #5 of 11 Old 08-06-2014, 04:19 PM
Senior Member

Join Date: Jul 2014
Location: Canada
Posts: 464
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 205 Post(s)
Liked: 69
Here's a quick depiction. I used ms paint to make the changes so I was limited. Angle the chairs in at 45 degree s.
Attached Thumbnails
Click image for larger version

Name:	LivingRoom_zps4c4b17dc 2.jpg
Views:	21
Size:	44.3 KB
ID:	200305   Click image for larger version

Name:	LivingRoomTraps_zps3d347956 i.jpg
Views:	25
Size:	45.5 KB
ID:	200313
Garidy is offline
post #6 of 11 Old 08-06-2014, 04:30 PM - Thread Starter
AVS Special Member

Alan P's Avatar

Join Date: Jan 2003
Location: Rapid City, South Dakota
Posts: 2,833
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 765 Post(s)
Liked: 413
Good ideas there Garidy! I don't think the second one would fly with the wife, but the first one probably will. However, I do love my recliner and would be sad if it wasn't the MLP.

Are these pics just to demonstrate how to be in the correct position for the KHorns? Or, are these somehow related to bass as well??
Alan P is online now
post #7 of 11 Old 08-06-2014, 04:57 PM
AVS Addicted Member

Bill Fitzmaurice's Avatar

Join Date: Nov 2009
Location: New Hampshire
Posts: 10,173
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 1675
Quote:
Originally Posted by Alan P View Post
Thanks Bill, that's what I thought would probably be the answer.

Let me ask you this; I used to have my living room set up in the config below. However, this was before I had 4 PSA subs to try to integrate. If I put it back this way, with the 2 subs by the TV as-is, and the 2 additional subs in the corners to either side of the MLP, do you see any major issues? Any thoughts on where the 4 subs would be best located in this config??

It's a lot of work to switch it back, but if it's going to net better bass I'm willing to give it a go. I know it provides better imaging from the KHorns. The only reason I changed it was WAF anyways.

That arrangement looks better mainly because the LP is much further away from the rear wall. BTW, where are you crossing at? With KHorns I'd almost think no higher than 50Hz.

Bill Fitzmaurice Loudspeaker Design

The Laws of Physics aren't swayed by opinion.
Bill Fitzmaurice is offline
post #8 of 11 Old 08-06-2014, 05:34 PM
Senior Member

Join Date: Jul 2014
Location: Canada
Posts: 464
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 205 Post(s)
Liked: 69
Quote:
Originally Posted by Alan P View Post
Good ideas there Garidy! I don't think the second one would fly with the wife, but the first one probably will. However, I do love my recliner and would be sad if it wasn't the MLP.

Are these pics just to demonstrate how to be in the correct position for the KHorns? Or, are these somehow related to bass as well??

Just some rule of thumb stuff that's aimed providing a reasonable experience for all and not just the one super sweet spot...
Garidy is offline
post #9 of 11 Old 08-06-2014, 09:04 PM - Thread Starter
AVS Special Member

Alan P's Avatar

Join Date: Jan 2003
Location: Rapid City, South Dakota
Posts: 2,833
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 765 Post(s)
Liked: 413
Quote:
Originally Posted by Bill Fitzmaurice View Post
That arrangement looks better mainly because the LP is much further away from the rear wall. BTW, where are you crossing at? With KHorns I'd almost think no higher than 50Hz.
Currently crossed at 80hz...but I'm sure if I do the different setup and have 2 good corners it will help my KHorns bass response immensely.
Alan P is online now
post #10 of 11 Old 08-08-2014, 08:11 PM
AVS Special Member

jbrown15's Avatar

Join Date: Nov 2005
Location: Vancouver B.C.
Posts: 6,500
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 1188 Post(s)
Liked: 1180
Alan, I was almost about to buy some tri-corner bass traps for my room until I started to do a little research and realized that the really won't do much for low bass.
Then I was pointed in the direction of this thread.
http://www.gearslutz.com/board/bass-...absorbers.html


The company that I'm getting some acoustical panels from is going to attempt to build some of these limp mass bass absorbers that I will probably end up trying.
jbrown15 is online now
post #11 of 11 Old 08-08-2014, 08:42 PM - Thread Starter
AVS Special Member

Alan P's Avatar

Join Date: Jan 2003
Location: Rapid City, South Dakota
Posts: 2,833
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 765 Post(s)
Liked: 413
Thanks jbrown, but as you might guess from my response in that DIY thread, the point may be moot.

If i reorient the furniture (where I expect to get a much better response), I'll have even more room for Stonehenges!
Alan P is online now
