post #181 of 208 Old 12-16-2012, 03:56 PM
Member

Firepr00f's Avatar

Join Date: Dec 2012
Posts: 76
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Liked: 25
Quote:
Originally Posted by breynolds47 View Post

when i press these two buttons manually it does work. i do notice i have to give it a substantial amount of time between or the fav button does not work. if i had to guess i would say i need about one second after pushing guide to push the + button for it to work properly.

Sounds like you need to go into your programmed sequence and increase the delay between "button commands."
Firepr00f is offline
Sponsored Links
Advertisement

post #182 of 208 Old 12-16-2012, 05:04 PM
Member

breynolds47's Avatar

Join Date: Sep 2011
Posts: 28
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by Firepr00f View Post

Sounds like you need to go into your programmed sequence and increase the delay between "button commands."

is that the inter-key delay
breynolds47 is offline
post #183 of 208 Old 12-17-2012, 06:09 AM
Advanced Member

BPlayer's Avatar

Join Date: Nov 2003
Location: Thornhill, ON
Posts: 665
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 19
Yes, that would be it.
BPlayer is offline
post #184 of 208 Old 12-17-2012, 08:04 AM
Member

breynolds47's Avatar

Join Date: Sep 2011
Posts: 28
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
that one started out at 100ms . i then tried 500ms, 1000ms and 1500ms with no luck. not sure how high i should go with this or if the 1500 is more than enough.
breynolds47 is offline
post #185 of 208 Old 12-18-2012, 06:22 AM
Advanced Member

BPlayer's Avatar

Join Date: Nov 2003
Location: Thornhill, ON
Posts: 665
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 19
Try a very large number and work down to the point where is works consistently.
BPlayer is offline
post #186 of 208 Old 12-18-2012, 03:01 PM
AVS Special Member

jcalabria's Avatar

Join Date: May 2006
Location: Charlotte, NC
Posts: 4,263
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Liked: 52
Quote:
Originally Posted by breynolds47 View Post

is that the inter-key delay

Quote:
Originally Posted by BPlayer View Post

Yes, that would be it.

Quote:
Originally Posted by breynolds47 View Post

that one started out at 100ms . i then tried 500ms, 1000ms and 1500ms with no luck. not sure how high i should go with this or if the 1500 is more than enough.

Quote:
Originally Posted by BPlayer View Post

Try a very large number and work down to the point where is works consistently.

A large inter-key delay likely will make the remote seem "sluggish"... you generally want to keep it as low as possible (0ms if it will work that way, and it often does). A better option might be to add one or more dummy commands into the sequence between the desired commands. Could be any command that would not be valid at the moment from any device in the activity (you might even want to add a device to the activity that is not actually used in that activity.

Commercial AV Design Engineer, CTS-D Certified
TWC-Charlotte, 8640HDC/ODN 7.3.1_6
jcalabria is offline
post #187 of 208 Old 12-18-2012, 07:21 PM
Member

breynolds47's Avatar

Join Date: Sep 2011
Posts: 28
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by jcalabria View Post

A large inter-key delay likely will make the remote seem "sluggish"... you generally want to keep it as low as possible (0ms if it will work that way, and it often does). A better option might be to add one or more dummy commands into the sequence between the desired commands. Could be any command that would not be valid at the moment from any device in the activity (you might even want to add a device to the activity that is not actually used in that activity.

i tried short and long delays and nothing worked. i did not realize you could hit multiple buttons for the learn command as raw. i pushed guide and then fav on the original charter remote and that worked.
breynolds47 is offline
post #188 of 208 Old 03-01-2014, 11:16 AM
AVS Special Member

mtbdudex's Avatar

Join Date: May 2007
Location: SE Michigan
Posts: 5,152
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 77 Post(s)
Liked: 423
I put my DIY fix in this sticky also, as others may benefit to see it in a central location.

Issue: I have to press the "vol +" button really hard for it to raise the volume.
Quote:
Originally Posted by mtbdudex View Post

Update - Upon taking my 890 apart, 2 screws on outside back cover, then 2 screws on main logic board, instead of trying to "build up" the little silicone pushers that push onto the circuit board small contact buttons, I did something similar but much quicker and easier.

I decided to raise the circuit board so the button would have less travel to do, same effect.

So, I simply made a small washer from cardboard, a 12 can bottle cardboard.

I cut a small 1/4" by 1/4" square piece, used a dart to poke a hole in the center, then while the square piece was on the dart tip I simply trimmed it to a small round washer.
Non metallic, no danger of shorting anything.

For re-assembly, when I put the screw thru the main logic board, then I just pushed the small DIY cardboard washer onto it, the friction of the screw threads held the washer, and it so slightly propped up the circuit board upon final assy.

Did re-assembly, put battery in, re-boot....... and ta-da saved $100 at least from buying a replacement!

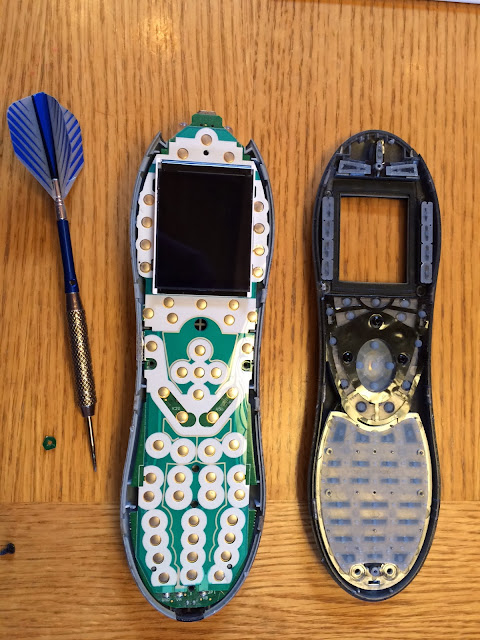

You can see work in progress here:

So, I give credit to this thread for inspiring my simple DIY fix, hope it help others.
steveting99 likes this.
mtbdudex is offline
post #189 of 208 Old 06-26-2014, 03:40 PM
Member

mjmcmahon67's Avatar

Join Date: May 2006
Location: Boise, ID
Posts: 190
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Liked: 47
Quote:
Originally Posted by mtbdudex View Post
I put my DIY fix in this sticky also, as others may benefit to see it in a central location.<br><br>
Issue: I have to press the "vol +" button really hard for it to raise the volume.<br><div class="quote-container" data-huddler-embed="/t/1185807/harmony-890-repair#post_24425806" data-huddler-embed-placeholder="false"><span>Quote:</span>
<div class="quote-block">Originally Posted by <strong>mtbdudex</strong> <a href="/t/1185807/harmony-890-repair#post_24425806"><img alt="View Post" class="inlineimg" src="/img/forum/go_quote.gif"></a><br><br>
Update - Upon taking my 890 apart, 2 screws on outside back cover, then 2 screws on main logic board, instead of trying to "build up" the little silicone pushers that push onto the circuit board small contact buttons, I did something similar but much quicker and easier.<br><br>
I decided to raise the circuit board so the button would have less travel to do, same effect.<br><br>
So, I simply made a small washer from cardboard, a 12 can bottle cardboard.<br><br>
I cut a small 1/4" by 1/4" square piece, used a dart to poke a hole in the center, then while the square piece was on the dart tip I simply trimmed it to a small round washer.<br>
Non metallic, no danger of shorting anything.<br><br>
For re-assembly, when I put the screw thru the main logic board, then I just pushed the small DIY cardboard washer onto it, the friction of the screw threads held the washer, and it so slightly propped up the circuit board upon final assy.<br><br>
Did re-assembly, put battery in, re-boot....... and ta-da saved $100 at least from buying a replacement!<br><br>
You can see work in progress here:<br><img alt="890-fix.JPG" class="bbcode_img" src="https://lh6.googleusercontent.com/-Kq-wrqXcA7s/UxIvVDNL5lI/AAAAAAAARQo/jLeKUgm4XHM/s640/890-fix.JPG"><br><br>
So, I give credit to this thread for inspiring my simple DIY fix, hope it help others.</div>
</div>
mdavej -

hoping you might be able to help clarify the process to convert an OEM discrete code to a PRONTO code. Here's the setup:

I just added an RX-A3030 to my home theater and want a quick way to enable or disable DRC for late-night watching. I found a discrete code for the RX-A3030 here: http://www.awe-europe.com/ir_232.html

The discrete code for on is: 7E81-740B
for off: 7E81-750A

I'm just not following how you get the PRONTO?

Any help would be greatly appreciated!

Mike
mjmcmahon67 is offline
post #190 of 208 Old 06-26-2014, 04:08 PM - Thread Starter
AVS Addicted Member

mdavej's Avatar

Join Date: Sep 2006
Posts: 11,223
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 1108 Post(s)
Liked: 601
Quote:
Originally Posted by mjmcmahon67 View Post
mdavej -

hoping you might be able to help clarify the process to convert an OEM discrete code to a PRONTO code. Here's the setup:

I just added an RX-A3030 to my home theater and want a quick way to enable or disable DRC for late-night watching. I found a discrete code for the RX-A3030 here: http://www.awe-europe.com/ir_232.html

The discrete code for on is: 7E81-740B
for off: 7E81-750A

I'm just not following how you get the PRONTO?

Any help would be greatly appreciated!

Mike
Usually you need special software like IRScrutinizer and knowledge of the protocol, device, sub-device, etc. But in the case of Yamaha codes, there's a conversion tool on that very page. Just plug in your code (using space instead of dash between the two groups of numbers):

http://www.awe-europe.com/irhex_converter.html
mdavej is offline
post #191 of 208 Old 07-01-2014, 03:38 PM
Member

mjmcmahon67's Avatar

Join Date: May 2006
Location: Boise, ID
Posts: 190
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Liked: 47
Quote:
Originally Posted by mdavej View Post
Usually you need special software like IRScrutinizer and knowledge of the protocol, device, sub-device, etc. But in the case of Yamaha codes, there's a conversion tool on that very page. Just plug in your code (using space instead of dash between the two groups of numbers):

http://www.awe-europe.com/irhex_converter.html
thanks Dave - I got the necessary codes and submitted them to Logitech so that I can put them on the remote. They got back to me today so I'll be testing tonight.

Fingers crossed!

Mike
mjmcmahon67 is offline
post #192 of 208 Old 07-11-2014, 05:40 PM
Advanced Member

cherry ghost's Avatar

Join Date: Feb 2006
Location: Chicago
Posts: 847
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 10
Is "Hex to Harmony Rev2" available anywhere? link in post 3 doesn't work.
cherry ghost is offline
post #193 of 208 Old 07-16-2014, 09:14 AM
Senior Member

Topher's Avatar

Join Date: Jan 2005
Posts: 204
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked: 12
I can send it to you if you PM me your email addy. The zip file's too big to attach it.
Topher is offline
post #194 of 208 Old 07-16-2014, 10:54 AM
Advanced Member

cherry ghost's Avatar

Join Date: Feb 2006
Location: Chicago
Posts: 847
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 10
Quote:
Originally Posted by Topher View Post
I can send it to you if you PM me your email addy. The zip file's too big to attach it.
pm sent

Thanks
cherry ghost is offline
post #195 of 208 Old 08-08-2014, 01:28 PM
Newbie

echriste's Avatar

Join Date: Sep 2003
Location: Tucson, AZ
Posts: 1
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 0
I would also like to get the "Hex to Harmony Rev2.zip" file. I, too, have found the link to this file does not work.
echriste is offline
post #196 of 208 Old 08-18-2014, 11:28 AM
Newbie

AllTheLights's Avatar

Join Date: Dec 2012
Posts: 11
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked: 10
Is there a good Harmony compatible IR device that would let me control something basic? I'm looking to turn an led light strip on when my tv turns on. It's an Ikea Dioder light, 12 V power.
AllTheLights is offline
post #197 of 208 Old 01-04-2015, 01:35 AM
Member

col forbin's Avatar

Join Date: Aug 2012
Posts: 15
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Very helpful thread, thanks!
col forbin is offline
post #198 of 208 Old 01-07-2015, 04:34 PM
AVS Special Member

Kalani's Avatar

Join Date: Oct 2002
Location: Studio City, CA
Posts: 1,491
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 60 Post(s)
Liked: 21
Quote:
Originally Posted by AllTheLights View Post
Is there a good Harmony compatible IR device that would let me control something basic? I'm looking to turn an led light strip on when my tv turns on. It's an Ikea Dioder light, 12 V power.
Find an IR-controlled power outlet, power strip, or light switch (if you have a switched power outlet available), and use your Harmony to control that. I use my Harmony to control the LR lights, since I picked up a Lutron Maestro IR dimmer switch at Home Depot.

http://www.lutron.com/en-US/Products.../Overview.aspx
Kalani is offline
post #199 of 208 Old 02-13-2015, 01:22 PM
Senior Member

BoulderGeek's Avatar

Join Date: Nov 2004
Posts: 426
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 10
Might anyone have an idea how I can create device punch-throughs on a Harmony Smart Control for an HD tuner card (& remote) in a Windows 7 HTPC? I have one of my devices set as a Windows 7 PC, but when i try to assign buttons to Media Center options, if doesn't work.

I'd like Channel + and -, navigation controls, OK and info. Volume is a punch through for the amp.

I haven't found how to edit the PC deice to be a specific kind of interface card. I have the actual remote for the card, which works fine and can be cloned to a URC remote.

Anyone else doing this with Harmony Smart Control, Touch or Ultimate?
BoulderGeek is offline
post #200 of 208 Old 02-13-2015, 01:48 PM - Thread Starter
AVS Addicted Member

mdavej's Avatar

Join Date: Sep 2006
Posts: 11,223
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 1108 Post(s)
Liked: 601
Do you still have the option to create an activity Manually? If so, then you can specify the keys the way you described. Alternately, you could learn the amp vol commands to the vol buttons in your PC device.
mdavej is offline
post #201 of 208 Old 02-22-2015, 04:44 AM
AVS Special Member

kgveteran's Avatar

Join Date: Apr 2004
Location: Rochester NY
Posts: 6,014
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 142 Post(s)
Liked: 81
How do i stop Harmony7 version so i can run MyHarmony on the same computer.

I thought it would be simply running in task manager, but thats not the case, i literally had to uninstall the older version to run the newer version.....

Reason is, i setup alot of remotes and depending on the remote, like my 1100, i use the old software

Thanx

Last edited by kgveteran; 02-22-2015 at 04:48 AM.
kgveteran is online now
post #202 of 208 Old 03-10-2015, 08:00 AM
Member

Join Date: Sep 2014
Location: Andromeda
Posts: 82
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Liked: 10
Does anybody know if it's possible to setup a sequence on the Ultimate that allows me to press the 'listening mode' button and it automatically changes to the one that I assign it? I just don't want to have to shuffle through each listening mode until it gets to the one that I want.

Any help would be great. Thank you.

Onkyo TX-NR636 (5.1.2) | Proficient Audio AW525 (L&R) | Proficient Audio CC550 | Proficient Audio GS10 (LFE) | Yamaha NS-IC400 (Surrounds) | Harmony Ultimate | Apple TV (3rd Gen) | Denon BDP-1611UD | Sony BDP-S580 | Xbox One | Sony Bravia 46"
MasterAudio is offline
post #203 of 208 Old 03-10-2015, 08:41 AM - Thread Starter
AVS Addicted Member

mdavej's Avatar

Join Date: Sep 2006
Posts: 11,223
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 1108 Post(s)
Liked: 601
Quote:
Originally Posted by MasterAudio View Post
Does anybody know if it's possible to setup a sequence on the Ultimate that allows me to press the 'listening mode' button and it automatically changes to the one that I assign it? I just don't want to have to shuffle through each listening mode until it gets to the one that I want.

Any help would be great. Thank you.
Tell support you need the discrete commands for those modes added to your account. If they can't find them, I'll post the codes.
mdavej is offline
post #204 of 208 Old 03-10-2015, 09:31 PM
Member

Join Date: Sep 2014
Location: Andromeda
Posts: 82
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Liked: 10
Quote:
Originally Posted by mdavej View Post
Tell support you need the discrete commands for those modes added to your account. If they can't find them, I'll post the codes.
I've been searching for them in the community forums over at "my harmony" and I can't seem to find any discrete commands for my Onkyo TX-NR636.

Would you mind posting the codes? It would be very helpful. Thank you.

Onkyo TX-NR636 (5.1.2) | Proficient Audio AW525 (L&R) | Proficient Audio CC550 | Proficient Audio GS10 (LFE) | Yamaha NS-IC400 (Surrounds) | Harmony Ultimate | Apple TV (3rd Gen) | Denon BDP-1611UD | Sony BDP-S580 | Xbox One | Sony Bravia 46"
MasterAudio is offline
post #205 of 208 Old 03-11-2015, 07:23 AM - Thread Starter
AVS Addicted Member

mdavej's Avatar

Join Date: Sep 2006
Posts: 11,223
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 1108 Post(s)
Liked: 601
Quote:
Originally Posted by MasterAudio View Post
I've been searching for them in the community forums over at "my harmony" and I can't seem to find any discrete commands for my Onkyo TX-NR636.

Would you mind posting the codes? It would be very helpful. Thank you.
Here are all the codes for that model. Open it up and see if you can find the mode commands you're looking for in the IR file on the Main tab under Listening Mode. Logitech support will need the command name and the PRONTO CODE for ID1 (assuming that's what you're using). If you need the commands for different zones, look on the respective tabs for those codes.

http://www.awe-europe.com/documents/...TR-C660All.zip

There is a way to do this entirely yourself if you have an older Harmony or cable TV remote on hand. Let me know if you're interested in trying that, and I can give you the procedure.
mdavej is offline
post #206 of 208 Old 03-11-2015, 09:22 AM
Member

Join Date: Sep 2014
Location: Andromeda
Posts: 82
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Liked: 10
Quote:
Originally Posted by mdavej View Post
Here are all the codes for that model. Open it up and see if you can find the mode commands you're looking for in the IR file on the Main tab under Listening Mode. Logitech support will need the command name and the PRONTO CODE for ID1 (assuming that's what you're using). If you need the commands for different zones, look on the respective tabs for those codes.

http://www.awe-europe.com/documents/...TR-C660All.zip

There is a way to do this entirely yourself if you have an older Harmony or cable TV remote on hand. Let me know if you're interested in trying that, and I can give you the procedure.
Thank you so much for all of your help. I'm going to give this a try and see what happens.

Onkyo TX-NR636 (5.1.2) | Proficient Audio AW525 (L&R) | Proficient Audio CC550 | Proficient Audio GS10 (LFE) | Yamaha NS-IC400 (Surrounds) | Harmony Ultimate | Apple TV (3rd Gen) | Denon BDP-1611UD | Sony BDP-S580 | Xbox One | Sony Bravia 46"
MasterAudio is offline
post #207 of 208 Old 03-30-2015, 07:14 PM
Advanced Member

jmystikcfl's Avatar

Join Date: Feb 2005
Location: Orlando, FL
Posts: 533
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 12
I'm trying to get the speaker toggle programmed but not having any luck. I have a Sony KDL-46XBR6 TV. It supports the feature through the menus, but there's no toggle button on the factory remote. I currently have a Harmony 880 that I use 7.7 on a Windows PC to program and a Harmony Ultimate Home setup that's on a separate Harmony account. The plan was to do whatever I needed to do on the 880 to get it working, then learn the command on the Ultimate Home remote.

So far I've tried using the Pronto Hex input from the first page of this thread, but I can't seem to find the proper hex code anywhere. I've also tried adding various Sony models to the Harmony, but none of them seem to have the button in the default setup and I can't add it to the device mode additional buttons. Any help would be greatly appreciated.
jmystikcfl is offline
post #208 of 208 Old 03-31-2015, 07:38 AM - Thread Starter
AVS Addicted Member

mdavej's Avatar

Join Date: Sep 2006
Posts: 11,223
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 1108 Post(s)
Liked: 601
Quote:
Originally Posted by jmystikcfl View Post
So far I've tried using the Pronto Hex input from the first page of this thread, but I can't seem to find the proper hex code anywhere. I've also tried adding various Sony models to the Harmony, but none of them seem to have the button in the default setup and I can't add it to the device mode additional buttons. Any help would be greatly appreciated.
If the code I posted doesn't work, then your model TV has no discrete code for speaker toggle. My understanding is it only worked on rear projection and older anyway, not any LCD models that I'm aware of.
mdavej is offline
Sponsored Links
Advertisement

Reply Remote Control Area

Tags
Logitech Harmony 700 Rechargeable Remote With Color Screen



Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
