The very reason why I investigated the Cheese Slices is that someone on another forum claimed that the Cheese Slices would proof that AMD and NVidia do Motion Compensated Deinterlacing. Ok, but let's ignore that. You mentioned AnandTech, so let's look there:

(1) http://www.anandtech.com/show/2931/4


All of that is factually wrong. It is not heavily interlaced, it's just telecined, which is a relatively mild form of interlacing. It doesn't have *any* interlacing artifacts in it. By using IVTC you can restore the full progressive images. It is also not an unfair test. It just requires a good film mode and cadence detection.


Totally wrong. Both utterly fail, because the only way to pass this test is by fully (pixel-by-pixel) reproducing the original progressive frames. What the AnandTech screenshots actually show is that neither card is able to detect that the Cheese Slices are telecined film. Judgement: Failure.

(2) http://www.anandtech.com/show/4479/amd-a83850-an-htpc-perspective/5

Here AnandTech compares image quality of AMD vs. Intel video mode deinterlacers, and comes to the conclusion: "Except for a certain segment in the noise response section, it looks like the AMD algorithm works much better than Intel's for the Cheese Slices test". Which is exactly what I claimed and which you called into question: AnandTech was using the Cheese Slices here to judge/compare quality of different video mode deinterlacing algorithms. What AnandTech should *really* have done is post the original progressive frame in addition to the Intel and AMD DXVA output, and then write the conclusion: "Both AMD and Intel fail to detect that the Cheese Slices are telecined film content".

I do not blame AnandTech (at all) for coming to wrong conclusions, because they thought what everyone else thought (including me), namely that the Cheese Slices were natively interlaced video. But it's not. And I believe it's important to let everyone know that fact.

Or why don't we look at the first post in this thread. There you write:


That's all wrong. madVR can "deinterlace" (IVTC) the 1080i Slices into perfect progressive. Which proves that the very description you wrote is wrong and was misleading everyone into believing that these were natively interlaced test patterns. Because if they were natively interlaced, everything you wrote would be true.

---

Now I don't want to sound too negative. As I said before, the 1080i Cheese Slice test patterns are still useful. People just need to know what they really are and how to judge results. It is possible that DXVA output with truely interlaced video mode Cheese Slices wouldn't look much different from these telecined Cheese Slices, but it's hard to know for sure. The current DXVA output with the Cheese Slices could partially use IVTC. We can't know that because DXVA doesn't tell which algorithm it uses, and what makes it even more complicated is that DXVA might change the algorithm (IVTC vs. video mode deinterlacing) per pixel. So only natively interlaced Cheese Slices would allow us to make sure IVTC is definitely not involved and we're really judging video mode deinterlacing quality. And then, really good deinterlacing algorithms would work better with natively interlaced content as opposed to telecined content.

Hmm, interesting arguments, and madshi is right. Cheese Slices was created from a 30fps *film* by 2-2 pulldown:

F1 F2 F3 .... (30fps) --> T1 B1 T2 B2 T3 B3 ...., where F1 = T1 + B1, etc. (F = frame, T = top field, B = bottom field)

(Some NTSC videos were created in this way, e.g. Friends and Oklahoma! (1955), according to wiki). So the true purpose of Cheese Slice is testing the graphics card's ability to detect 2-2 cadence. If the graphics card detects the 2-2 cadence correctly, then the original pattern will be restored perfectly. MadVR can inverse telecine it just fine when film-mode deinterlacing is forced, but can't detect the cadence automatically. None of the current graphics cards can detect it either under DXVA, so video-mode deinterlacing is always applied.

The correct way to create a test pattern for video-mode deinterlacing is start with a 60fps sequence (= the reference pattern) and discard top or bottom field of each frame (that should not be difficult for blaubart?):

F1 F2 F3 F4 F5 .... (60fps) --> T1 B2 T3 B4 T5 B6 ....

B1, T2, B3, T4, B5, T6, etc. are discarded and we want to see how close to the original the graphics card can create a 60fps pattern.

Nevertheless Cheese Slice is still useful (for me) to test video-mode deinterlacing quickly. It is Cheese Slices that I first run when something looks wrong.

Yeah, madshi said everything clearly.
Edited by renethx - 1/19/13 at 6:38am

reneThx.

So, does anybody have enough avisynth knowledge to create natively interlaced video versions of the 1080i Cheese Slices (just h264 1080i60 would be enough, IMHO)? I think that would be really interesting. I'd love to see if the DXVA results would be any different. Maybe yes, maybe no, I'm not sure.

I think it would be ok if they ran twice as fast (that would be the easiest solution, I guess). Maybe a workaround would be to concatenate the Slices to make sure they have the same runtime despite the faster movements. I have to admit, I personally don't have enough knowledge/experience to do this without losing too much time.

(@renethx, JFYI: madVR currently has no automatic film vs. video detection built in, that's why you have to manually force film mode. I plan to add auto film vs video detection in a future version. Hopefully it will work better than what DXVA does...)

This should first split the progressive frames into its fields, then select the top field of the first frame and the bottom of the second, and weave them again.

If i can figure out how to properly encode something like this, maybe i'll do it.

Ah, the wonders of avisynth. I guess at some point I should actually learn it...

Here is the final script i used:

Encoded in MeGUI with x264 using the "very slow" preset and crf 18, and here is the result:
http://files.1f0.de/samples/Slices NTSC 1080i60 h264 TFF.mp4

As expected, it runs faster now, because half of the fields have been dropped and the FPS increased. On madshi's suggestion, i looped the video once to give it back its original playtime.
Let me know what you think of the result.

I was trying to use EVR/DXVA via LAV splitter but it won't decode properly.



It also didn't play natively on my Mac, but does decode properly on Mplayer.



Is it because the encoding profile was High@L5.2?

Well i used x264s default settings, which apparently include 16 reference frames, which may cause issues on some crappy systems when using DXVA.
Works fine for me in LAV Splitter + LAV Video, renderer doesn't matter.

Thanks, Nevcairiel, I appreciate that!

When frame stepping through the DXVA output frames with the original telecined Cheese Slices I've noticed some interesting: There are always two DXVA output frames with the same "motion position". But they look quite different. I guess this does make a lot of sense because the telecined stream has always 2 fields from the same motion position. So I've taken screenshots of both DXVA output frames, when using the telecined Cheese Slices, for comparison with the new video mode Cheese Slices screenshots:

Progressive:
progressive

Vector Adaptive:
video -|- telecined 1 -|- telecined 2

Motion Adaptive:
video -|- telecined 1 -|- telecined 2

Adaptive:
video -|- telecined 1 -|- telecined 2

Bob:
video -|- telecined 1 -|- telecined 2

A few observations:

(1) It seems that with Vector Adaptive, Motion Adaptive and Bob deinterlacing, "video" results are quite similar to the *2nd* frame of the "telecined" results, while the *1st* frame of the "telecined" results is quite different. Practically this means when comparing video mode deinterlacing algorithm quality by using the "telecined" Cheese Slices, a lot depends on whether you choose to screenshot the 1st or the 2nd frame with identical motion position. This problem is gone when using the "video" test pattern.

(2) Generally, "video" results are quite similar to the "telecined" results, at least with my ATI card, which is probably good news because it means that the old Cheese Slice tests are still "somewhat" valid. It would be interesting to double check this with NVidia and Intel, just to be safe. The "video" results do show quite a bit more deinterlacing artifacts, though, compared to the "telecined" results, especially in the center section of the image.

(3) Very interesting is the 2nd output frame when using "Adaptive" deinterlacing with the telecined Cheese Slices. Here the 2nd output frame looks almost progressive! The 1st output frame looks horrible, though. So again the person making screenshots could randomly pick either the "good" or "bad" output frame, which is not good.

I'm not sure why you're so defensive about this. One thing is sure: The description in your first post is factually wrong, when talking about the original Cheese Slices (but correct when talking about the new encoding you made today). And I believe every single user thought that these test patterns were video mode. Nobody even had the idea it could be telecined content, simply because it makes no sense to create telecined test patterns to test video mode deinterlacing algorithms. It was a total accident that I discovered this. Btw, my nick is "madshi", not "mashdi".


Thanks. Looks good. Actually it looks better to me than nevcairiel's encoding because with nevcairiel's file I have some weird chroma artifacts that don't occur with yours. Guess x264 screwed up something there.

It would be great if you could rename the original 1080i Slices to something like "Telecined 2:2 Cheese Slices" and the new ones "Video Cheese Slices" or something like that, to make things clear to everybody. The SD Slices were always alright, I think.

I don't think interlaced encoding is a primary focus of the x264 developers, so who knows if it has some problems.
Was also my first time encoding interlaced, tbh.

"Crappy DXVA system 1" = AMD HD4600

"Crappy DXVA system 2" = Intel HD4000

The first is clearly crappy, i don't think the old 4xxx series could do 16 ref frames.
The seconds hardware is capable, you just need good software, like my decoders. I have a HD4000 myself and it works flawlessly on that one, on a HD3000 too.

But this is going OT now.

Ha, when using the new interlaced video, the diagonal lines in the centre of the test image turn to a chequerboard mush on my HD4000. The rest of the image looks roughly the same as in the old IVTC test video.

The pattern looks interlaced to me. Here's the upper left hand corner of frame 140.



Ron

@Ron, which pattern do you mean? The *original* Cheese Slices? It's 2:2 telecined, but every frame contains the bottom field of frame A and the top field of frame A + 1.

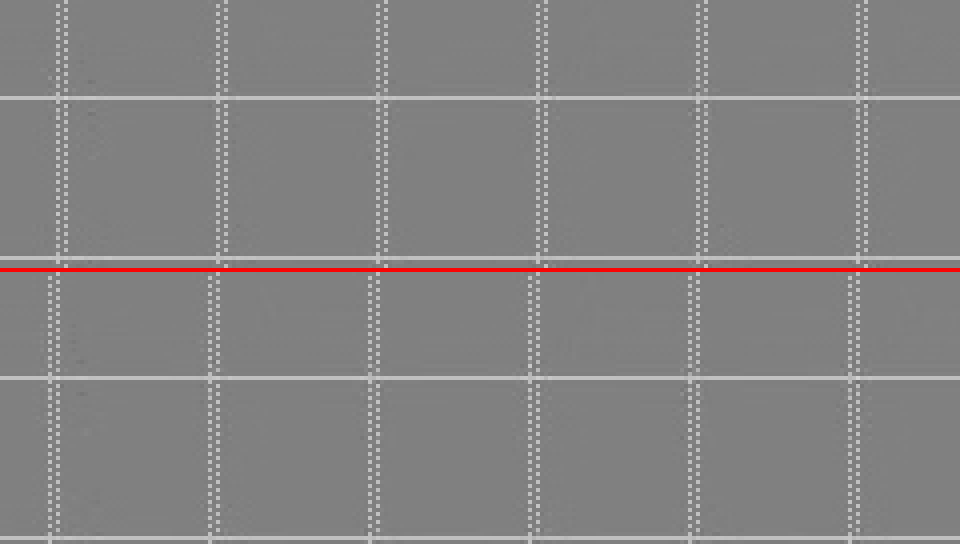

I'm looking at the 1080i@29.97 version from the first post of this thread. I think I see what you're getting at. Here's a pic of two consecutive frames (first frame on top with red line at the bottom and second frame below and motion to the left).



If you weave the bottom field from frame A with the top field from frame B, you'll get a solid vertical line. I don't think that's a 2:2 pulldown issue, but more of an incorrect depiction of constant velocity motion. Since the line moves 2 pixels between top field and bottom field, then the line in the same parity fields should move by 4 pixels (not 2 pixels as shown).

In other words the field motion velocity is twice the frame motion velocity (I think, this is one of those things that makes my head hurt).

Ron

I'm not sure I understand what you said. In any case, this definitely is 2:2 telecine. I have a PAL DVD movie sample which is encoded exactly the same way. Basically if you weave the correct fields together (= IVTC) you get perfect progressive output.

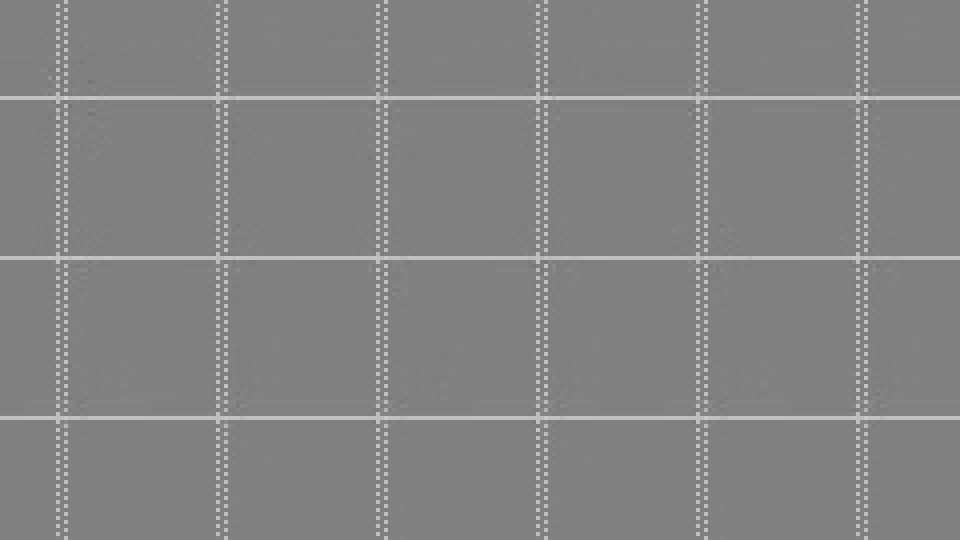

With PAL movies, the correct fields to weave are always in the same frame. If we weave the two fields of a frame with motion in "Slices", we get the first image I posted. It has motion from field to field, therefore it is interlaced.

BTW, I'm using the ancient (1996) MSSG reference decoder. It just outputs to files, so there is no graphics system involved. The decoder has an option to weave the two fields of a frame into one full size image, which is what I'm using.

http://www.mpeg.org/pub_ftp/mpeg/mssg/mpeg2v12.zip

Ron

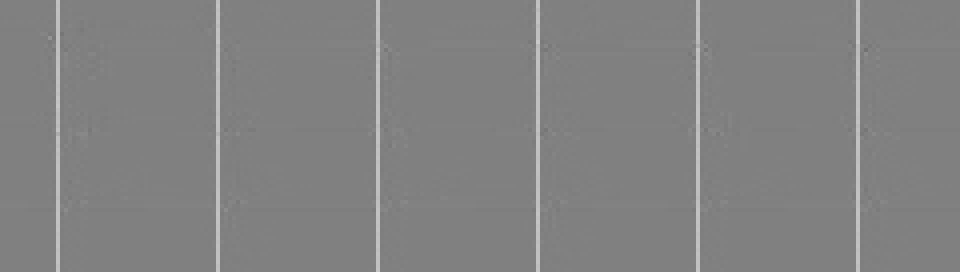

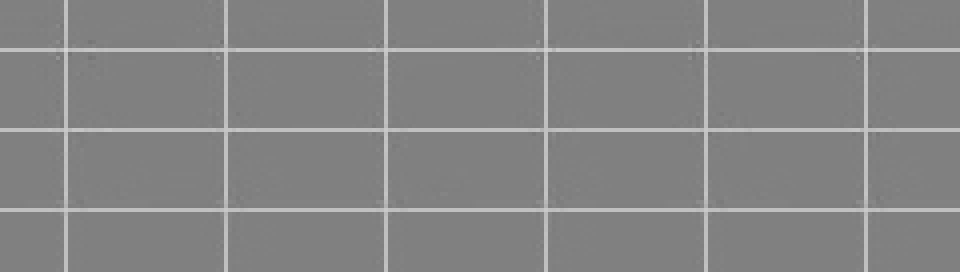

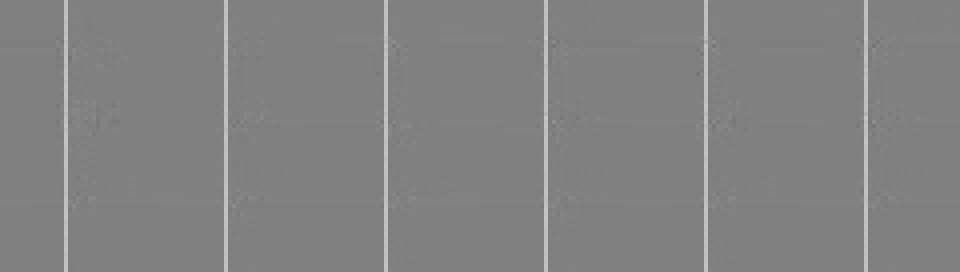

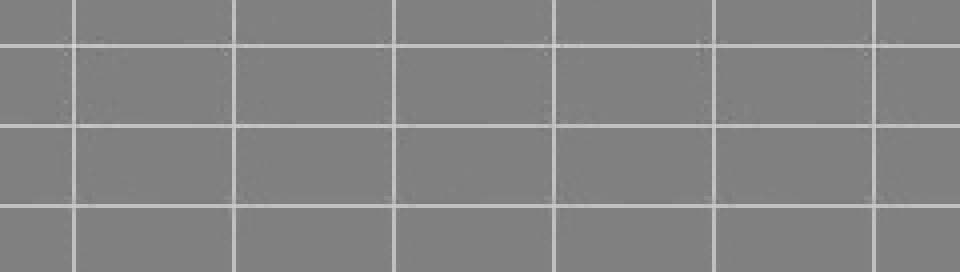

Here's a sequence of 4 fields (temporal order is top to bottom). The first two fields are from frame A and the second two fields are from frame B. There is motion from field 1 to field 2, but there is no motion from field 2 to field 3. We're (madshi and I) on the same page, we're just using different semantics. Madshi wants to invoke 2:2 pulldown (which I consider to be confusing and doesn't help blaubart fix the issue), but I say it's just an incorrect depiction of smooth (constant velocity) motion.






Ron

Is there a specification which defines that? Or an EBU recommendation or something? Or is that just your personal experience?

In my experience at least 99% of all PAL content has the correct fields to weave in the same frame. But to every rule there is an exception. As I said, I have a sample of a PAL DVD where the correct fields to weave together are *not* in the same frame, similar to the original Cheese Slices. Also, an IVTC algorithm which claims to support "any cadence" (e.g. for Anime sources) has to be very flexible, and should have no problem finding the correct fields to weave, even if they're spread over two frames, like with the original Cheese Slices. With hard-telecined 3:2 content it happens all the time that the correct fields to weave together are not in the same frame. So supporting this for PAL, too, is an automatic side effect of an "any cadence" IVTC algorithm.
Edited by madshi - 1/23/13 at 1:08am

That is incorrect. It works with any *software* decoder. It currently just doesn't work with native DXVA decoding, as I already told you before.


That is not true. I said that the original Cheese Slices should not be used to judge video mode deinterlacing quality, but that they might still be useful for other purposes. You actually agreed with me there. And you said nobody ever did use the Cheese Slices to judge video mode deinterlacing quality, anyway. Then I pointed you to AnandTech doing it in the past. Then you said, ooops, now you remember, but you always said they used the Cheese Slices wrong.

Furthermore after having compared telecined and video Cheese Slices DXVA deinterlacing results, I wrote:

> Generally, "video" results are quite similar to the "telecined" results, at least
> with my ATI card, which is probably good news because it means that the
> old Cheese Slice tests are still "somewhat" valid.

Which directly contradicts what you just said.


Am I? How about this:

http://madshi.net/cheese/filmVA2.png
http://madshi.net/cheese/filmA2.png

The first is Vector Adaptive Deinterlacing, the second is just Adaptive Deinterlacing (which in theory is much lower quality). In these screenshots it looks like Adaptive Deinterlacing is better than Vector Adaptive Deinterlacing. But that's not actually true in real life. With the telecined Cheese Slices, Adaptive Deinterlacing produces one good output frame, then one bad output frame etc. If you look at the good frames, they look better than Vector Adaptive Deinterlacing output, but the bad frames look worse. This is one negative side effect of the telecined encoding. This doesn't happen with proper video encoding.

I've already mentioned this before, but it seems you missed it. Or chose to ignore it...


I had been using Cheese Slices several times in the past, they've been in my "test patterns" folder for years. I've not the faintest idea how you came to the conclusion that I didn't try them at all. But then that's only one of many wrong conclusions you came to recently...


Anyway, I'm done replying to you, until you do your homework and learn the deinterlacing & IVTC basics (you really have some catching up to do there) and until you come out of your defensive corner and argue based on facts, instead of posting false claims about my intentions and making fun of madVR.
Edited by madshi - 1/23/13 at 1:30am
