Ben's "Craig's List" Home Theater - Page 2

I am envisioning you envisioning my basement like a scene from Silence of the Lambs...

Ahh 1983, the climax of American design prowess.

B.

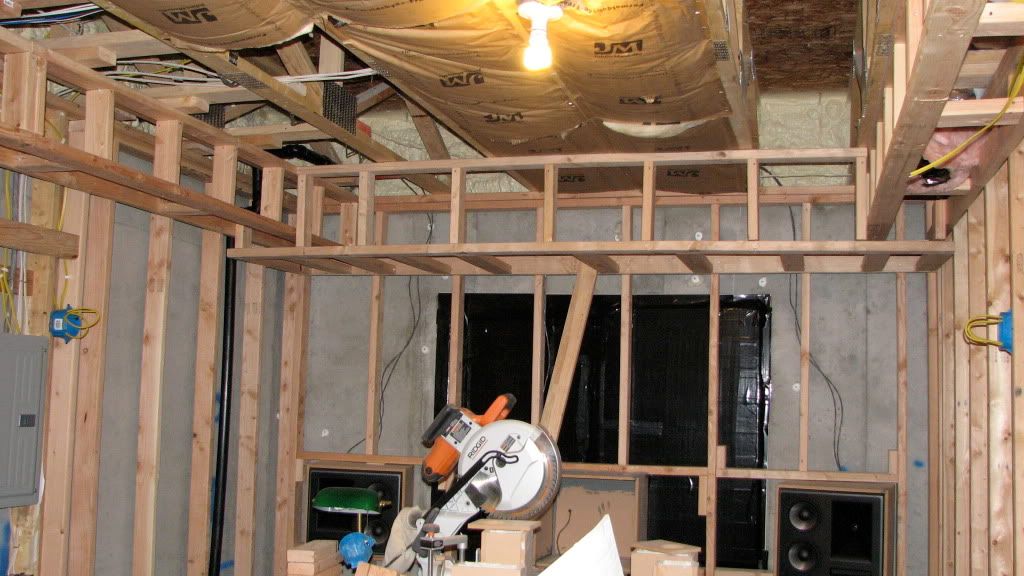

OK to the real stuff. I finally had a chance to get back in the basement and di@k with, er, diligently plan and construct my theater...maybe not but I did get most of my soffits built and designed a silent light MDF box. I still need to caulk the light box but it should work in the soffit.

Thoughts, prayers, etc?

I have since read Ted White's article on light box construction and will be lining the boxes with cement board. I will also install a small amount of insulation for resonance purposes.

It pays to READ first!

B.

So I have been giving some thought to the door that will provide the sole entrance to the theater. In a previous post I mentioned that I was interested in a European door...I just happen to have a bunch of slab walnut from my grandfathers farm. The tree was struck by lightning over the summer so my 2 1/2 year old son and I drove a truck to Indiana, cut it down, milled it and drove it back to Denver. The wood is in 9' lengths, 20"+ wide, and 1 3/4" thick. I think I am going to make my own European door. Thoughts?

B.

I think you are right. I will give some thought to a few other items that I could use the walnut for in the theater. I am open to all suggestions.

B.

I found this on another "rack" thread.

Thank you, every once in a great while an idea come to mind!

B.

Thank you Ted.

B.

Anyone have an approximate idea of what this goes for per sq ft?

B.

Ok, well I found 170 sqft for $150.00.

FWIW I called Dricore this morning and they quoted me $8.15 per 2'x2' panel or $2.03 sgft. This would be arranged through my local Home Depot.

Hi All:

Has been a bit since my last post. This work/life balance thing sucks. Anyway I was able to work in the basement a few days in the past month and am happy to report a little progress.

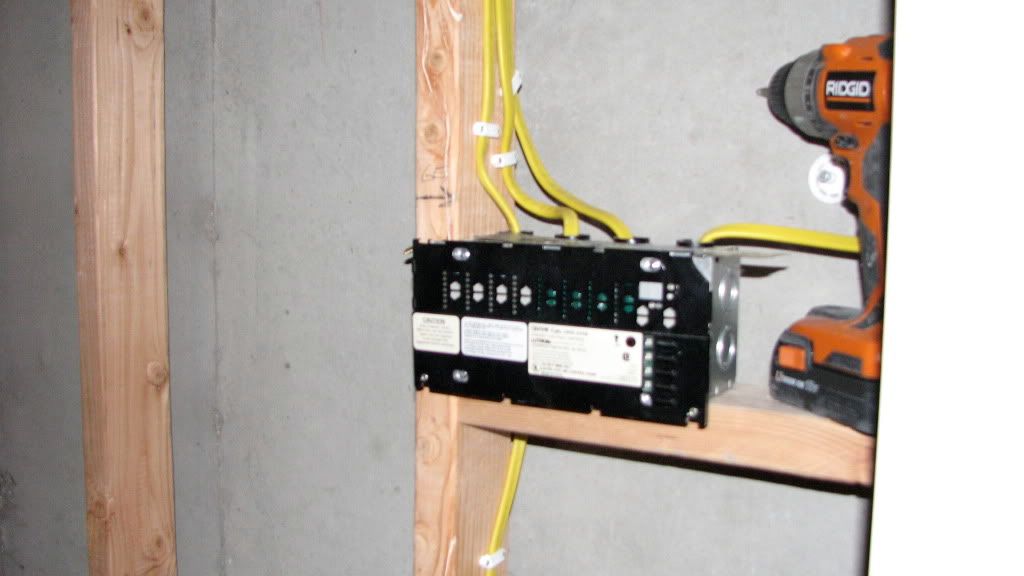

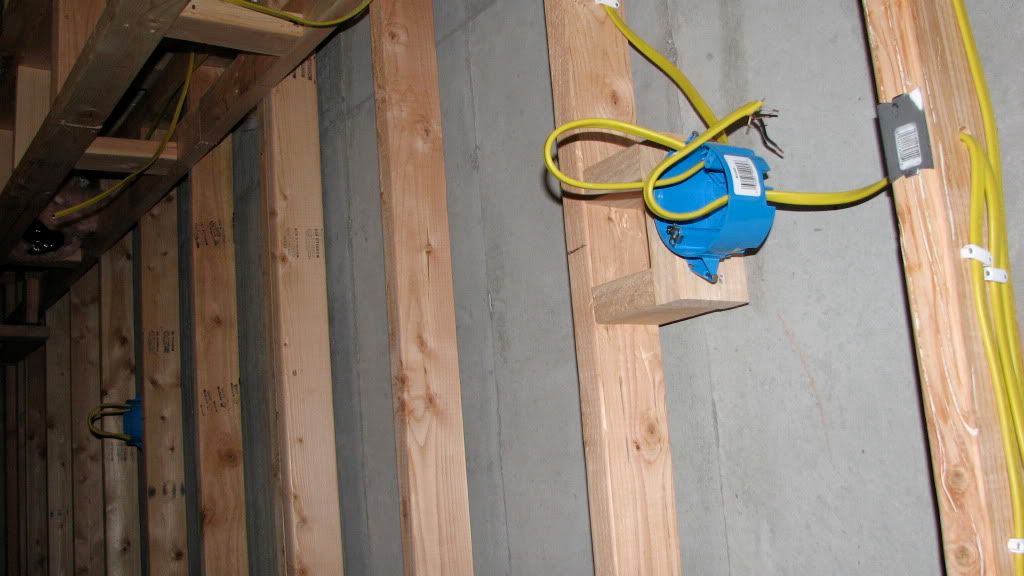

I was originally considering having an electrician wire the room etc, however, after reading the Grafik Eye thread and several others I felt confident enough to give it a go. The GE was much less difficult than I thought it would be, albeit there were a few moments of frustration trying to get all that 12/2 into the box. All I can say is plan your "pigtails" accordingly! I also ran two new 20 amp lines from the basement panel for the GE and the AV rack. That too was not terribly difficult.

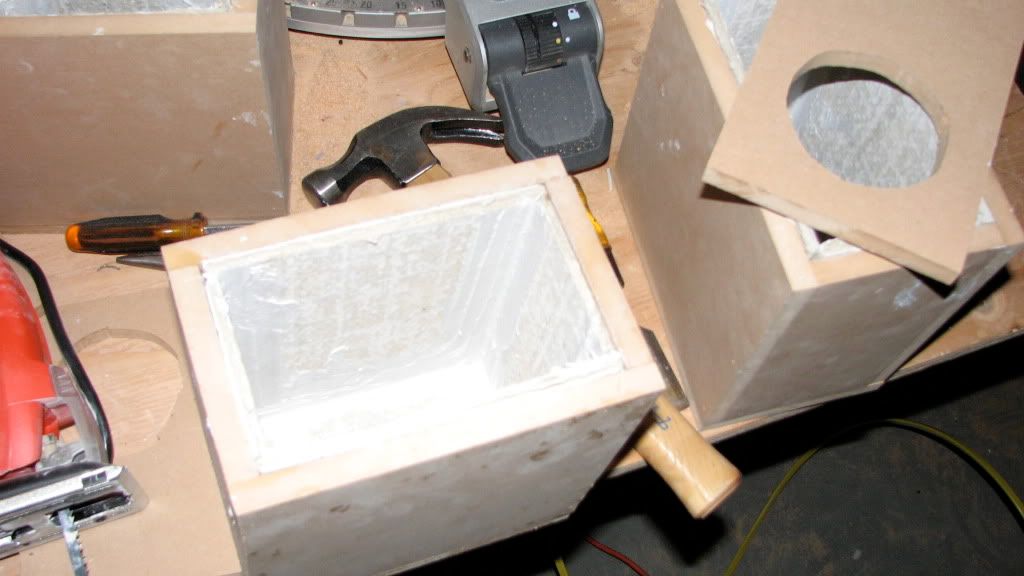

I received some advice from Ted White regarding the soundproof boxes I was building and ultimately ended up installing cement board in them to make them fire resistant. These were a bit tedious to build. I am not certain if they will be worth the effort.

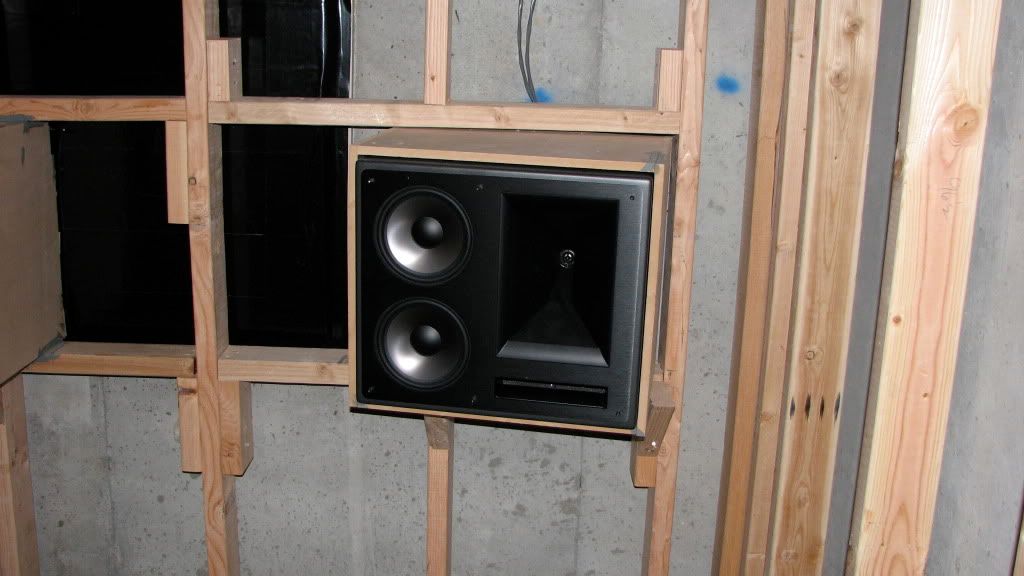

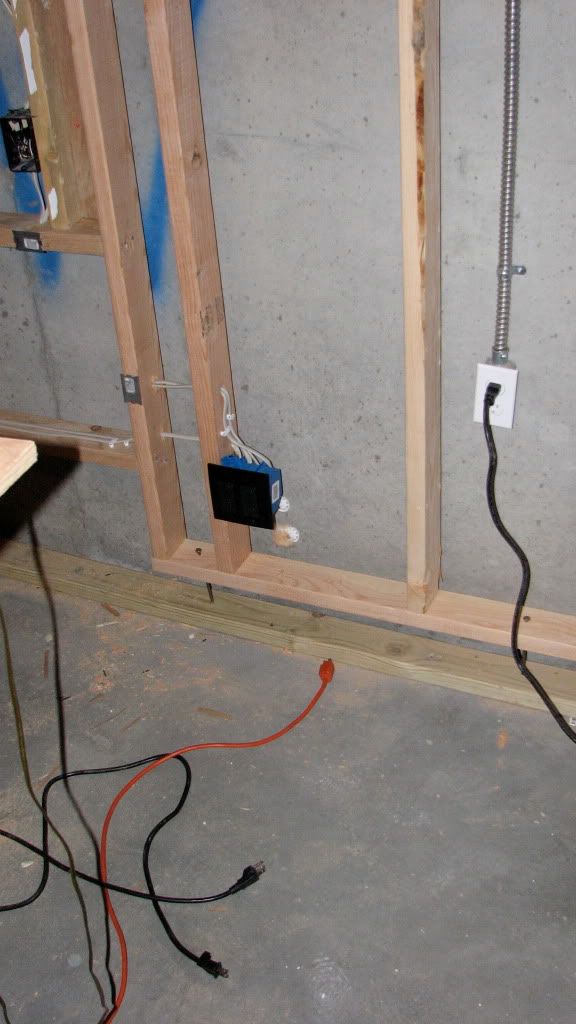

I built speaker boxes for the Klipsch Ultra 2s and have them in the wall. They are not aligned thus far so no worries with the photos! I also, moved a couple outlets and replaced the socket with black.

Finally I re-routed the sump pump plumbing so that it will run through the wall and be accessible under the proscenium.

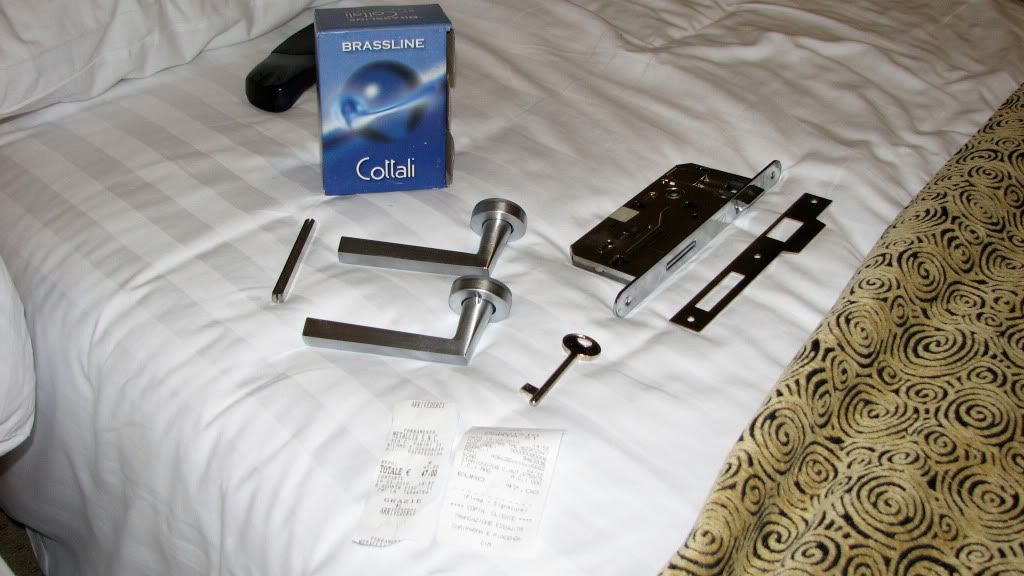

BTW, I am in Milan Italy as I write this and am including pictures of a door handle I just purchased for that door I intend to build.

Let me know if you see anything obviously jacked up!

B.

I am moving it to the stud closest to the pump. It will then be accessible via the hatch I make for the sump pump.

B.

I am still considering how I can use some the wood for trim. If there is a way you recommend, I am up for suggestions. I don't think I would use it for flooring simply because I am keen on the acoustic qualities of carpet.

B.
>

Oh, I forgot...Thank you for the comment and no the sawmill is not ours, it is a neighbors. I forgot how modestly priced things are in Indiana. He charged $100.00 so naturally I had to double that with a tip. Great people.

B.

You need not feel inadequate...I am a HD junkie. The worst part is that I am such a poor planner that I regularly return 3 to 4 times a day. It has crossed my mind more than once to tell the associates that look at me funny that I am a courier .

Thank you BTW!

B.

I am now giving some serious consideration to more that just the door, that is, as far as the wood goes.

Thank you for the kind words.

B.

Thank you for the advice. I am not having the wood kiln dried for the very reasons that you mention. I am going to use a moisture meter soon. Not sure if it has a big impact but the humidity level in Colorado is very low.

B.
