Pimp My LP THT - Page 2

post #31 of 52
Wow thanks for the detailed pics it helps me understand more about what I need to do.
post #32 of 52
Nice. Looking more like a finished product now. Good job!
post #33 of 52
Thread Starter

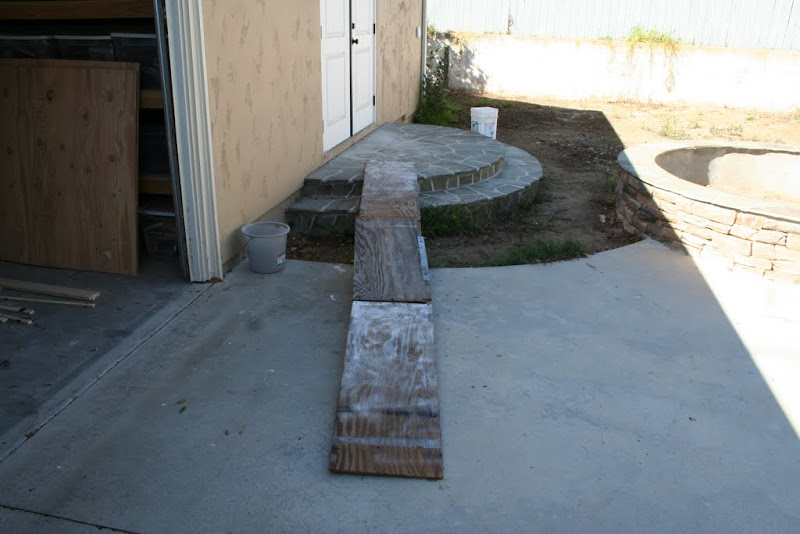

The monolith is done woot! Was a PITA getting it from the garage to the HT room, but fortunately my son's friend next door left his skateboard ramps in our backyard, so I used them as a ramp to ride the hand truck over.



To test for leaks, I moved it onto the riser (on top of a couple rolled up towels to keep it from getting too scraped up and dusty from all the drywall dust in the room), and ran some test tones from my iPhone through the receiver. Didn't detect any, so buttoned it up, and gave it a brief test with some music and movie scenes. So far so good.

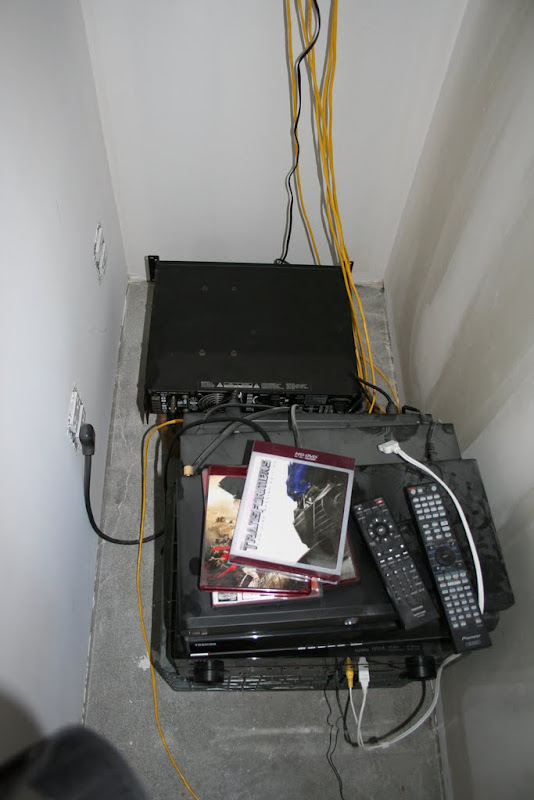

Here's my disgusting temporary equipment wiring. Yeah, lovely.

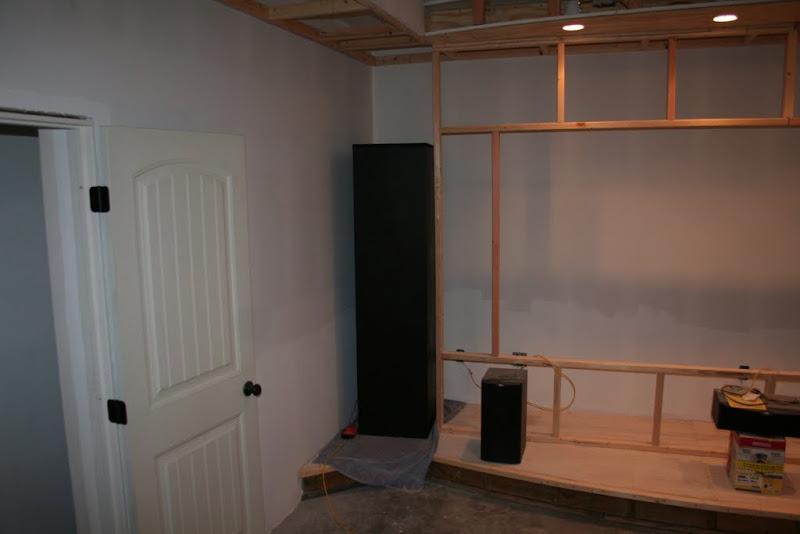

Back onto the hand truck, moved it into the left front corner firing up into the ceiling - my final location will likely either be that, or laying down firing into the left or right wall.



I accidentally deleted the photo of the RS SPL meter, but it was reading 105 dB at this voltage. Haven't pushed it very hard yet.



I'll be auditioning it some more this afternoon, will have to try some of the well known bass workout HT scenes and see how it goes. Probably won't be doing any REW for a while, since the room is so far from complete (untreated is an understatement).
post #34 of 52
congratutions to you on the build and bfm on the form factor (and your son's friend for the skate board ramps).

you've got a nice big screen going in there.

i suppose that i will point out the obvious, if those are the "mains" that you are planning to use, they may be a little outgunned by the subwoofer and screen size.
post #35 of 52
Thread Starter
Quote:
Originally Posted by LTD02 View Post

congratutions to you on the build and bfm on the form factor (and your son's friend for the skate board ramps).

you've got a nice big screen going in there.

i suppose that i will point out the obvious, if those are the "mains" that you are planning to use, they may be a little outgunned by the subwoofer and screen size.

Thanks LTD, yeah, the speakers (B&W bookshelves) are definitely next on the list. Planning on replacing them with (almost as small) PRO-10s.
post #36 of 52
i haven't done much research on the pro 10's. i don't see how the horn can hold directivity through the crossover region being so small. in my opinion, the horn should always be a little larger, at least no smaller, than the driver it is crossing to. sometimes it can work if you push the crossover frequency up higher. most folks tend to like as low of a cross (and that implies as large of a horn) as possible.
post #37 of 52
Thread Starter
No idea there LTD, that's territory I'm not competent to judge really - sort of another leap of faith I guess - like the THT was.
post #38 of 52
How you liking your THT so far? I've got the LP plans as well. Im building mine slightly smaller with a 12" driver I have on hand. Im anxious to get started.
post #39 of 52
Thread Starter
Quote:
Originally Posted by premiertrussman View Post

How you liking your THT so far? I've got the LP plans as well. Im building mine slightly smaller with a 12" driver I have on hand. Im anxious to get started.

Oops, sorry I missed your post premier - I love it, works great. So tempted to build another though - not because I need another, just because I enjoyed building the first one! Plus the talk about evening out response across multiple seating positions. Besides, I still have a half a box of drywall screws left over, it would be a shame to waste them - just need to add a few sheets of plywood, a driver, PL tubes, primer, paint, ...

Hope to see your build thread reactivated soon.
post #40 of 52
I am late to the party... What kind of THT is this and it's so tall... ?

BTW ,excellent build.
post #41 of 52
Thread Starter
Quote:
Originally Posted by Kanaris View Post

I am late to the party... What kind of THT is this and it's so tall... ?

BTW ,excellent build.

Thanks Kanaris - its called a THT Low Profile - basically its designed to be thinner and longer than a standard THT - works nicely for behind screen walls, whereas a THT would be too deep unless you have a very deep false wall.
post #42 of 52
Thanks! I know what you mean by deep false wall..click 'my setup' to see it.
post #43 of 52
Thread Starter
Quote:
Originally Posted by Kanaris View Post

Thanks! I know what you mean by deep false wall..click 'my setup' to see it.

Haha, oh yeah, I do remember that one. Was it a closet before, I forget...
post #44 of 52
Brad - If you get the chance, please send me the plans for your sub. I like to irritate Rocky with stuff. I want to find out what his pro audio company needs to build something like this.
post #45 of 52
Thread Starter
Quote:
Originally Posted by craigsub View Post

Brad - If you get the chance, please send me the plans for your sub. I like to irritate Rocky with stuff. I want to find out what his pro audio company needs to build something like this.

Would love to Craig, but they are copyrighted works of Bill Fitzmaurice.

http://billfitzmaurice.com/THT.html
post #46 of 52
Quote:
Originally Posted by Brad Horstkotte View Post

Would love to Craig, but they are copyrighted works of Bill Fitzmaurice.

http://billfitzmaurice.com/THT.html

Thanks for the link - I missed seeing the low profile one before. It looks pretty cool !

I Will have to call Bill.
post #47 of 52
Thread Starter
Thread 347 days old??

What to do....

build another!

post #48 of 52
Quote:
Originally Posted by Brad Horstkotte View Post

Thread 347 days old??

What to do....

build another!


For the opposite corner?
post #49 of 52
Thread Starter
Quote:
Originally Posted by Kevin A View Post

For the opposite corner?

Yup, the first one is behind the screen firing into the left wall corner, this one will likely be firing into the other corner - unless I find that it works better laying the other direction, or firing up into the ceiling.
post #50 of 52
Awesome!

Glad you are getting a chance to make sawdust again!

Has anyone done a direct comparsion with a tht vs f20?
post #51 of 52
Thread Starter
Quote:
Originally Posted by Audiophile34 View Post


Has anyone done a direct comparsion with a tht vs f20?

If someone has, I haven't seen it. I would imagine they would be comparable, given a THT of similar dimensions (the plans allow one dimension to vary). I'd be interested in seeing that comparison too.
post #52 of 52
Quote:
Originally Posted by Audiophile34 View Post

Awesome!

Has anyone done a direct comparsion with a tht vs f20?

I am curious as well...I am planning on building one of these two as my first DIY and am trying to decide which one.
