post #121 of 594
Thread Starter


Small Stud Bay Strikes Again! I am going to have to make another box out of wood.
post #122 of 594
Thread Starter


Installed these in the bedroom.
post #123 of 594
Thread Starter


Dining Speakers Installed
post #124 of 594
Thread Starter


Kitchen Speakers Installed
post #125 of 594
Thread Starter


I built these about a year ago with the help of a friend I have lost touch with. I can't wait to get these going again!
post #126 of 594
Wow man Just wow. Incredible. I can't wait to see the final results.
post #127 of 594
Thread Starter
Quote:
Originally Posted by Elfather View Post

Wow man Just wow. Incredible. I can't wait to see the final results.

Thanks. I am working hard on getting it mostly buttoned up this week.
post #128 of 594
What brand and or where did u get the recessed tv boxes? Anything u would of done different thus far? Gonna be building a house soon and am slowly collecting ideas. Great job so far, wonderful home.
post #129 of 594
Hi,

Very nice Build.... that is some serious cabling..... but its been a while since any updates...
cant wait to see the finished theater.....

Zammy
post #130 of 594
Thread Starter
Quote:
Originally Posted by cdika17 View Post

What brand and or where did u get the recessed tv boxes? Anything u would of done different thus far? Gonna be building a house soon and am slowly collecting ideas. Great job so far, wonderful home.

Thanks so much! The boxes are Chief brand, they are very nice in that the outlet wires into them. Sorry for the delayed response, I've had a very busy month at work.
post #131 of 594
Thread Starter
Quote:
Originally Posted by zammykhan View Post

Hi,

Very nice Build.... that is some serious cabling..... but its been a while since any updates...
cant wait to see the finished theater.....

Zammy

Thanks! I working through the weekend on a large construction project for work, but I think I should find some time to spend on the system as well as update this thread for the first time in a long time.
post #132 of 594
Thread Starter


Just ordered a pair of these and a descent for the game room or perhaps maybe the family room. They will be here early next week.
post #133 of 594
Very nice. I wished I could had pre-wired the home myself rather than have the idiots the builder contracted out to. It was a mess, left wires hanging out of the walls instead of using keystones, used 18 gauge solid for surround speakers, didn't wire the alarm up properly....and the list just goes on. It's frustrating because I couldn't prewire due to 'insurance reasons', when I know I could had done a LOT better of a job.

Looks really nice and jealous of it!
post #134 of 594
Thread Starter
Quote:
Originally Posted by wiz561 View Post

Very nice. I wished I could had pre-wired the home myself rather than have the idiots the builder contracted out to. It was a mess, left wires hanging out of the walls instead of using keystones, used 18 gauge solid for surround speakers, didn't wire the alarm up properly....and the list just goes on. It's frustrating because I couldn't prewire due to 'insurance reasons', when I know I could had done a LOT better of a job.

Looks really nice and jealous of it!

Yeah, it was a struggle to be able to pre-wire it. Basically, I was up against the same issue. But I just did it anyways and it was so much that no one was willing to rip it out. The pre-wire would have been over 50k at builder prices and the wire quality would have been questionable at best. I didn't do the alarm and I am not very happy with it.
post #135 of 594
Thread Starter
I am having a bit of trouble getting the relays on my IO extenders to control the power state of some power amplifiers that I have. I have cut a headphone cable in two and stripped the insides and was able to determine that the red and yellow wires are the critical elements. I was able to do this by using the pre-amp I have and connecting the red to the red and yellow to the yellow on the two cut ends of the head phone 3.5mm cord. This produced immediate power state changes on the power amplifier. I tried to replicate this on NO and NC on the IO extender and was unable to get the unit to switch power states when powering the room on and off with the remote. When I power the room on and off with the remote I can hear the relay engaging in the IO extender. Any thoughts?
post #136 of 594
Jeeze I really need to move to Tx, that house would easily be 1-1.5 million here (even on the edge of the city). Great looking house.
post #137 of 594
Thread Starter
Well I got it working..... Here is what I had to do.

1 - Took old wall wart 12v power supply and cut the end off.
2 - Wired (-) wire from the power supply to the (-)'s of all the 3.5mm wires.
3 - Wired the neutral into all the commons of the relay ports on the IO extender.
4 - Wired the neutral from the 3.5mm plug to the NO or normally open on the relays.


So when the relay closes it completes the circuit sending 12v DC to the trigger on each of the amps.

Success!
post #138 of 594
Thread Starter
Quote:
Originally Posted by HFGuy View Post

Jeeze I really need to move to Tx, that house would easily be 1-1.5 million here (even on the edge of the city). Great looking house.

Thanks a lot! One of the reasons why we moved here a while back.
post #139 of 594
Thread Starter


I had to go buy this tonight to figure out the situation above.
post #140 of 594
Thread Starter


There isn't really making anything like this neat. You can only hide it.
post #141 of 594
Thread Starter

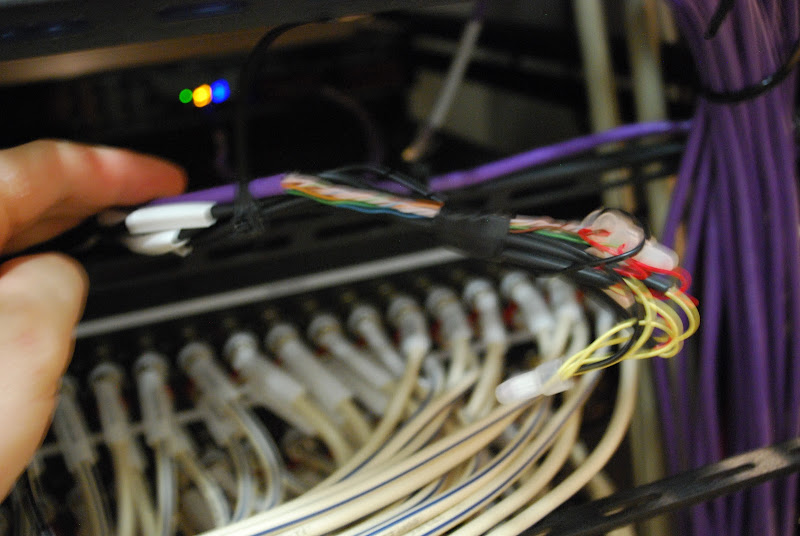

Before Wire Management
post #142 of 594
Thread Starter


After Wire Management
post #143 of 594
Thread Starter


HDMI Matrix
post #144 of 594
Thread Starter


Baluns installed for Control4 interfaces where component video was not run. The spool of component video I bought was MSRP $1000 and I couldn't bear doing some of the longer runs with it so I resorted to this.


The HDMI balun is for the projector. I wanted the highest quality I could find. I ran Audioquest HDMI and this HDBaseT balun and the balun blows the HDMI PQ out of the water.
post #145 of 594
Thread Starter


Some of the room controllers. There are a total of 12 HC200s or 300s.
post #146 of 594
Thread Starter


Source Components
post #147 of 594
Thread Starter


Happy to have sonos installed!
post #148 of 594
Thread Starter


Inputs and IR lines to rest of house.
post #149 of 594
Thread Starter


All of the wires above will be plugged into this.
post #150 of 594
Thread Starter


Front of Rack
