BIGmouthinDC travels to Ohio to help build a Dennis Erskine designed space - Page 9

post #241 of 363
I like this soffit lighting business.
post #242 of 363
Thread Starter
Quote:
Originally Posted by diyhometheater View Post

big/bzbase:

Any reason why you opted to not use the recommended 3/4" osb for the stage/riser? Is t&g too hard to install?

t&g = pia

Three layers of 5/8 was approved by DE.
post #243 of 363
Quote:
Originally Posted by BIGmouthinDC View Post

t&g = pia

Three layers of 5/8 was approved by DE.

Absolutely agree with the T&G comment. I used it and it slowed me down substantially. I would stay away.
post #244 of 363
Would I seem needy if I said this thread shouldn't sit without update for 48 hours?
post #245 of 363
Big has been taken hostage!

Most likely been hobbled and chained to the Theater room similar to this clasic... http://www.imdb.com/title/tt0100157/
post #246 of 363
Thread Starter
Actually I took yesterday off to rest up in order to go the distance. Went to the Rock and Roll hall of fame and the Cleveland Museum of Art. At the Hall the Marine Corp rock and roll band was playing in the lobby. Something about guys in buzz cuts their dress blues belting out a tune didn't seem right.

I'll look for some pictures of recent progress to post.
post #247 of 363
Thread Starter

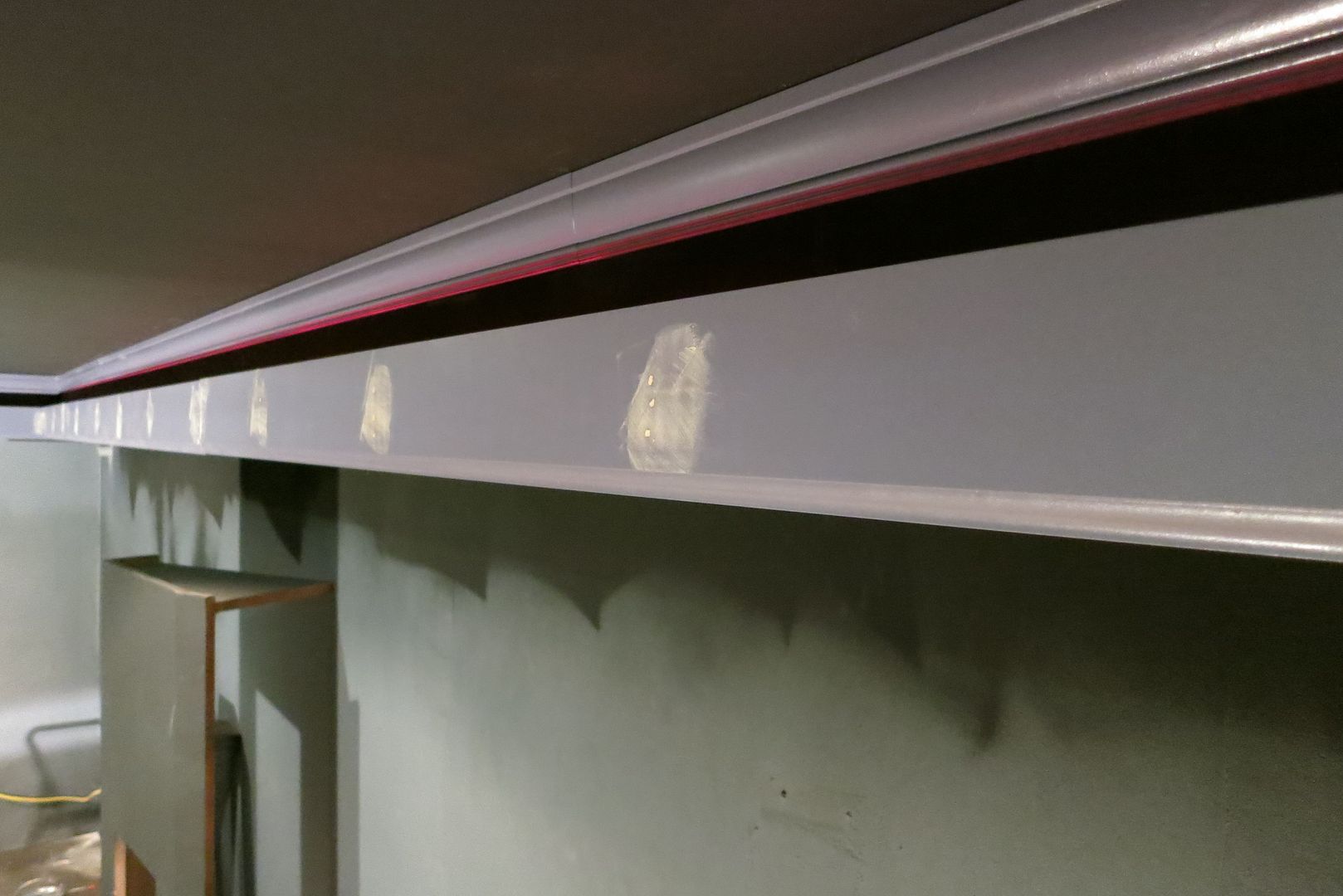

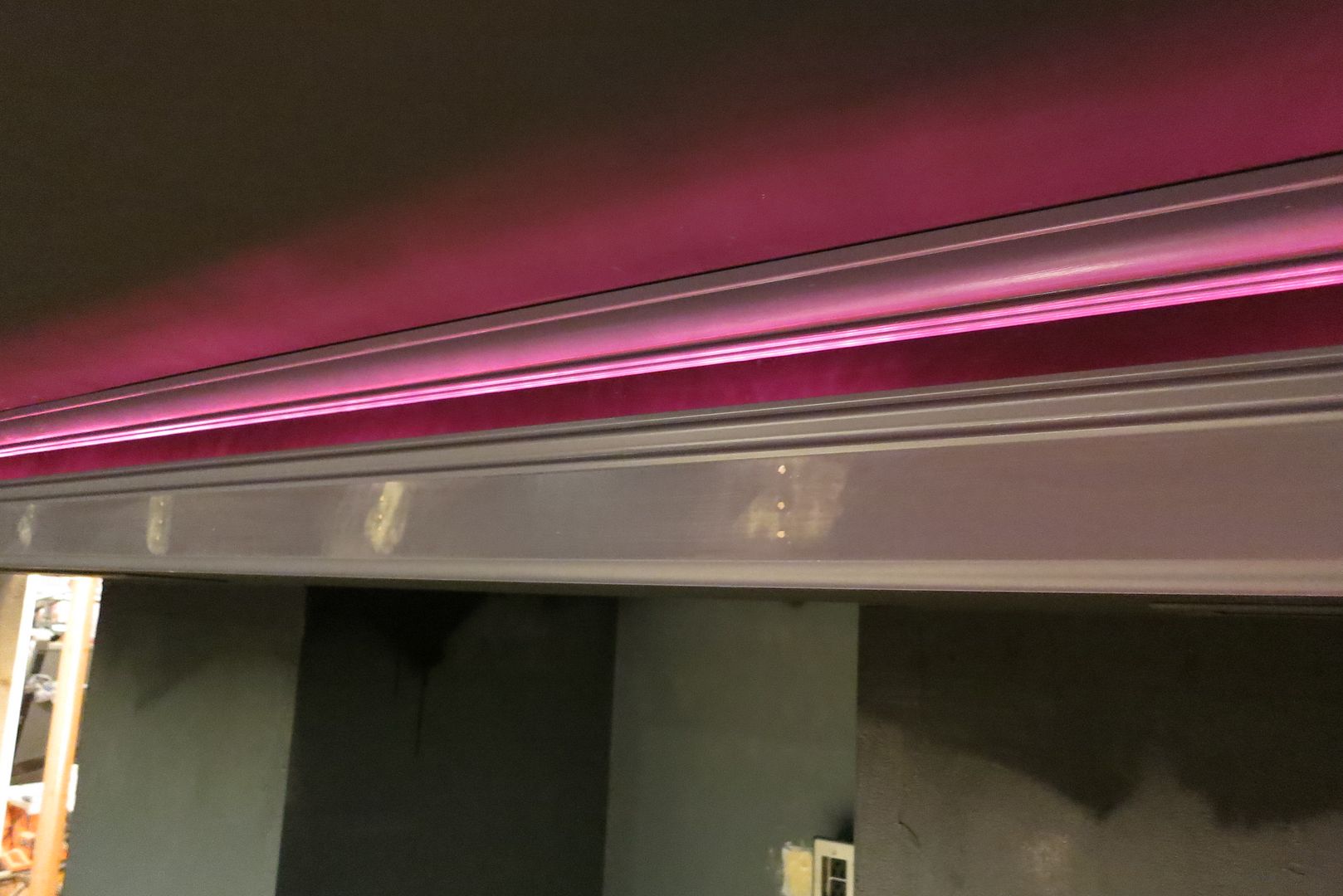

Some more details of the light tray.

The outer edge is two pieces of molding. First an upside down base molding



Then a smaller piece for the upper edge.



Works starts on preparing for the acoustical treatments and fabric install

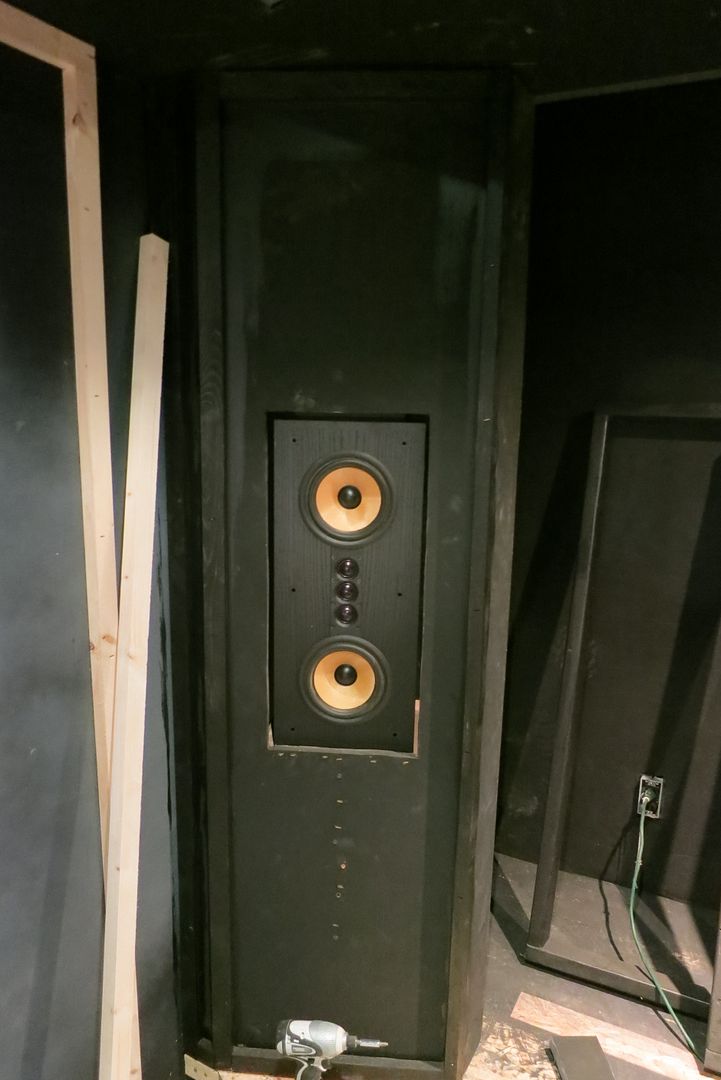

test fitting of the speakers

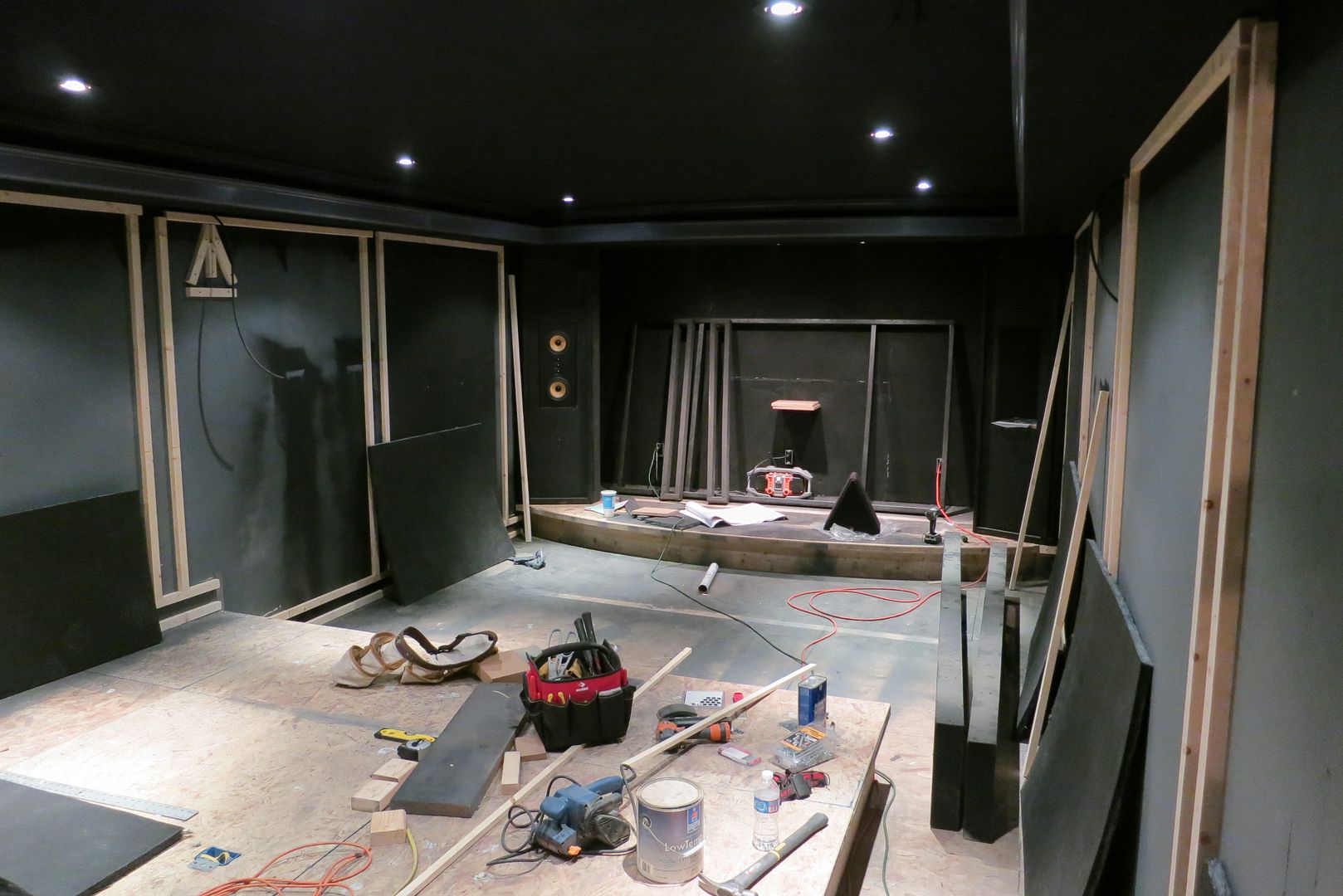

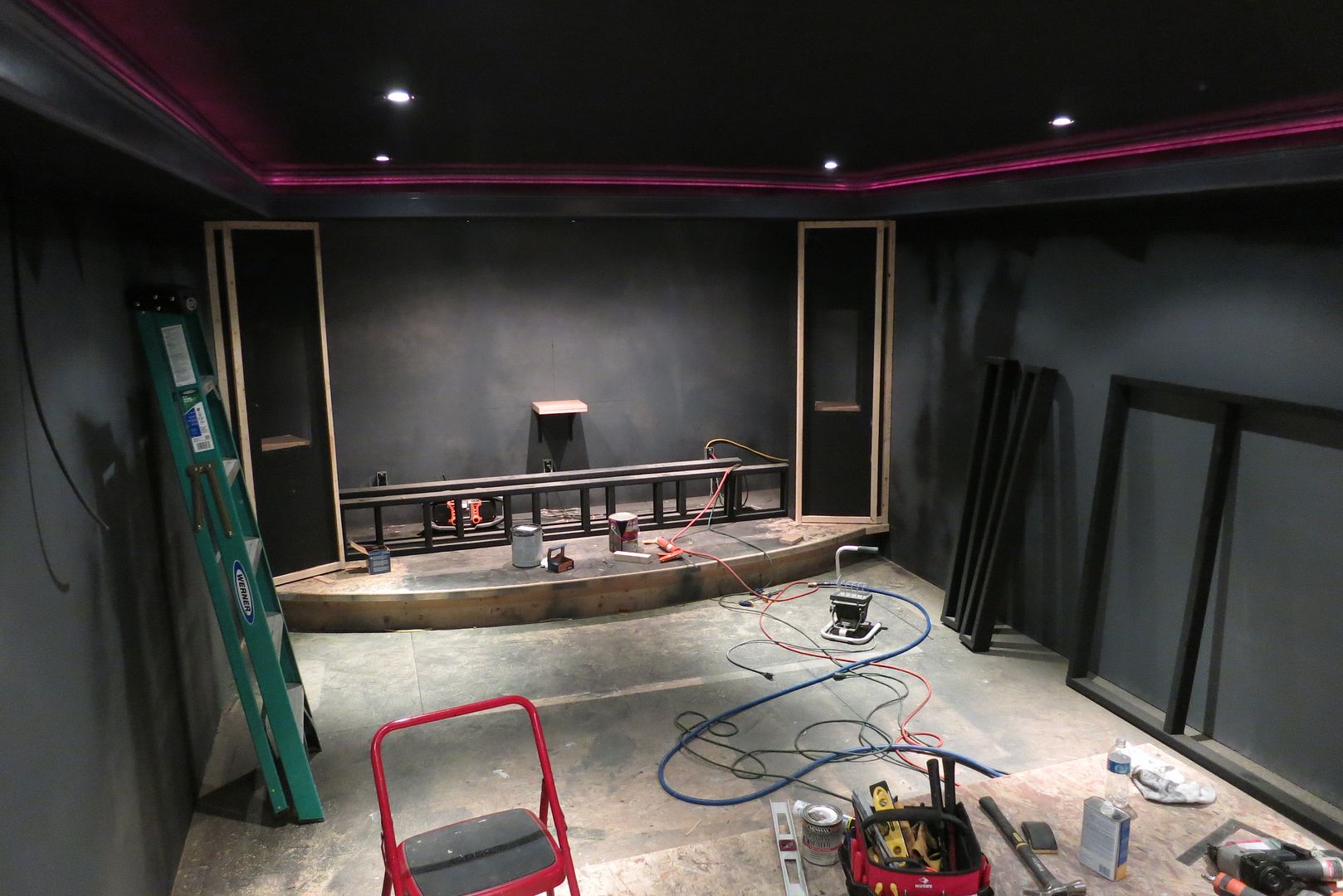

Just as I left tonight



Should have some good shots tomorrow as the finish details start coming together.
post #248 of 363
looking forward to it; build looks great so far
post #249 of 363
Nice progress
post #250 of 363
Hi Guys,

I love this thread. The theater looks great! I can safely say that I don't want to go anywhere I don't have access to a computer for fear I might miss an update!

Quick question: How high the ceiling? What about under the sofits?
post #251 of 363
Two questions...

1. What color are the walls? I'm digging it. Apologies if it was posted earlier.

2. I'll be done hanging drywall tomorrow and will start tape and mud. I'm doing fabric frames as well so I'm not too concerned with a perfect finish on the walls, but does a flat black ceiling HIDE imperfections or make them more obvious?

Thanks. Room looks phenomenal!
post #252 of 363
Thread Starter
Just some quick shots. I will backfill with explanations later after the last push to wrap this up.









post #253 of 363
Hey Big, what do you have for a depth on the bar counter? Looks to be about 2' on the plans?

I was going to build a 2x4 wall and plywood the returns to give it shear strength.. I like your method better.. Consider it "borrowed"

On the T&G subject, I think the difficulty is directly related to the cost of the product. I use Advantech T&G and have zero problems. With GG on the back it just slides into place with your foot. If you use the blue edge stuff from the big box stores the T&G never line up and you need a sledgehammer to get it into place. The catch.. Advantech is about 2x the price of square-edge 3/4 OSB.

Tim
post #254 of 363
Thread Starter
Yes, I think the bar top is planned at 2 ft deep.

Finished the fabric today, Started the three part column installation and the the base boards.

post #255 of 363
with all the trim being sprayed, how do you touch up nail holes? I would think using a brush would make it stand out or no?
post #256 of 363
Looks Great... Much luck on the final stretch.
post #257 of 363
Thread Starter
Quote:
Originally Posted by smakovits View Post

with all the trim being sprayed, how do you touch up nail holes? I would think using a brush would make it stand out or no?

No, putty, sand, foam brush, at least that is what I told Bzbase to do. With 23 ga brad nails you have to look hard to see the holes. Baseboard molding all done. Next the projection booth doors, Hang projector and put fabric on screen. Install outer door on communicating door system.
post #258 of 363
maybe the foam brush is the ticket.

How hard is the stretching process of the material? I assume it is just alternating sides as you move out from the middles?

Is that GOM or just regular cloth of some sort?
post #259 of 363
Thread Starter
It is not FR701 but is GOM. Ask Bzbase. For the Fabric did all the top on a loose piece of furring, Installed, then all the bottom, first tack the middle. Then out to each side. Then tack 3 and 6 o'clock then each remaining section.
post #260 of 363
I found the GOM FR701 I used easy to work with. It's not so much "stretching" it as it is pulling taut. This is where a reliable, pneumatic fabric stapler comes in handy. I found it pretty easy to pull with one hand and fire the stapler with the other. Just a good tug and hold to get it taut and then fire the stapler. Start with two or three close together on the top center, then get your bottom taut and line up the lines of the material and fire in two three at the bottom. Then just work your way out to the left AND right, top and bottom, pulling taut along the way. NOT all one side at a time. By the time you get to the ends, you should pretty much be able to just staple down as you already got it stapled top and bottom up to the end of the run. By then, there's not much you can do going down the side.
post #261 of 363
Quote:
Originally Posted by BIGmouthinDC View Post

No, putty, sand, foam brush, at least that is what I told Bzbase to do. With 23 ga brad nails you have to look hard to see the holes. Baseboard molding all done. Next the projection booth doors, Hang projector and put fabric on screen. Install outer door on communicating door system.

I can deff attest that it is prob very hard to see the nails. This is how all our cherry crown in our house was put in by my buddy and u can't see a thing even when looking!
post #262 of 363
post #263 of 363
Thread Starter
Bzbase and I finished up late last night, this morning I packed up, took some pics and drove home. Here are some pics, no explanations, too tired. I Will put together a step by step summary recap. All thats left is some painting. carpet and chairs (Ordered). One missing section of fluted molding that is yet to come.

















post #264 of 363
Very nice!
post #265 of 363
Well deserved rest Big. The room is looking great!
post #266 of 363
That's a lot of progress! - love the port-hole for the PJ. How many soft ice-cream cones gets BIG home?
post #267 of 363
Wow, awesome job.
post #268 of 363
Looks great - Awesome progress !!
post #269 of 363
Awesome! What kind of speakers?
post #270 of 363
Looking very sharp, the shallow columns add a nice look to the room.
