Can you enclose the track inside something like a small soffit, with a 1" slot down the middle of it? Turn it into an 'architectural element' of the ceiling, with a similar but un-slotted soffit closer to the rear of the HT?
post #34 of 84
Thread Starter
I am going to see what it looks like simply painted black first. If it is not intrusive looking, I will keep it as it is...if it does not look nice, then I will do as you said.
post #35 of 84
There was an trade mag article about that TV track system about a year ago. It was used in a NYC apartment. IIRC, they never showed pictures of the track, just the TV hanging in front of the skyline view.
post #36 of 84
Thread Starter
OK, I am seeking any info on what this cover may be called and/or where I can find it:



It is a very lovely cover for the track and cable mechanisms, angling nicely across it to make it all vanish. It has black "hairs" covering the hole the rod slides through, to keep what is in that space hidden, yet allow the rod to move unemcumbered.
post #37 of 84
http://www.homedepot.com/buy/tools-h...ck-172872.html

You may be able to use or adapt standard door sweeps to accomplish that look.
post #38 of 84
A local gutter manufacturer may be able to make a track 'valence' to your specs.

The black hairs are called a 'strip brush'.

http://precisionbrush.com/metal-channel-strip-brushes
post #39 of 84
Thread Starter
AH! Door Sweeps! I knew I saw something like that somewhere!

EDIT: Strip brush, thanks!


I am trying to get everything from either a local hardware store or online so others can easily replicate this if they wish. That is my hope, at least...not my requirement.
post #40 of 84
Brushes also used for cable pass-throughs, aka brush grommets.

post #41 of 84
You may be able to use 1 or2 K-style rain gutters for the cover.
post #42 of 84
So the rollers would be on the top of the post ?

My only concern is about the moment of torque around that small rolling area. You will typically not pull the screen by the rollers, but by the TV. This will create a rotation around the rolling plate giving you 'snags' as you pull (and stressing the rollers)

Two cross braces with wheels farther out will help if you run into that problem.

If you don't have any issues - great !
post #43 of 84
Thread Starter
Quote:
Originally Posted by andymo View Post

So the rollers would be on the top of the post ?

My only concern is about the moment of torque around that small rolling area. You will typically not pull the screen by the rollers, but by the TV. This will create a rotation around the rolling plate giving you 'snags' as you pull (and stressing the rollers)

Two cross braces with wheels farther out will help if you run into that problem.

If you don't have any issues - great !

The top plate of the TV mount is 7 inch x 7 inch (between the mounting holes). If I find that to not be enough, I am going to use a piece of 3/4 in plywood and make the size I need...I have plenty of it left over from building the riser and the stage. Thanks for the insight, hopefully I will not need to worry about it, but good to have a plan if I do.

I am going to spray white lithium grease on the tracks - unless anyone knows a better lubricant (that stays around and is non-drippy).
post #44 of 84
Don't use any lube. The rollers have bearings so there will not be any scraping or sliding on the track. If you use lube it'll attract dust and gunk which will eventually find it's way into the bearings. If the bearings seem to need lube, use spray silicone sparingly.
post #45 of 84
here is your column mounting plate Chief CMA 115
LL
post #46 of 84
Quote:
Originally Posted by cybrsage View Post

I am going to spray white lithium grease on the tracks - unless anyone knows a better lubricant (that stays around and is non-drippy).

Quote:
Originally Posted by petew View Post

Don't use any lube. The rollers have bearings so there will not be any scraping or sliding on the track. If you use lube it'll attract dust and gunk which will eventually find it's way into the bearings. If the bearings seem to need lube, use spray silicone sparingly.

What about graphite lubricant?
post #47 of 84
Quote:
Originally Posted by scl23enn4m3 View Post

What about graphite lubricant?

Mmm, pinewood derby.
post #48 of 84
Thread Starter
Quote:
Originally Posted by petew View Post

Don't use any lube. The rollers have bearings so there will not be any scraping or sliding on the track. If you use lube it'll attract dust and gunk which will eventually find it's way into the bearings. If the bearings seem to need lube, use spray silicone sparingly.

Thanks! I will start with no lube at all then.
post #49 of 84
Thread Starter
An update, with pics. I mounted the rails on the ceiling and mounted the rollers to the ceiling mount plate for the TV bracket. It rolls very smoothly and there is NO side to side tilt at all. It is very sturdy and each rail is held in place by 14 screws, run through the drywall and the 1/2 inch MDF I used as my first layer on the ceiling. I also ran the wiring for the power to the TV and the HDMI cable (you can see them hanging there).

I also decided I am going to mount some track lights on the screen side of the TV track, to give extra lighting for the room. The power for that has been run as well, but you cannot see it well. Everything is going to be painted black.





post #50 of 84
Looking good!

I like the idea of the track lights. It should help to hide the track a little too.
post #51 of 84
Thread Starter
I put a quick first coat of paint on the track (I will do a final super light coat with the HPLV sprayer so it perfectly matches the ceiling later) and decided to do a "hang" test. That is where my 187 pounds of pure manliness is suspended from the track to see if it will hold the 140 pounds of TV and ceiling bracket.



It passed with flying colors. Paranoia has been satiated, it will hold without any problems. Interesting devil eye effect at that angle, though!
post #52 of 84
Well done. I want to see the TV mounted picture!
post #53 of 84
Thread Starter
I should have it temporarily mounted tomorrow night to make sure everything works as expected.
post #54 of 84
Thread Starter
No TV yet, but I have the mount fully installed and the wire track installed as well. It is only mounted temporarily. It sags a little at the end, so I am going to install a little U shelf for it to ride inside to prevent sagging. The wire track is designed to slide along such things, so it will work perfectly and protect the cables as it should.





post #55 of 84
Thread Starter
Here is a video of it being slid, sans the TV. The TV adds another 98 or so pounds to the track but I am confident it will still slide smoothly.

post #56 of 84
That looks really cool. I kinda wish I had an application for something like this!
post #57 of 84
Nice Job!

I had to quote this again, just so I could insert more rolleyes.
Quote:
Originally Posted by Neurorad View Post

Sorry to crap on your cool idea, but would have been easier to use a retractable projector screen............

post #58 of 84
Awesome!
post #59 of 84
Thread Starter
I reversed the direction of the swing so that the front of the TV is facing away from the wall instead of towards it. This will hide the back of the TV (where the wires and such are).

I am going to use Spoon Flower to make a picture on a cloth to hang over the front of the TV when it is against the wall if needed. I will do a test after I am able to move the TV and install it temporarily.
post #60 of 84
Thread Starter

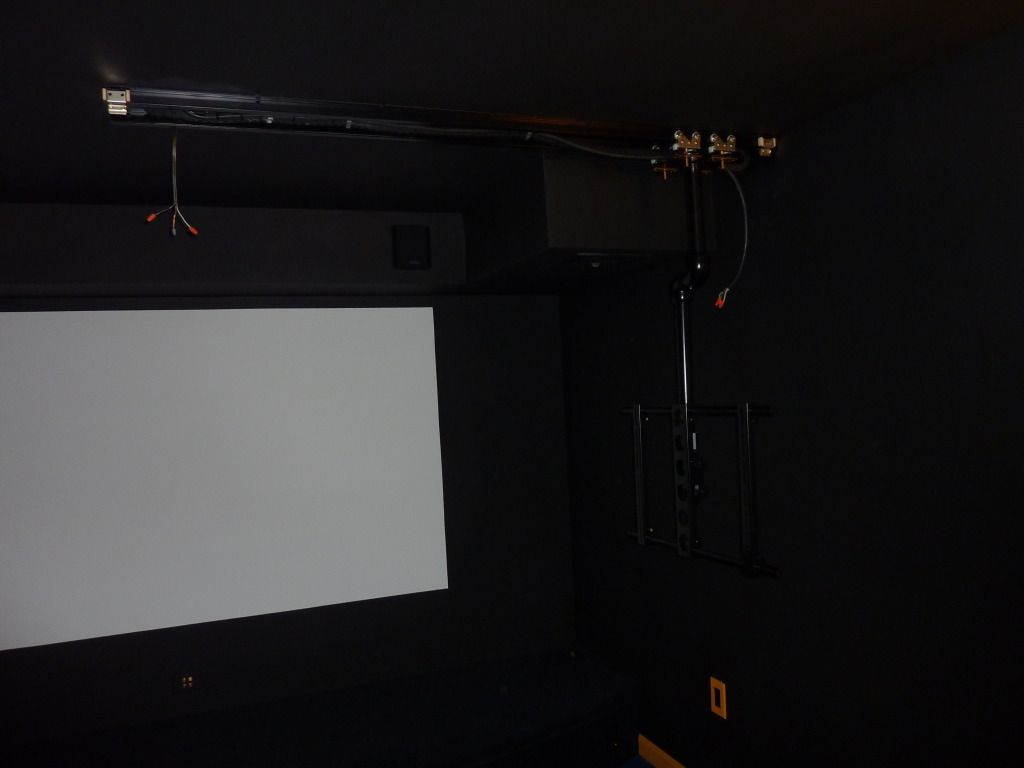

Here are two more pictures, this is almost complete. I moved the cables to come out between the rails - should have put them there to start with. The power cable for the track lighting is staying on the outside of the rails, though.

I connected the tank tread track used to hold the HDMI cable to the ceiling between the rails. I zip tied the power cord to it, ensuring that when the HDMI track slides the power cord will not touch anything. I did this to keep a physical seperation between the power cord and the HDMI cable. If it has to be seperated in a wall, I figure they should also be seperated in a moving track.

The only things I have left to do are to cut off the extra length of the bolts stucking down and put up the metal covers (which will be painted black) to hide it all, as well as putting the outlet plug on the end of the power cable. I will wait and see if I need to use the brushes or not.

I am waiting on an HDMI extension cable, once I have that I will install it and zip tie the power cable the rest of the way along the track holding the HDMI cable.

Then comes the TV and success.

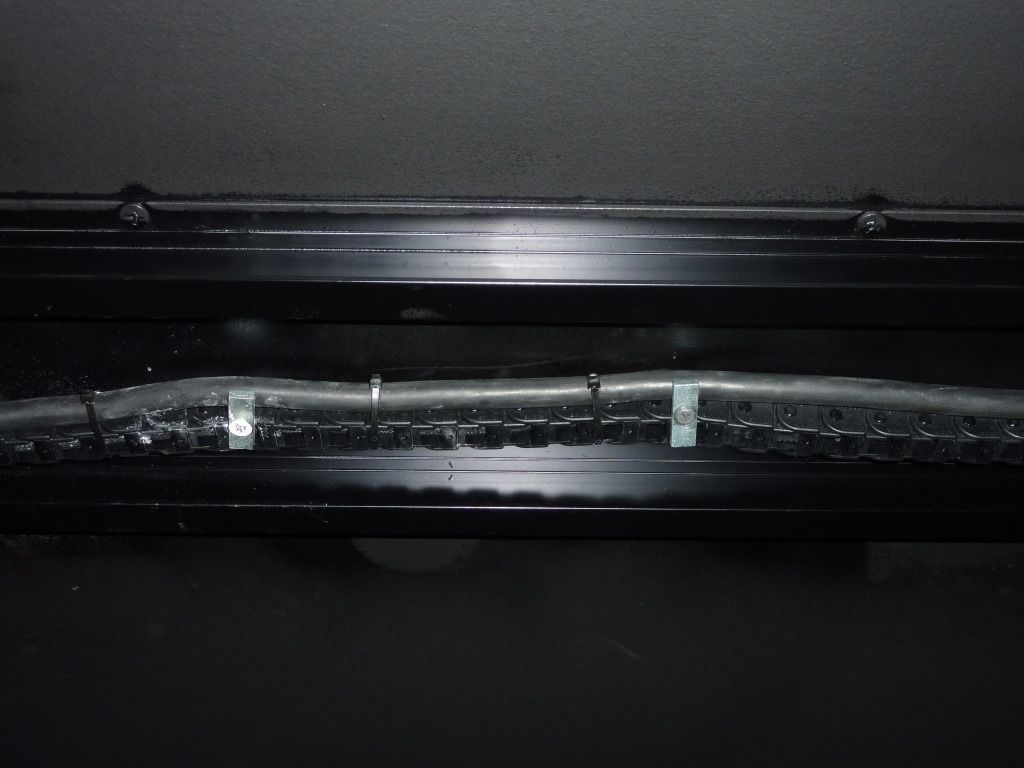

Here is a close up of the system used to hold the HDMI track and power to the ceiling. It is a long wood screw with a support bar on it. It holds everything tight against the ceiling. I will use four of these, spread evenly along half the length of the HDMI track. Since the HDMI track folds in half when the TV is in the middle of the room, it cannot go further than that (I only have three installed in the one picture). The other half will lay on the inside lip of the cover which is yet to be installed. The HDMI track is designed to take a good amount of abuse, so it would take centuries of movement before it will ever see damage from rubbing. The power cord, being zip tied to the HDMI track, will not rub against anything.
