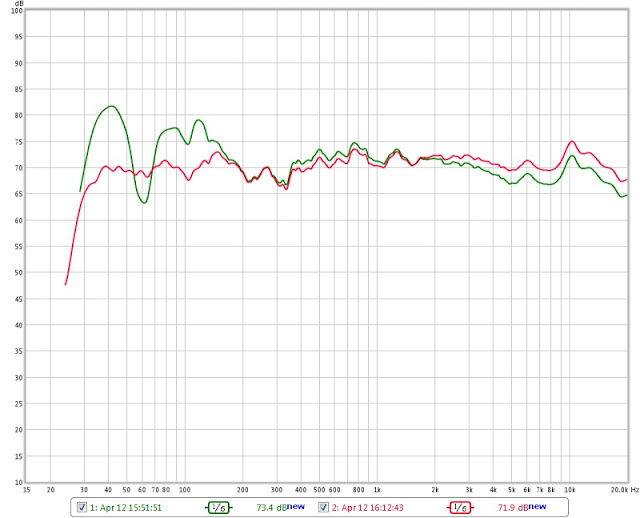

I was unhappy with the Anarchy tapped horns I built so I wanted to use the drivers in another project. What I did was use them as a bottom helper for a Mark Audio Alair7.3 by putting them in a 0.5ft^3 cab ported to ~44hz. I am currently low passing them at 300hz using a miniDSP. The A7.3 is in a 0.25ft^3 sealed PE box. This set up sounds absolutely fantastic to me. The Mark Audio Alpair7.3 is really an amazing driver and the Anarchy fills in the bottom octaves like a champ. I used REW to take the measurments and calculate the biquad filters. Using the miniDSP and REW together is super fun and easy. Disregard the scale on the initial measurment graph because I had the spl meter calibrated wrong. I have also flipped the bas so the drivers are closer together. The red trace on the bottom graph is my current settings from the listening position. Anyone else doing something like this?
post #1 of 13
4/28/12 at 4:12pm
