BIGmouthinDC - Summer Fun, Just 10 minutes down the Parkway - Page 8

post #211 of 227


Love this. This is exactly what I want behind my last row. The power outlet... Where did the feed from from ? Did you plan for it?
Is this hollow ? I'd love to see another pic.
post #212 of 227
I am hoping that mine will turn out just as good...
post #213 of 227
Thread Starter
Quote:
Originally Posted by Mfusick View Post

Love this. This is exactly what I want behind my last row. The power outlet... Where did the feed from from ? Did you plan for it?
Is this hollow ? I'd love to see another pic.

Of course I planned for it.



this is a little out of focus but you can see what I am doing

post #214 of 227
Big,

Any details on that back bar? Dimensions and how you built it?

Did it get wrapped in just sheet rock or some sort of paneling?

Thanks,

CLE
post #215 of 227
Quote:
Originally Posted by Mfusick View Post



Love this. This is exactly what I want behind my last row. The power outlet... Where did the feed from from ? Did you plan for it?
Is this hollow ? I'd love to see another pic.

This is what I wanted to do... but the wife-veto came into play on the space I was allowed to use!
post #216 of 227
Quote:
Originally Posted by BIGmouthinDC View Post


What is the height of the bar framing?
post #217 of 227
Thread Starter
bar tops are usually about 42 inches so just subtract whatever you plan for the top.
post #218 of 227
Quote:
Originally Posted by BIGmouthinDC View Post

bar tops are usually about 42 inches so just subtract whatever you plan for the top.

Thanks Jeff!
post #219 of 227
Quote:
Originally Posted by BIGmouthinDC View Post

bar top is 18 inches

So the Bar Top is 18" and I see overhang on the front and back - how much overhang is there? Basically asking what is the depth of the framing underneath the bar top?
post #220 of 227
Thread Starter
I think I did one inch overhang on the front and 1 1/2 to 2 on the back, My rule of thumb is just do what looks right.
post #221 of 227
Quote:
Originally Posted by BIGmouthinDC View Post

I used 2x2s and MDF
Each step was about 5 inches tall.
The other dimension was based on what it took to fit the ductwork.

Another Question - What kind of screws/size did you use and how far apart did you put them in?

Planning on doing the MDF/2x2s - Want to make sure they aren't going to fall down smile.gif
post #222 of 227
Thread Starter
I used about 10 different screws in the project but I can tell you that they were all pointy.
post #223 of 227
Quote:
Originally Posted by BIGmouthinDC View Post

I used about 10 different screws in the project but I can tell you that they were all pointy.

LOL - Thanks

I will be sure to get the pointy kind smile.gif
post #224 of 227
Thread Starter
If I was screwing into metal, fine threads, wood course threads, clips with deck screws.
post #225 of 227
Big,
After reading thousands of posts I'm getting ready build a very simple home theater.
I have a very similar space and I'm using this build as my inspiration. My room is slightly narrower at 12 ft. I have read in these forums that I should place the LCR speakers approximately 3.5 ft. from the wall. Because of the narrow room I think I'm going to go with bookshelf speakers for LR (maybe SVS ultras.) I also plan to wire for 1 or 2 subs in front and plan to build a slightly longer stage. Do I wire my speaker and rg6 wire to come through the stage or should they go to the screen wall? I plan on building a simple stage approx. 4 inches high.
Many Thanks!
RV
post #226 of 227
Thread Starter
wall, above the stage, keep the wires out of the way when building the stage and filling it with sand.
post #227 of 227
Quote:
Originally Posted by BIGmouthinDC View Post

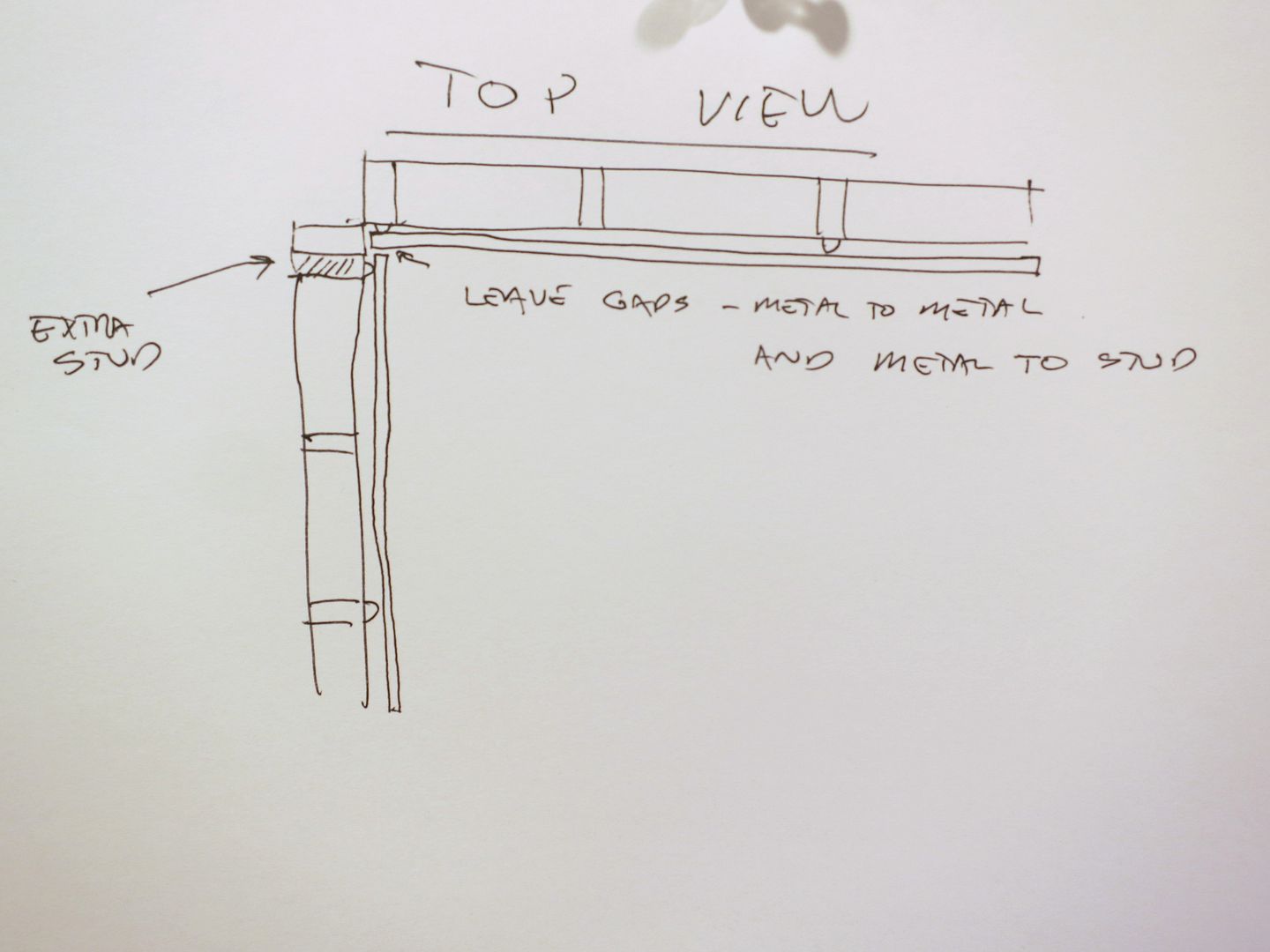

doing inside corner clips and channel


Quote:
Originally Posted by Glenn Baumann View Post

Big,

I just wanted to thank and acknowledge you for sharing your knowledge, tips, tricks, photos, diagrams etc. with your various builds!

Great stuff... right on man! biggrin.gif


...Glenn smile.gif

I definitely appreciate the detail and knowledge that goes into these posts. I've been poking through the whole Dedicated Theater forum and they are slowly giving me the motivation to take on a build. On top of the motivation there is a lot of knowledge to be gained here -- I feel like I'm somewhat handy and could do an ok amateur job, but all these little details will really save you time in doing it right the first time/save frustration/make it come out a little more professional.
