Originally Posted by stormwind13
I was thinking about trying my skills out at building my own amp. Have a nice toroidal transformer laying around. The primary purpose would be subwoofer amplification. The transformer is out of an existing high end sub amp that failed. I have other various parts from it as well that can be used. Capacitors, wires, relays, etc.

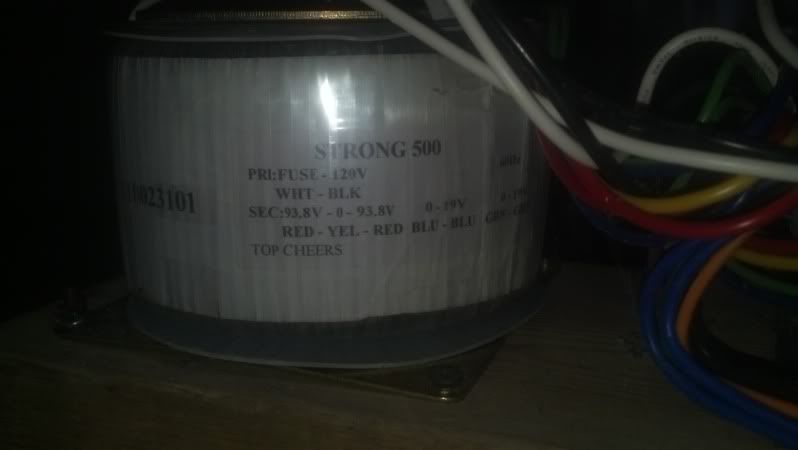

Anyways here is a pic of the transformer I have. If someone could point me in the right direction that would be great.
That power transformer is probably not designed for building power amps. I see a secondary of 95 volts center tapped, which when rectified is about 130 volts DC. Given that you are going to drive 2, 4, or 8 ohm speakers you are talking a very high powered amp - up in the kilowatts.
I would not recommend building a extremely powerful amp for your first time out. That's like wanting to build a steam engine and building a nuclear power plant for your first project,
Small cheap mistakes with low powered amps turn into massively expensive mistakes that may hurt you or even kill you with high powered amps. A power amp built with the power transformer above will contain lethal voltages, no doubt.
There are articles on the web about building your own power amp. This one is highly detailed and a classic:
