DIY Gallery - Page 7

post #181 of 1121
Parboy, great job. You're an encouragement to all those wanting to build sonosubs.

Stevenn, I was wondering when you would post your projects here...finally...gosh
post #182 of 1121
Quote:


Stevenn, I was wondering when you would post your projects here...finally...gosh

Well!..ok so I'm a rebel I post so many pics I even embarrass myself.
post #183 of 1121
Rythmik Audio 12" DIY servo sub. We just put on some black formica as a finish since we just wanted something temporary at first since we thought we were going to use it in the theater.



(Ugly picture, I know)


Here's the nearfeild performance.



IB:

Work in progress.

[Space reserved for upcoming 3 x Dayton RS TMWW w/ Seas tweeter]

[Space reserved for upcoming 4 x Modula MT w/ Seas tweeter]
post #184 of 1121
Did you guys use caulk to seal up where the edges of your subwoofer box meet? Or do you just use glue?
post #185 of 1121
Quote:
Originally Posted by rocko1290 View Post

Did you guys use caulk to seal up where the edges of your subwoofer box meet? Or do you just use glue?

You can, most do.

I used fiberglass resin since it's less messy and easier to apply.
post #186 of 1121
Quote:
Originally Posted by rocko1290 View Post

Did you guys use caulk to seal up where the edges of your subwoofer box meet? Or do you just use glue?

I used white GE Silicone Caulk. Had some laying around the house at the time...and it was pretty easy to spread accross the seams inside of my box and has worked excellently over the past 6 months...no leaks. I wouldn't recommend clear caulking though, might be hard to see.
post #187 of 1121
Here are some pics of my TC2000 in a 300L enclosure. I'm going to be painting the inside of the port black so it will clean up a bit.
LL
LL
LL
post #188 of 1121
One more pic of the rear.
LL
post #189 of 1121
Great looking sub.Definately hi WAF with that cabinet.
post #190 of 1121
That looks absolutely fantastic Skiier!
post #191 of 1121
Thanks WillD - LOTS of time in that thing - I'm ecstatic about how it turned out both aesthetically and acoustically.
post #192 of 1121
Quote:
Originally Posted by Habs4life View Post

Great looking sub.Definately hi WAF with that cabinet.

Haha - sort of! She likes the cabinet alright and thinks it looks great. However, she can't stand the size.
post #193 of 1121
Quote:


Here are some pics of my TC2000 in a 300L enclosure.

Now that is a build job to be proud of. Very nice!! absolutely beautiful.
post #194 of 1121
skiier, beautiful...great job man...

If the wife is not happy with one (size), get another one I know she will get use to them...

Al,
post #195 of 1121
Quote:
Originally Posted by Thuppu View Post

Wow, those are just high tech looking... verry nice!
Here is my own unfinished SVS (dB12.2) metal-spiral-subwoofer. Maybe I paint it black?

Nice metal work!
post #196 of 1121
Quote:
Originally Posted by Hocky_J View Post

Nice metal work!

Thanks! Have been really satisfied with it...


All DIY work here is really nice.
post #197 of 1121
post #198 of 1121
Here are a few pics of the audax project I completed a year and a half ago. You can also see some holes in the floor in the first pic that lead to the dual manifolds that hold 4 IB-15s in an infinite baffle design.

Thanks to some helpful folks at avs and the "cult" I was able to make it successfully through my first diy speaker project without any regrets whatsoever. It's not very often that a day goes by that I don't listen to and enjoy the fruits of my labor.
LL
LL
LL
post #199 of 1121

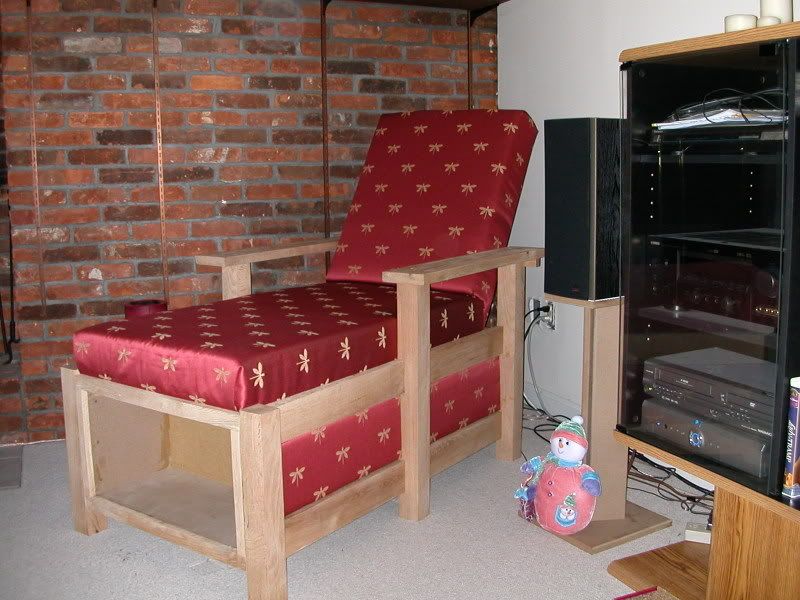

so here's a pic of my (mostly) complete chaise lounge/sub.

I chose to make a chaise lounge because I knew my wife would not look with favor on a big black tube in the corner. my daughter and I picked the fabric together, and it really works with the rest of our furniture. my wife is very happy, wants me to make another one...

it really sounds fantastic, although I need to get a better sub cable since the supercheep leftover RCA I'm using is introducing a bit of a ground loop hum when there is no LFE signal.

the only things left to do are glue up some (minor)trim pieces and stain the red oak.
the upholstery is completely removable to allow that to happen (and also if we ruin it or decide to change it).

also, in the foreground is one of the speaker stands I made at the same time..



the construction thread for the sub is here:
http://www.avsforum.com/avs-vb/showthread.php?t=741638

for those who don't want to read all through the thread, it's a Mach5 12" driver (DVC in series 8ohm), Rythmik 250 amp, ~136.6 Liters net tuned to ~17hz with a 21"x4"diameter unflared vent.

total cost, all in, under $350, and about 20 hours.

I never would/could have done it without this board...

the rest of the photo album is here:
http://s136.photobucket.com/albums/q189/baggins_69/
post #200 of 1121
Build based on the most balanced optimized design of 320 effective liters (340 gross) with a 6 x 27" long port to give a 14.5 Hz tune with a TC2000-15 SVC.

See my signature for design thread.









BR
post #201 of 1121
I decided to make a new sub to replace one or both of my Titanic 1000 kits. My original plans were to use both of the 10" Titanic drivers in one box, but that was scrapped when I found out (after I already built most of the box and cut holes) that the two kits used different drivers (ordered them months apart from each other and the drivers were changed in between). So, instead, I ended up buying a Dayton 12" Titanic MKIII driver and using the same box size (4 cu ft) and dual 4" ports. I still need to buy a new sub amp to drive it (looking at the www.oaudio.com amp) since the amp I am using is a Titanic 1000 kit amp which has a bump at around 30hz, which I need to get rid of. The specs look really good for a flat response and good output with this combination.

I wanted it to blend in with the surrounding area, so this is what it ended up looking like:



and here is how it progressed to get to that:

The chart above shows the white line as a single 12" Titanic MKIII driver and the blue shows two 10" Titanic MKII drivers (I would have to find a second MKII driver, since I only have one). The response curve is very good and the SPL levels are pretty close as well.





post #202 of 1121
I just read the entire thread. You guys did some incredible work. You should all be so proud of the hard work and skill involved in building something as beautiful as the stuff I have seen on this thread!

Have a great Holiday!
Jeff
post #203 of 1121
Here's a pair of speakers I made a year or two ago. They use full range Fostex drivers.

Building these speakers got me into woodworking. I am now building a CNC router with which I can make more speakers. I can see it now... "Why dear, of course we need a set of hall speakers..."

Ha seriously, I may make a pair of line arrays for the theatre room though.


post #204 of 1121
Semisentient,

Are you building your CNC router from available plans, if so , where would I find them. By the way, those are interesting speakers, how do they sound?

Ed
post #205 of 1121
Semisentient, I have not seen anything done with full range speakers in a while now (not watching all the DIY speaker threads). I assume those are transmission line speakers? Can you give everyone more information on the drivers as well as the expected frequency response in your design?
post #206 of 1121
Quote:
Originally Posted by baltizar View Post

Semisentient,

Are you building your CNC router from available plans, if so , where would I find them. By the way, those are interesting speakers, how do they sound?

Ed

No, I'm basing the CNC on various other designs. It's going to have a usable 2' x 4' x 8".

The speakers are called Zigmahornets, which are popular on some of the full range driver forums. They do great at what full range speakers are strong in such as separation, detail, soundstage etc. They are only 4" drivers so bass isn't huge. I mostly picked this design for looks as they were being used in our living room for non-critical listening. I drive them with a digital T-amp.
post #207 of 1121
Quote:
Originally Posted by SVonhof View Post

Semisentient, I have not seen anything done with full range speakers in a while now (not watching all the DIY speaker threads). I assume those are transmission line speakers? Can you give everyone more information on the drivers as well as the expected frequency response in your design?

The drivers are Fostex 103FE's. Google "Zigmahornet" and you will find a fair amount of info on these speakers. It's been a while and I can't really remember all that stuff.
post #208 of 1121
One of my DIY speakers;



More here...

http://gallery.audioreview.com/showg...&ppuser=246853
post #209 of 1121
sgtreese, nice gallery looks great.
post #210 of 1121
Just finished the main work on my new sub. My first DIY HT sub. Lots of experience in the 12v world, but haven't really done much in house.

Not quite finished, but pretty close. The dude at home depot sure made the project a lot easier by doing ALL of my cuts for me on their big saw gadget...




She still needs some work, but she's getting there. I brought it upstairs to let it sit while the glue dries, then I need to decide on a finish for it.

The sub was one I've had sitting around for a while, but it's never been used. It's an Elemental Designs 13Kv2.

The amp is one I bought from my cousin (actually, borrowed it, since I need to buy him another one ASAP...

The box..well, it's designed a little big to reach full excursion on the 240 watts available.

Now I just have to wait for the dang glue to dry before I can start playing with it.
