DIY Gallery - Page 33

post #961 of 1121
Quote:
Originally Posted by DougSmith View Post

How does it sound?

It is very good. I might goes as far as to say stunning. They have a warm and liquid midrange. Open almost ethereal. They image perfect and give more a sense of realism. I'm very happy with the outcome.

Here is the setup in my vintage room.

post #962 of 1121
Here are a couple of my builds. The Intimates and Poor Plumber's Plutos...
PM me for some details.
LL
LL
post #963 of 1121
Quote:
Originally Posted by spkrdr View Post

Here are a couple of my builds. The Intimates and Poor Plumber's Plutos...
PM me for some details.

I love PVC builds. :-)
post #964 of 1121
Lilmike F20!





post #965 of 1121
cheezit73, you have the port facing the wall? I have never followed horn loaded sub designs, but it seems like it should be facing the other way.
post #966 of 1121
Quote:
Originally Posted by SVonhof View Post

cheezit73, you have the port facing the wall? I have never followed horn loaded sub designs, but it seems like it should be facing the other way.

Scott I don't know what's right or not, I read a few f20 related posts that mentioned facing the wall. I have not had time yet but am going to experiment with facing it out and seeing how it compares.
post #967 of 1121
JUst thought I would post some pics of a diy Floorstanding I did about 8 years ago...I wish I could find all the build pics
Drivers
2)Peerless 8" woofers
1)Peerless 4" midrange
1)Morel MDT-33

You guys have some awesome builds...Im just now getting back into it


Shot at 2011-12-06


Shot at 2011-12-06


Shot at 2011-12-06


Shot at 2011-12-06
post #968 of 1121
Quote:
Originally Posted by SVonhof View Post

cheezit73, you have the port facing the wall? I have never followed horn loaded sub designs, but it seems like it should be facing the other way.

Quote:
Originally Posted by cheezit73 View Post

Scott I don't know what's right or not, I read a few f20 related posts that mentioned facing the wall. I have not had time yet but am going to experiment with facing it out and seeing how it compares.

Cheezit,

Beautiful build!

You have it the correct way. Not sure how close you have it to the wall though. I know that for the THT it's best to have the mouth about 18" away from the wall. Check with Mike or even Bill Fitzmaurice for details.


dbl
post #969 of 1121
Some Overnight Sensations.

More pics and some build comments here.


...
post #970 of 1121
Quote:
Originally Posted by baniels View Post

Some Overnight Sensations.

More pics and some build comments here.

...

Beautiful build!

How do they sound?

I was thinking of building a pair myself; How much MDF did you use?
post #971 of 1121
They sound amazing to me. For the price and the size, this is a lot of speaker.

No MDF. Just Baltic Birch. The link in my post above has more info.

Quote:
Originally Posted by Monkish54 View Post


Beautiful build!

How do they sound?

I was thinking of building a pair myself; How much MDF did you use?
post #972 of 1121
View of the business end of my man cave.
WWMT's, maelstrom 18" in 6ft, and a tc 12" 2000 in a 3ft.
Sharp 70"
XPA5 and ep 2500 and ep4000 in other room. (Ran out of space/ fan noise)
LL
post #973 of 1121
Finally finished the crossover for this one. Wow what a difference a good crossover makes!

Zaph Audio ZDT3.5 center channel, shallow:






post #974 of 1121
New guy here, and I must say there is some beautiful work in this thread. WOW!
post #975 of 1121
deewan That is some amazing work!
post #976 of 1121
Quote:
Originally Posted by helicopterpilotd View Post

New guy here, and I must say there is some beautiful work in this thread. WOW!

+1 I cant wait to start my first build!!!

Forgive the stupid question: Will i need a soldering iron for cross-over assembly?
post #977 of 1121
Yes a soldering iron is VERY helpful.
post #978 of 1121
Quote:
Originally Posted by deewan View Post

Yes a soldering iron is VERY helpful.

Thank you!
post #979 of 1121
Screen removed showing my DIY sealed subwoofers.

Poplar cylinders capped with 1.5" of Russian birch (30 plys)
8 Poplar legs & 3/4" Russian birch baseplate
Duratex coating
4.7 cubic feet internal
Acoupower 18" drivers each fed with a bridged Crown CE4000

Currently pulling double duty as a center channel stand!



LL
post #980 of 1121
Quote:
Originally Posted by Vinculum View Post

Screen removed showing my DIY sealed subwoofers.

Poplar cylinders capped with 1.5" of Russian birch (30 plys)
8 Poplar legs & 3/4" Russian birch baseplate
Duratex coating
4.7 cubic feet internal
Acoupower 18" drivers each fed with a bridged Crown CE4000

Currently pulling double duty as a center channel stand!

They look OUTSTANDING!
post #981 of 1121
Those look really industrial Vinculum, very cool.
post #982 of 1121
Thanks guys. I was going for the industrial look! They hide behind a screen, so you really don't see them.
post #983 of 1121
This is my my 4.3 cubic foot vented enclosure I made for the 12 inch RE Audio SE-x and a 240 watt Dayton plate amp. Not exactly pretty to look at, but this is my first time doing any sort of finish on an enclosure, so it's to be expected. I had more pictures, but I seem to have deleted them, this is all I have left. These were all taken with my phone, so excuse the blurriness.




The RE Audio SE-x 12D2.

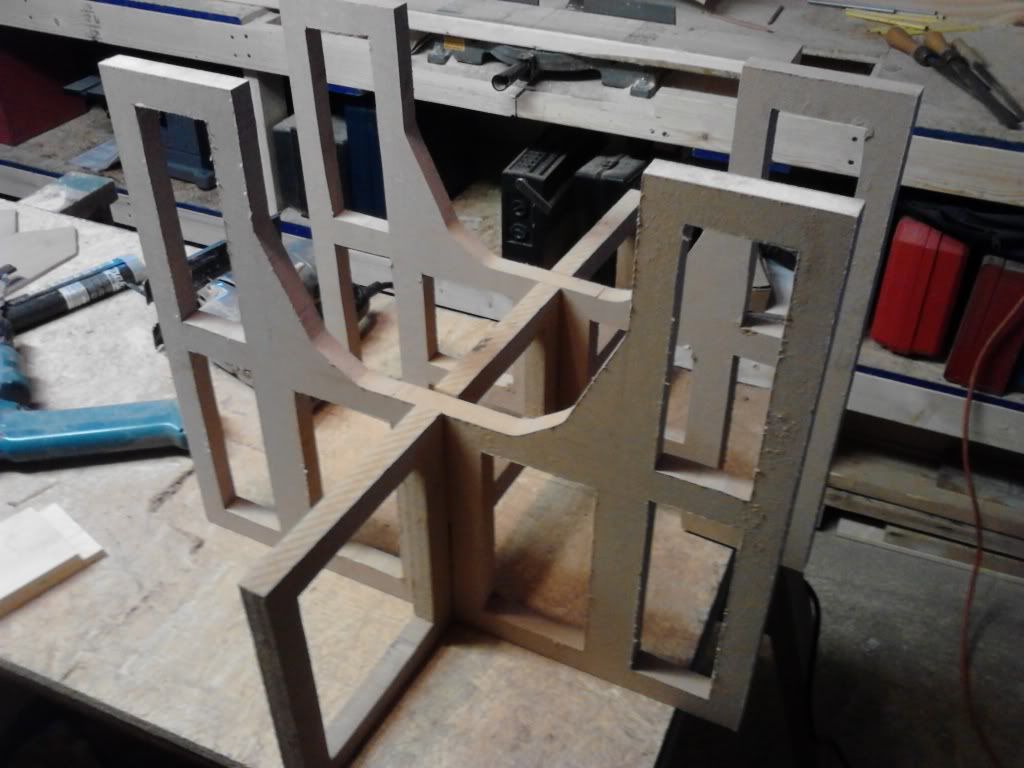

This is the internal bracing. Made from 3/4 inch MDF. The baffles were made from 2 3/4 inch boards glued together to make 1.5 inch baffles. With the exception of the bracing (I cut those out myself) all the wood was cut to precise measurements at the lumber yard for no extra charge.



Don't bash the wallpaper, lol. It's a rental house and we aren't allowed to change it.

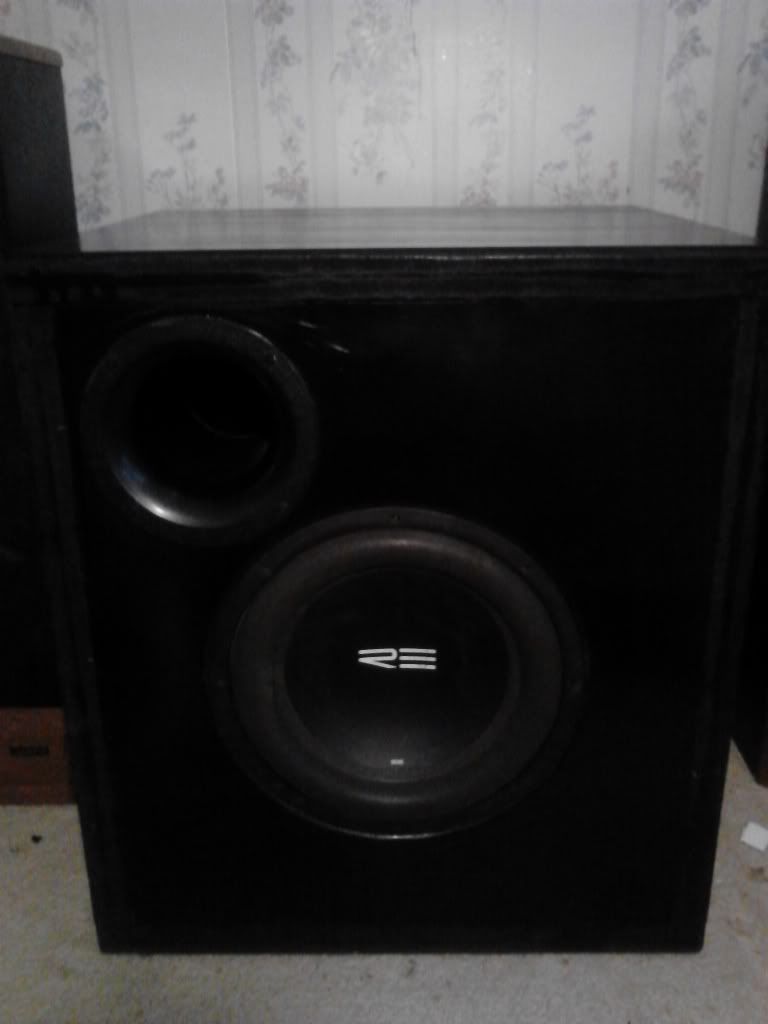

The finished enclosure. I told you it wasn't pretty. There is some damping material on the rear baffle. The port is tuned to 29hz. It also has inch and a half toe spikes.

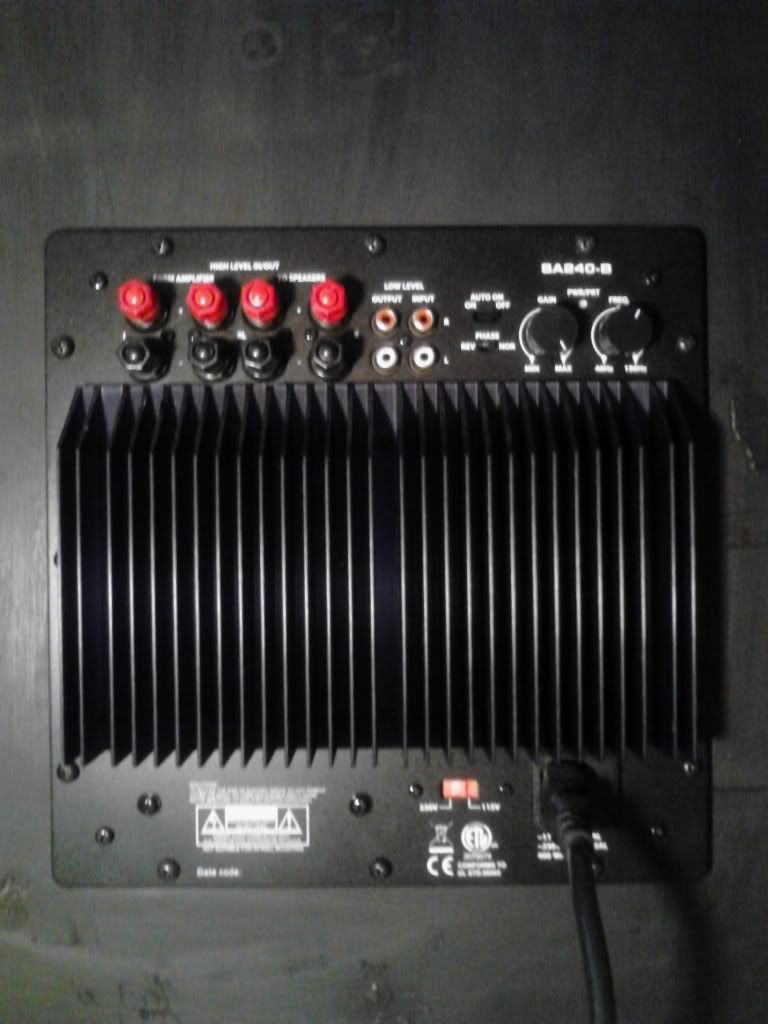

The amp is mounted on the rear of the enclosure. It is receiving an amplified signal from my Kenwood M2a.

All together, this project cost me somewhere around $400. I'm not sure exactly, I'd have to dig up my receipts to get the exact cost. But it was somewhere in that region.
post #984 of 1121
something im building for a friend of mine .

Arvus 8" drivers, and polk audio tweeters

















post #985 of 1121
ninetalesnwf, there are simple photo editing software or (even using Photobucket) to resize your images. Makes it much more user friendly on forums. I generally never post anything on a forum that is wider than 1000 pixels.
post #986 of 1121
fixing the size problem now, sorry about that.

Bit rushed to get out the door, didnt look after posting

will have to wait till i get home, im synced into my cell phone for internet Bit slower haha
post #987 of 1121
These are amazing. I had no idea making speakers from scratch could be added to the ever growing list of DIY projects! Not only that, but these speakers (at least by appearance) look legit! They look like something you would have to buy from a fancy store. Plus I'm sure the effect they have in the room make it so worth it.
post #988 of 1121
Im new to this section of the forum though i have come over a few times to look at the diy projects which i really find interesting . There are some amazing home built speakers here. I myself dont have a woodshop to speak of but did manage to build myself a center channel.Most of the work was done at the shop where i work and the rest on the kitchen table.Just beforre christmas I bought myself some floor standers and they came with the wrong drivers,the manufacturer sent out new drivers and let me keep the old ones. With all these on hand i decided to build a new center channel. I used REW and X-over 3 to design the crossover . I am still waiting on my veneer to show up but thought i would share what i have done so far.



















Now vennered ,stained and poly


post #989 of 1121
dankan32 - You enjoying yourself?
post #990 of 1121
Sealed Dayton 15" HF.
115litres,25mm mdf cabinet,50mm mdf baffle,carbon finish
