Randito3's Home Theater

post #1 of 44
Thread Starter
Finally figured out how to put some pictures up so here it goes. These are just a few pictures of my home theater being built.

Outside pictures first

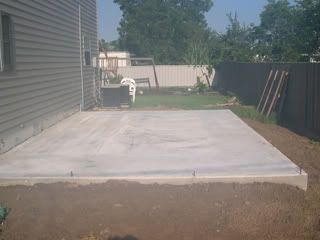

Cement poured


Putting walls up


Putting up plywood


Ready for the shingles!




Shingles up, ready for the siding


Almost complete


Only things left to do on outside are put up fence on the side, fake window/shudders, and landscaping.
Next post will be the inside pictures.
post #2 of 44
Thread Starter
Pictures of inside being finished

The corner where my AC is going to go


Putting in my Can lights and running some wires


Can light over seating and the Projector support


A picture of the insulation installed and sheetrock started. My wife and father in law decided to try and do the insulation while I was at work. Notice how the insulation is actually over the studs instead of the inside.


Finishing the sheetrock, did not take pictures of the green glue, wish I had done that, but I was tired.


A picture, priming the walls


Stage and riser are built, front screen area almost done and AC unit installed. Walls painted.



Picture of riser after carpet in, and my wife put in some rope lights


Picture of stage area with speakers in..not the best picture..still need finishing touches to stage area wall.


The dimmer switches put in that controls the four zones


next post will be some pictures I have taken of the finished room.
post #3 of 44
What a great idea adding on to the side of the house like that.
I'm doing mine in the basement.
You said you used Green Glue, so you used two layers of drywall then, what were the thicknesses?
Also, the insulation looked like it was taped over the studs. How did you secure your drywall to the studs if you didn't glue it?
Thanks for the posts, looks great!
post #4 of 44
Thread Starter
These are pictures taken of the finished room, sorry about the size and quality, but you should get a good idea of the room.

The screen:


Screen and stage


The right wall, Only thing left to do here is find something I can cover the ac with to darken it.


Another picture of the right wall with Acoustic panels up. The surround speaker wire is now covered and so is the plug.


Picture of the left wall and screen. I'm standing close to the entrance door


Here are a few pictures of a movie playing while the side lights and seating lights are on.




This picture was taken only about 4 foot from the screen



I also have a video you can check out its only about 3.6 megs and it shows my room right before I completed the final touches in it. It gives you a better Idea of how the room really looks. Here is the link to it if interested.

http://s104.photobucket.com/albums/m...HTnew_0002.flv
post #5 of 44
Thread Starter
Quote:
Originally Posted by Monsters View Post

What a great idea adding on to the side of the house like that.
I'm doing mine in the basement.
You said you used Green Glue, so you used two layers of drywall then, what were the thicknesses?
Also, the insulation looked like it was taped over the studs. How did you secure your drywall to the studs if you didn't glue it?
Thanks for the posts, looks great!


I used two layers of drywall 1/2". My wife and her dad did staple the insulation over the studs but it was just the flap, we put the drywall up with screws, finished it and added the other drywall on top with the green glue. GG works great! Its really the only thing i used to block the sound and I'm very satisfied.


Randy
post #6 of 44
Cool beans, looks fantastic.
I'm doing the DD and GG in my basement. It's expensvie stuff, better keep the sub out. I've been in bands my whole life and nothing we've tried had stopped sound.
post #7 of 44
Thread Starter
In case anyone wonders, the screen is the Dalite High Power 115" diagonal. Speakers are Axiom, wall panels are 2" thick rigid fiberglass and 2' x 2' wrapped in deep burgundy GOM. Oh yeah, projector is the Panny 900.
post #8 of 44
Swwweeet! How long did it take to build? Did you DIY or have contractors?
post #9 of 44
Thread Starter
A friend and I built it, he did all the hard work, I was just his helper. We did all the work on it. My wife and I were going to do the drywall ourselves, but my wife chickened out so I actually hired someone knowledgeable to give me a hand with it. Drywall actually took 3 days to do including finishing.

Edit: We started gathering materials and forming the foundation the end of June, we finished everything beginnning of September. Rain was our biggest enemy during July and pushed us a few weeks behind, because of the rain and having to work.

Randy
post #10 of 44
Nice theater!!
What are the dimensions and could you give me aprox bld cost? If you want you can PM build cost?

Thanks,
Scott
post #11 of 44
It looks really great, but I am curious why would you put the AC on the floor? normally you want AC as high as possible since heat rises and cold sinks.

What is the paint color by the way it is really nice.
post #12 of 44
Thread Starter
Quote:
Originally Posted by McCall View Post

It looks really great, but I am curious why would you put the AC on the floor? normally you want AC as high as possible since heat rises and cold sinks.

What is the paint color by the way it is really nice.


Thanks for the comments


The AC unit is a PTAC unit and is designed to be placed low. I originally was going to put my central AC in the room but having to tear the ceilings out of my main house and redo them was way beyond my budget. I then thought about doing the split units, but after researching them and having to pay someone to install (for the warranty) it would come out to be $2500-$3000 to do that. I had a friend at work that does AC work on the side and he recommended I get a PTAC unit for my room. They are similar to the units found in hotel rooms. This unit is 14,000 btu cooling and 3.5 k/w heating. He told me it would be more than enough to cool my small room and it's so easy to put in that I could do it and he'll warranty it for me. I paid $842 his cost and he delivered it. He is right, It freezes the room. Its perfect for me, I put the temperature at 68 and in a few mins the room is cold. Another good thing, This unit is super quiet. I dont hear it hardly at all during the movies. The reason I placed it up front and to the side is because I did not want any direct cold air blowing on people watching the movie. The way it is, it blows up and to the left wall.

The paint color is called Ancient burgundy, it actually looks ten times better in person than on the pictures or video. The key to getting it to look good is to use the dark primer, a lesson my wife said she learned by trial and error in the past.


Randy
post #13 of 44
Thread Starter
Quote:
Originally Posted by scottyb View Post

Nice theater!!
What are the dimensions and could you give me aprox bld cost? If you want you can PM build cost?

Thanks,
Scott


My room dimensions are 13'w X 18.5'L x 9' tall.

Would you want the total build close for everything or just the room itself?


Randy
post #14 of 44
How many seats you get in there?

Nate
post #15 of 44
Quote:
Originally Posted by Randito3 View Post

My room dimensions are 13'w X 18.5'L x 9' tall.

Would you want the total build close for everything or just the room itself?


Randy

Just the room itself, please,

Thanks,
Scott
post #16 of 44
Nicely done. I'm sure you're enjoying it. Very interesting way to mount the panels on the bias with square panels and beveled edges. Very unique indeed.

Bryan
post #17 of 44
Thread Starter
Quote:
Originally Posted by scottyb View Post

Just the room itself, please,

Thanks,
Scott


The room was around $9k



Randy
post #18 of 44
Thread Starter
Quote:
Originally Posted by bpape View Post

Nicely done. I'm sure you're enjoying it. Very interesting way to mount the panels on the bias with square panels and beveled edges. Very unique indeed.

Bryan


Thanks Bryan. I love the room and everyone that sees it loves it. I now have about six people asking me to help them put one together.

I really owe it to everyone here for helping me, I could not have done it without this forum. I've read many messages and I thank everyone for posting their thoughts and ideas.

Randy
post #19 of 44
Hey Randy,

Nice variation of the wall treatments. Looks very good.
post #20 of 44
Thread Starter
Quote:
Originally Posted by Nasty N8 View Post

How many seats you get in there?

Nate


Nate,

I have 6 seats in the theater.


Randy
post #21 of 44
Thread Starter
Quote:
Originally Posted by bkdoc View Post

Hey Randy,

Nice variation of the wall treatments. Looks very good.


Thanks bkdoc, appreciate the comment.


Randy
post #22 of 44
Where's the sense of drama here? Don't you know you're supposed to start your thread, make a little progress, then go into hiding for a year or so, before making a triumphant return for the big finish??

Looks great Randito!! I too like your acoustic panel wall treatments, works very well visually. Curious about the A/C unit too - I'm building in half of our detached garage, so central A/C is not an option - was looking into split A/C units, but someone mentioned they are loud, which is not good - dunno if that applies to all/most or just some of the splits.
post #23 of 44
Thread Starter
Brad,

I heard the split units were really quiet. Dont know for sure, I just know they are really expensive. The PTAC unit I use is really quiet. I was surprised when I first used it. If you would like anymore specific information on the AC I use let me know.

I know people like to post pictures while they build, I was going to do that but got caught up with work, family, and building.



Randy
post #24 of 44
Hi Randy,
Excellent HT Room, you must have a great sense of pride every time you start a movie or your mates come for a visit. I am getting a house built with a HT and Ive told the sparkies to place the power point and cable connections on the ceiling 3m
back from the front wall(9.84 feet). I have a Panasonic projector same as yours on lay-by, I just wanted to know how far away you had to place the projector from the screen to get the best picture . Please excuse me if you have already mentioned this in your thread. And by the way how does the projector perform( I have heard great reviews but alas havent had the chance to see it perform in its element only in a highly lit sales room.

Hope you get years of fun from your room,

P.S Justed watched the newly released DVD Zathura With the Kids .What a great Subwoofer Movie.Highly reccommended(wait on, that DVD was probably released 2 years ago in America, it takes a while for things to make their way to the bottom of the earth.)


Matt
post #25 of 44
Quote:
Originally Posted by Randito3 View Post

Brad,

I heard the split units were really quiet. Dont know for sure, I just know they are really expensive. The PTAC unit I use is really quiet. I was surprised when I first used it. If you would like anymore specific information on the AC I use let me know.

Thanks Randito3, I would appreciate any other information you might have on your A/C unit, so I can do a little research. I'm creating a separate thread to try to gather input from others who have used room A/C units, if you could post a reply there, that would be great!
post #26 of 44
Thread Starter
Quote:
Originally Posted by MATT LUKA 73 View Post

Hi Randy,
Excellent HT Room, you must have a great sense of pride every time you start a movie or your mates come for a visit. I am getting a house built with a HT and Ive told the sparkies to place the power point and cable connections on the ceiling 3m
back from the front wall(9.84 feet). I have a Panasonic projector same as yours on lay-by, I just wanted to know how far away you had to place the projector from the screen to get the best picture . Please excuse me if you have already mentioned this in your thread. And by the way how does the projector perform( I have heard great reviews but alas havent had the chance to see it perform in its element only in a highly lit sales room.



Matt

Matt,

Thanks for the comments, I still have people coming over to see the room and so far they all love it. My daughter who is 14 brought some friends from school to watch a movie not to long ago. Before they saw the room she would say they need to come over and watch a movie in her theater room, they would all tell her "You mean your Movie Room, its not like a theater. After they came over to see a movie they went back to school telling their friends that they have to see Skye's "Theater Room." She got a kick out of that.


My projector is about 16 feet from the screen. The Panasonic produces a fantastic picture and the screen is 115" diagonal High Power. I do not have the right setup for the High power (my projector being ceiling mounted) but the picture is fantastic.

Randy
post #27 of 44
Thanks for the reply Randy.
have scrapped the Panasonic 900 for the PT-AX100E which I am picking up tomorrow. On Ebay Australia you can pick up the projector, 100" screen and roof mount for about $2250 U.S.D. An offer I couldnt Refuse. Even though it is still 4-5 months before my house gets built I couldnt wait any longer!. I think it is almost time for a Lord of the Rings Marathon Movie Session.


Matt
post #28 of 44
Looks really nice. I hope my next theater is on the ground floor or at least out of the basement. Of course there are things I could do different next time in the basement like sink the floor, higher ceilings a must, and more width at least 15' for me
post #29 of 44
Very nice,
I was going to do the ceiling like you did your walls. You may have confirmed my intentions.

Very clean and unique, nice to see something creative done without columns and your colors are very close to my plans as well. Your thread actually helps me alot in my desisions.

Thanks
post #30 of 44
Thread Starter
Quote:
Originally Posted by Mark P View Post

Very nice,
I was going to do the ceiling like you did your walls. You may have confirmed my intentions.

Very clean and unique, nice to see something creative done without columns and your colors are very close to my plans as well. Your thread actually helps me alot in my desisions.

Thanks

My walls and ceilings are painted the same color. Everyone that comes over to look at it thinks the ceiling is a much darker color, but its just the way the can lights make it look. Glad I could help you.


Randy
