Show us your screen walls - Page 23

post #661 of 857
Quote:
Originally Posted by Larry M View Post



How is the picture brightness?

I was afraid that it would be dim but it works great since i can lightcontrol the room!
post #662 of 857
Thought I would share too:






post #663 of 857
That looks awesome! Whats the screen size and how far away is the listening position?
post #664 of 857
Quote:
Originally Posted by JonasHansen View Post

That looks awesome! Whats the screen size and how far away is the listening position?

Thanks!

Room is 13.5' x 19.5'. Front row is at 12'. Screen size is 110" wide 2.35:1 SMX Acoustically Transparent Procurve-20 degrees with a JVC RS25 and Prismasonic Anamorphic Lens.
post #665 of 857
Quote:
Originally Posted by marklabelle870 View Post

Thought I would share too:

Mark,

Is that Scarlet in your theater? You guys actually have a chance Saturday, then comes Urban...!
post #666 of 857
Quote:
Originally Posted by tbraden32 View Post

Mark,

Is that Scarlet in your theater? You guys actually have a chance Saturday, then comes Urban...!

There is NO way I would ever have scarlet in my theater. It's Burgundy! If my wife would have let me, it would been Maize and Blue my friend.

I am looking forward to the game next week. I'll be there...!
post #667 of 857
Next week? Game is tomorrow...!

Go Bucks!
post #668 of 857
Go Green.
post #669 of 857
Now that I'm finished with the screen wall, I guess I'll trow some photos into the mix.

BTW- there are some seriously impressive theaters and screen walls in this thread!!

Before the screen was mounted:


Screen Shots:




From the entry way of the theater:

post #670 of 857
Quote:
Originally Posted by MysticalJet View Post

Now that I'm finished with the screen wall, I guess I'll trow some photos into the mix.

BTW- there are some seriously impressive theaters and screen walls in this thread!!

Great job!

What type of screen and what fabric did you use to surround the screen? It looks like a perfect blend from the frame fabric
post #671 of 857
Quote:
Originally Posted by Larry M View Post

Great job!

What type of screen and what fabric did you use to surround the screen? It looks like a perfect blend from the frame fabric

Went with the Seymour AV Centerstage XD AT material. Since the screen is AT and speakers are behind the screen and subs will be elsewhere in the room, I was able to use fabric that is not completely AT - so I used microvelvet - same as what was used for the screen frame.
post #672 of 857
What is everyone putting on their screen wall for acoustics?

Looks like OC in the corners as traps, but what is directly behind the screen?
post #673 of 857
Quote:
Originally Posted by Larry M View Post

What is everyone putting on their screen wall for acoustics?

Looks like OC in the corners as traps, but what is directly behind the screen?

It's a painful, long read. But it has the answer. I wish someone would condense it. It's almost too big to be of any use. Need a cliff notes version:

http://www.avsforum.com/avs-vb/showthread.php?t=255432
post #674 of 857
Quote:
Originally Posted by GetGray View Post

It's a painful, long read. But it has the answer. I wish someone would condense it. It's almost too big to be of any use. Need a cliff notes version:

http://www.avsforum.com/avs-vb/showthread.php?t=255432

Yeah I read that about 2 years ago when we had 30"+ of snow and I took notes on what I would do...guess what happened to the notes
post #675 of 857
Quote:
Originally Posted by Larry M View Post

What is everyone putting on their screen wall for acoustics?

Looks like OC in the corners as traps, but what is directly behind the screen?

Many people, myself included, have put 2" rigid fiberglass or linacoustic on the back wall. I'm still not sure how necessary this is, but it seems to be commonly done and is very easy to do because it's hidden.

Greg
post #676 of 857
Quote:
Originally Posted by GetGray View Post


It's a painful, long read. But it has the answer. I wish someone would condense it. It's almost too big to be of any use. Need a cliff notes version:

http://www.avsforum.com/avs-vb/showthread.php?t=255432

It's also muddied by fanatical debate on the theory and the scientific background.

Its quite annoying really I personally have three science degrees and none of my collegues would disagree with each other as on as many fundamental principles as those "experts" found in that thread. They all quote papers as though they wrote them and understand them for that matter......

Focus on the low hanging fruit, there really should be a separate thread so that they can have that thread to babble on about their theories which is all I ever seem to glean from that thread.
post #677 of 857
Not to continue off-topic much longer but there is one expert there I have the highest regard for. Erskine. If for no other reason, I believe he has more commercially engaged HT experience than the others put together. He's also on the board at CEDIA and has an extremly strong background in the industry. Not to say the others are to be discounted by any means, but if I had to pick one to listen to, he's got good credentials. FWIW, I think he says 2" on the front wall is usually too much. Depends on the room details though.

I forgot about Bryan Pape. I've seen him participate and help a lot of folks on this and other forums. People appear to be happy with his work.
post #678 of 857
There is a very real and potential problem with over-dampening a room (especially the first reflections) and killing the natural, enveloping sound stage created by the original recording and the speakers themselves.

Some panel manufacturers are trying to limit that with their newest designs.

I believe Denise Erskine has talked about trying to find a happy balance.
post #679 of 857
Finally.. A post in a "Show me thread"





New Camera.. Just need to figure out how to take better shots in low light
post #680 of 857
Quote:
Originally Posted by KNKKNK View Post

Finally.. A post in a "Show me thread"

New Camera.. Just need to figure out how to take better shots in low light

Just an amazing DIY room....! Congrats..!!!
post #681 of 857
Quote:
Originally Posted by KNKKNK View Post

Finally.. A post in a "Show me thread"





New Camera.. Just need to figure out how to take better shots in low light

Not too shabby

well my dinner plans are set...read KNKKNK's build thread
post #682 of 857
Quote:
Originally Posted by KNKKNK View Post

Finally.. A post in a "Show me thread"

New Camera.. Just need to figure out how to take better shots in low light

What a nice theater. I like the ceiling color, not too dark, but still very rich looking and dark enough to help limit reflections. Just read your build thread. Did you go with the Ralph Lauren Suede series? If so what color is it?
post #683 of 857
Quote:
Originally Posted by G-Rex View Post

What a nice theater. I like the ceiling color, not too dark, but still very rich looking and dark enough to help limit reflections. Just read your build thread. Did you go with the Ralph Lauren Suede series? If so what color is it?

The ceiling is a flat brown from SW, (painted so long ago I don't remember the name of the shade) I liked it when the wife first chose it, however l dont feel it blends well with the color I dyed the wood. I had planned on repainting it earlier, but decided to put it off until I built the center piece for the ceiling.. (phase 2)


Brad
post #684 of 857
Agreed.... WOW! Nice room Brad!
post #685 of 857
Here's our 2.35:1 set-up, this gear is late 2007/early 2008 stuff, still works and paid for
(Maybe 2014 "update-itis" for 3D might hit in...)
Projector: Sony VPL-VW60
Anamorphic Lens
: Panamorph UH380, mounted on DIY manual slide.
Screen
: DIY 130" diag 2.35:1 curved screen
Masking
: DIY Manual for 16:9, HT V2 will incorporate some power masking

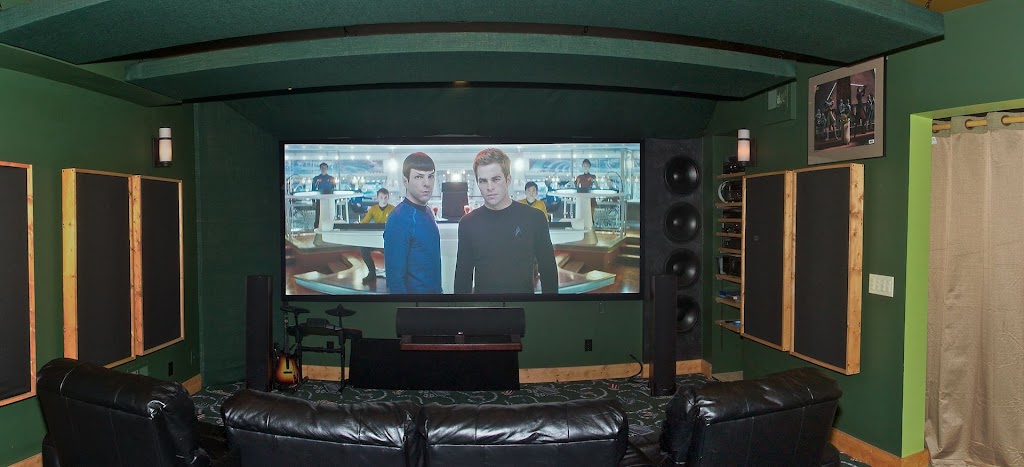

View of 130" scope screen, manual 16:9 masks are stored below center speaker when not used as seen here:
(Panorama stitching via CS5 made the ceiling acoustic clouds looked curved, they are flat...)


View of rear:

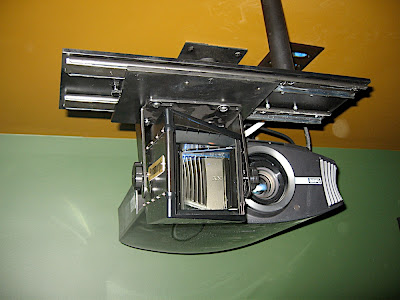

View of DIY a-lens slide:


The walls are dark green with ceiling dark brown, since we live in a loghome I tried to keep the nature theme going in the HT.
Used stained pine for baseboard and acoustic treatments.
post #686 of 857
anyone know the ledge light that point at the ceiling in these picture is Black light or LED rope light? if its black light is there place to buy black light rope?

Quote:
Originally Posted by SmX View Post

Mostly everyone here has probably seen my screenwall, but for those who haven't...

140" Wide 2.40:1 SmX ProMask-Curv masking screen.





Ruben
post #687 of 857
Quote:
Originally Posted by s002wjh View Post

anyone know the ledge light that point at the ceiling in these picture is Black light or LED rope light? if its black light is there place to buy black light rope?

Those are screen shots from Ruben's thread and as such makes me believe it's LED blue rope light. He's the one that gave me the idea to use it in my HT. I think the last place I ordered from was birddog.com. Make sure you get the LED flavor and not the incandescent. The LED version will last longer and use less electricity, although it will cost more up front.
post #688 of 857


post #689 of 857
Looks level.
post #690 of 857
Hanging the cables in a bag helps keep the bears away too.
