At this point, I'm thinking April .. ?

Iusteve,
The brave gentlemen in the bottom photo are invited and are MOST welcome. However the top photo is also one way to get "disinvited"

jayn_j,

Assuming this comes together your welcome to join!

Started a separate thread for my next winter project; a low profile/low voltage/lighted poster box, lots of alternative suggestions and inputs located here:
http://www.avsforum.com/avs-vb/showt...6#post21630406

So here's the results of my first day's work:

While at my local mill-work shop picking out my hardwood trim I spotted this 1.5" thick particle board stair tread riser (perfect thickness to accommodate the depth of my light-box, and was cheap). Ripped it to the appropriate width and away we go.
This thing has to be as square as possible.


Here's what I decided for the frame profile, two different styles of Oak trim glued up as shown here


And with the Spotlight frame positioned (not yet sure if I will be going gold or black). Gold may be a bit overpowering, where the black might look like a matting surrounding the poster:

Will likely go with a band of Oak Veneer trim

Another update: Got a chance to install the LED strip lights, here it is with 3 strips (900 Leds), of the intended 4.



And with 3 (of 4) illuminated:



My fourth string was added temporarily for this proof photo (unfortunately it is temporary, because it is the warm color instead of bright white, need to place another order).

If you look closely you will see a faint border just inside the frame edges. This faint border is the outline of my "undersized/temporary" diffusor panel. These LED strips are really intense (as opposed to the rope style). Therefore; it will be necessary to add a cheap diffusor panel against the backside of the artwork.

I was worried that they might be hard to work with. However; they are all pre-attached to a very sticky 3M backing tape, and were flexible enough to make the u-turns at the end of the box. The 4th strip (warm color - temporary), was used to finish off the upper right corner, I then ran it around the inside perimeter of the frame.

What you see in the photo is spaced on 1.5" centers. If I were to do it over I would go with a 1" or 1.25" spacing in order to squeeze all 4 strips directly onto the backer board, skipping doing the perimeter.

As for powering them, my little 2amp switching supply is doing the job, but after several hours was a bit warmer than I would like (might have to located a higher output PS)

Thanks! 3 is the sweet spot for cost, A 4x8 sheet of stock would allow for 3 units with minimal waste (ie. the thick frame of particle board, and for a diffuser panel).

However; This will likely be a one off (collectible), just like the SVS pub-table

Thanks RT
Yikes! I wasn't scared till now!!

Wow - Take one week off for business trip, return home sick, one week to recoup, and found out this thread "free-fell" to page 4. Actually not to tease; but I'm within one week of posting my lighted poster-box, ticket-window "finished photos"

Queen/RT,

Thanks you both for holding me to a "proof of progress" update. I am sorting out my best photos now, and will post soon, I promise.....

OK that was a refresher (my last progress update). The very next posts will show the 2nd half of the story

So you may recall I chose to go from 3 strings and 900 Leds, to 4 strings (1200 total).
Here is the result with 4 strings:


I then added a hidden switch to the underside edge, lower RH corner.
The apparatus I cobbled together as a feed thru thru the frame:






Next up was to obtain a proper diffusor. The spotlight frame comes with 2 thin plastic sheets that you sandwich the poster between. For my diffusor I substituted the back clear sheet with a 1/16" thick sheet of white acrylic material:


Here's the illumination with and w/o the diffusor:


A few shadows from the internal wiring - these shadows seem to disappear when a poster in in place

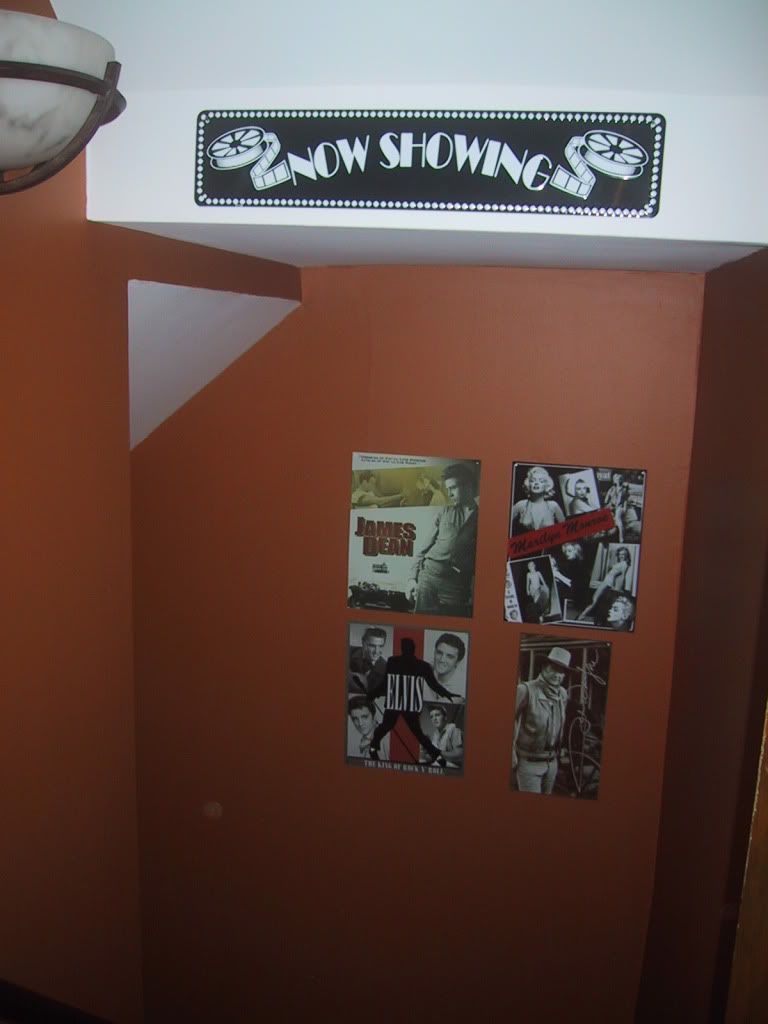

Before showing the final result mounted on the wall, this is my landing before:


And afterwards:

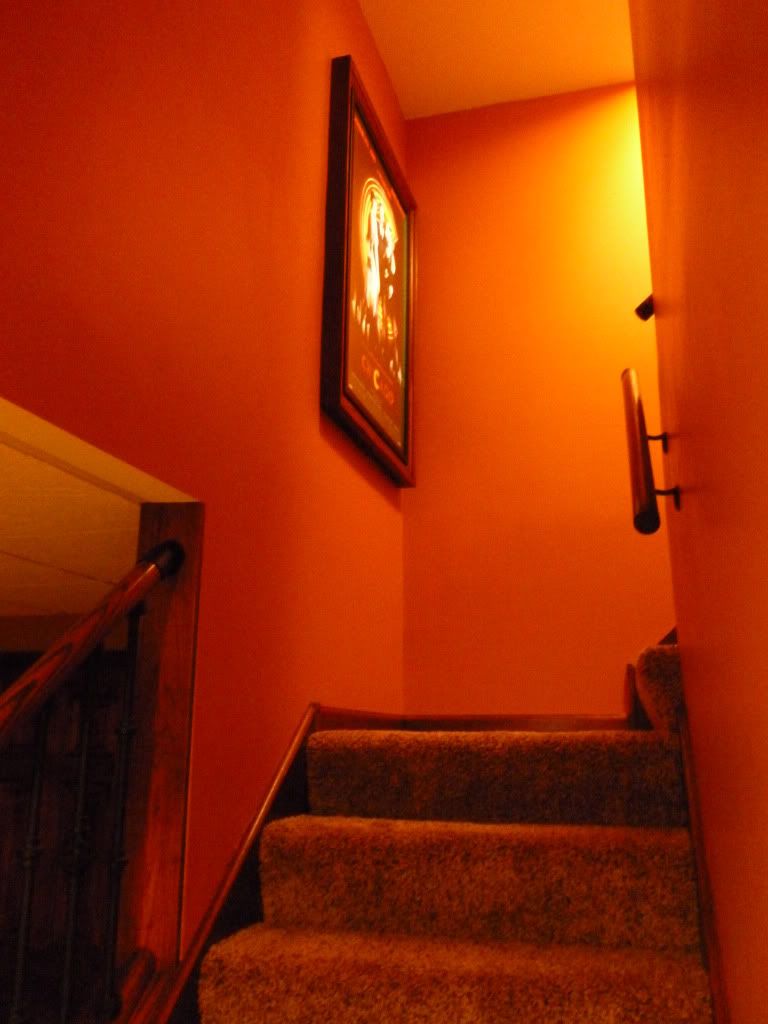

Probably about the darkest poster that I will ever display

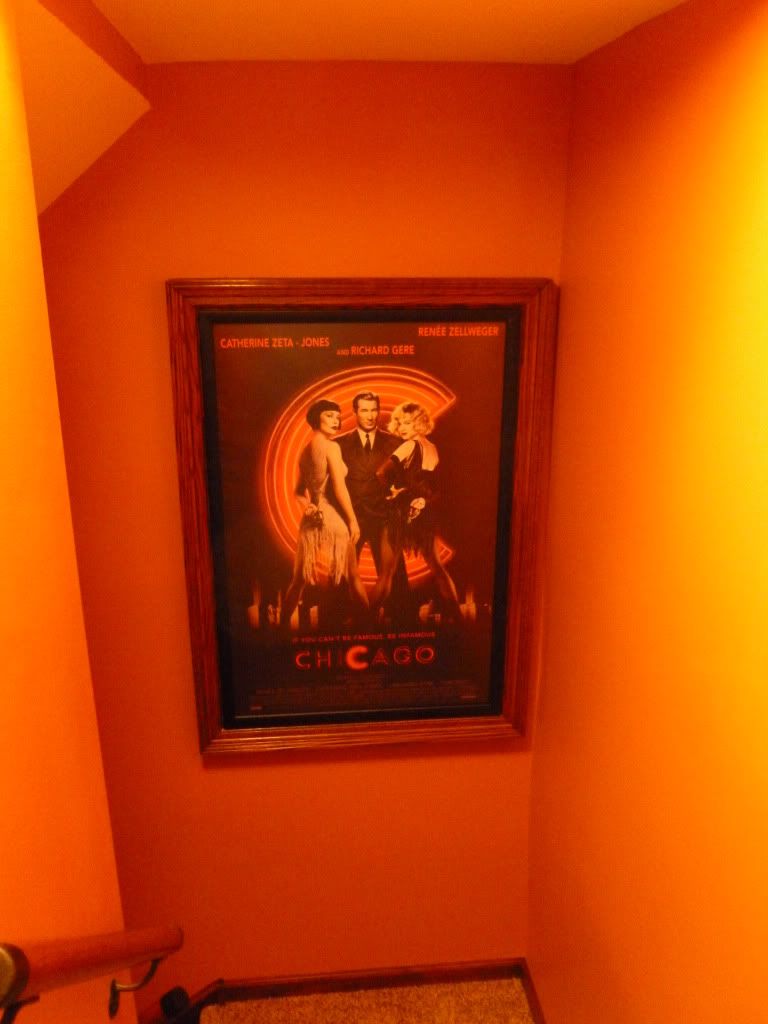

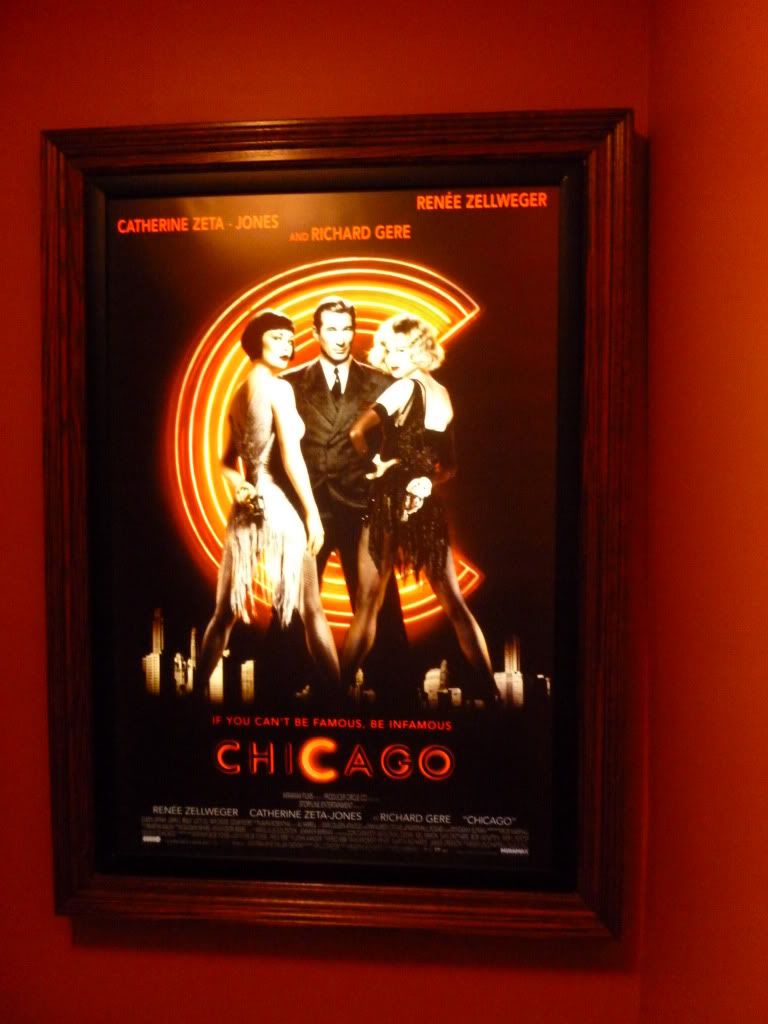

And with a lighter color poster:


And this is still a work in progress. Pretty sure that "ChinaDog" was the one who did the original ticketbooth artwork. I had a friend photoshop/merge a photo into the ticket booth. Consider this version 1 (it's washed out) until I find the perfect stock to print version 2 onto.
