Harvest Ridge Theater (A CJ Project) - Page 51

post #1501 of 1627
10/11/11 at 8:38pm
maybe, here is one product

http://www.outwatercatalogs.com/lg_d...ror%20laminate

another

http://www.outwatercatalogs.com/lg_d...ror%20laminate
Reply
Reply

AVS Top Picks

post #1502 of 1627
10/12/11 at 6:27am
Would the heat from the lights effect the mirror finished plastic at all? Something to think about. Cool frames though.
Reply
Reply
post #1503 of 1627
11/23/11 at 11:17am
Quote:
Originally Posted by carboranadum View Post

As you'll remember, I got an early Father's day present...I got a Behringer Europower EP4000 Professional 4,000-watt stereo amp. This dude is a beast. It is large (deeper than I expected) and heavy (37 lbs).



I got the amp installed and connected to the buttkickers. This required adding a shelf to the rack and rewiring the buttkickers in the theater.

I am running 3 buttkicker minis on the left side, and 4 on the right. There has been much tinkering with the setup, and I'm still not happy with the results. It seems to take a lot of power to get these rolling. I had to turn up the bass 12 dB and I dropped the volume on the sub. This seemed to get me the power that I needed to make the buttkickers working. I have the volume on the amp turned up pretty high, and the buttkickers don't seem over whelming. In fact, I think I need to tinker with the setup some more to get them to begin working at a lower volume point.

I don't know what I was thinking, but this seems to require a lot of tweaking to get them working properly.

How is this amp working out for you? I am in the same boat. I ordered 3 BK1000-N's to power my 9 Buttkickers but the amps have been on backorder for ages. I'm ready to move on and go with an alternative. You have a single amp powering 7 buttkickers? I know this amp has more power than the Buttkicker one but I was figuring I would need 2 if not 3 of these for my 9 chairs.
Reply
Reply
post #1504 of 1627
11/24/11 at 11:58am
Thread Starter
Quote:
Originally Posted by NJ Jackals View Post

How is this amp working out for you? I am in the same boat. I ordered 3 BK1000-N's to power my 9 Buttkickers but the amps have been on backorder for ages. I'm ready to move on and go with an alternative. You have a single amp powering 7 buttkickers? I know this amp has more power than the Buttkicker one but I was figuring I would need 2 if not 3 of these for my 9 chairs.

I have been tinkering with my setup. On paper, the amp should power all 7 BKs, but it requires a rather large increase in the output of the sub channel. This was causing all sorts of problems getting the sound balanced. I am now powering three with this amp and have a second one on order. The amp powers three BKs very well!

I was also looking into the possibility of upgrading the amp to the Denon 4300 series due to the fact that it has two independent sub outputs (that you can tune individually). I'm going to finish playing with the two amp setup first then make a decision about the amp later.
Reply
Reply
post #1505 of 1627
11/26/11 at 6:19am
Quote:
Originally Posted by carboranadum View Post

I have been tinkering with my setup. On paper, the amp should power all 7 BKs, but it requires a rather large increase in the output of the sub channel. This was causing all sorts of problems getting the sound balanced. I am now powering three with this amp and have a second one on order. The amp powers three BKs very well!

I was also looking into the possibility of upgrading the amp to the Denon 4300 series due to the fact that it has two independent sub outputs (that you can tune individually). I'm going to finish playing with the two amp setup first then make a decision about the amp later.

The BK amp (BKA1000-N) is a single channel amp and is 1000W at 4 Ohms and supposedly powers 4 Buttkickers. The Behringer Europower EP4000 is a two channel amp with 1400W at 4 Ohms per channel. On paper this amp should power 8 Buttkickers (10 really but there is no approved wiring configuration for 5 BKs on a single channel). You are running in parallel mode (bridge mode off) with low cut filter set to OFF, correct? Without having the benefit of trying one myself yet, I'd probably turn the clip limiter to OFF as well. Clipping the high end at 30 or 50hz seems way too low.

I notice you also have the minis. I have the LFE version installed on my chairs.
Reply
Reply
post #1506 of 1627
11/27/11 at 3:33pm
Thread Starter
Quote:
Originally Posted by NJ Jackals View Post

You are running in parallel mode (bridge mode off) with low cut filter set to OFF, correct? Without having the benefit of trying one myself yet, I'd probably turn the clip limiter to OFF as well. Clipping the high end at 30 or 50hz seems way too low.

I notice you also have the minis. I have the LFE version installed on my chairs.

Correct. There just isn't enough power to the BK's. With the amp's gain control for the sub boosted to +12 (the upper range of it's adjustment), I can't dial the sub down enough to have it active, but not overpowering. At that level, the BK's sing, but I need to get more power. When the second amp comes in, I'll post an update.

CJ
Reply
Reply
post #1507 of 1627
12/6/11 at 8:58pm
Quote:
Originally Posted by NJ Jackals View Post

How is this amp working out for you? I am in the same boat. I ordered 3 BK1000-N's to power my 9 Buttkickers but the amps have been on backorder for ages. I'm ready to move on and go with an alternative. You have a single amp powering 7 buttkickers? I know this amp has more power than the Buttkicker one but I was figuring I would need 2 if not 3 of these for my 9 chairs.

Having previously spoke to a technical guy at Guitammer (the company that makes the Buttkicker), their 1000 watt BKAs don't perform well with just 3 Buttkickers due to some sort of electrical phenomena when they are run in parallel. They HIGHLY recommend running 1, 2 or 4 Buttkickers from the amp, but not 3. So your best configuration would be 4 on one amp, four on the second amp and then a dedicated amp for the money seat!!!!
Reply
Reply
post #1508 of 1627
12/10/11 at 7:42pm
Thread Starter
I understand. I have a friend with a setup nearly identical to mine. he's running the same amp and has it powering a row of 3. He used the wiring diagram on this page: http://www.thebuttkicker.com/buttkic...igurations.htm
Reply
Reply
post #1509 of 1627
12/24/11 at 12:36pm
Thread Starter

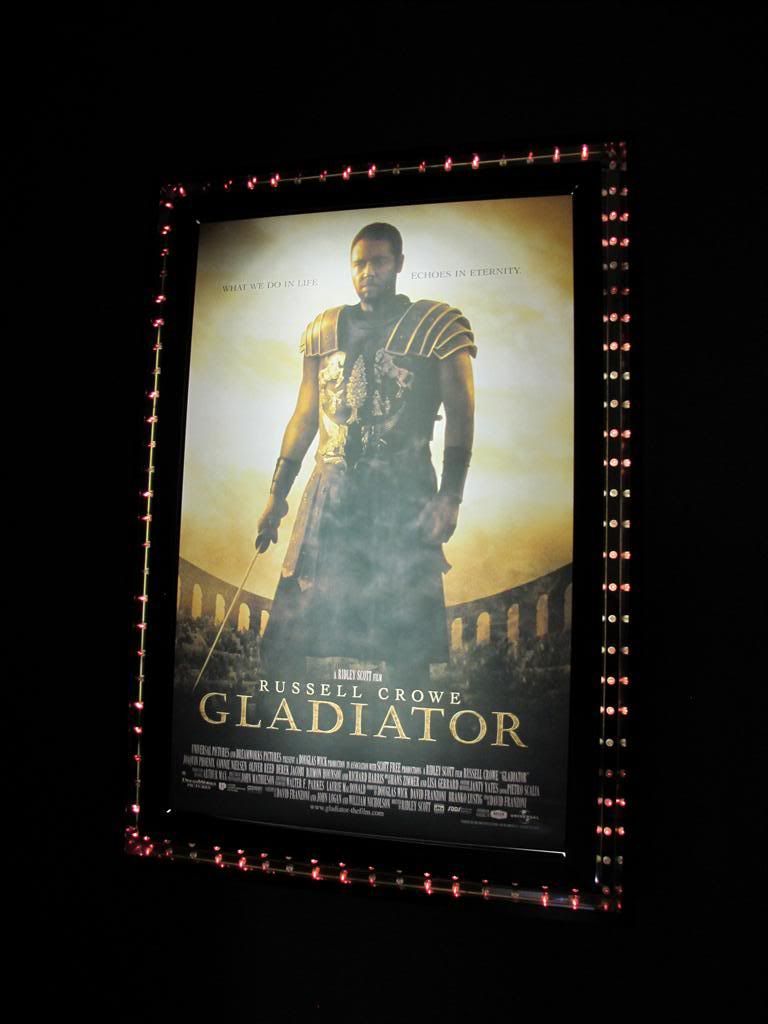

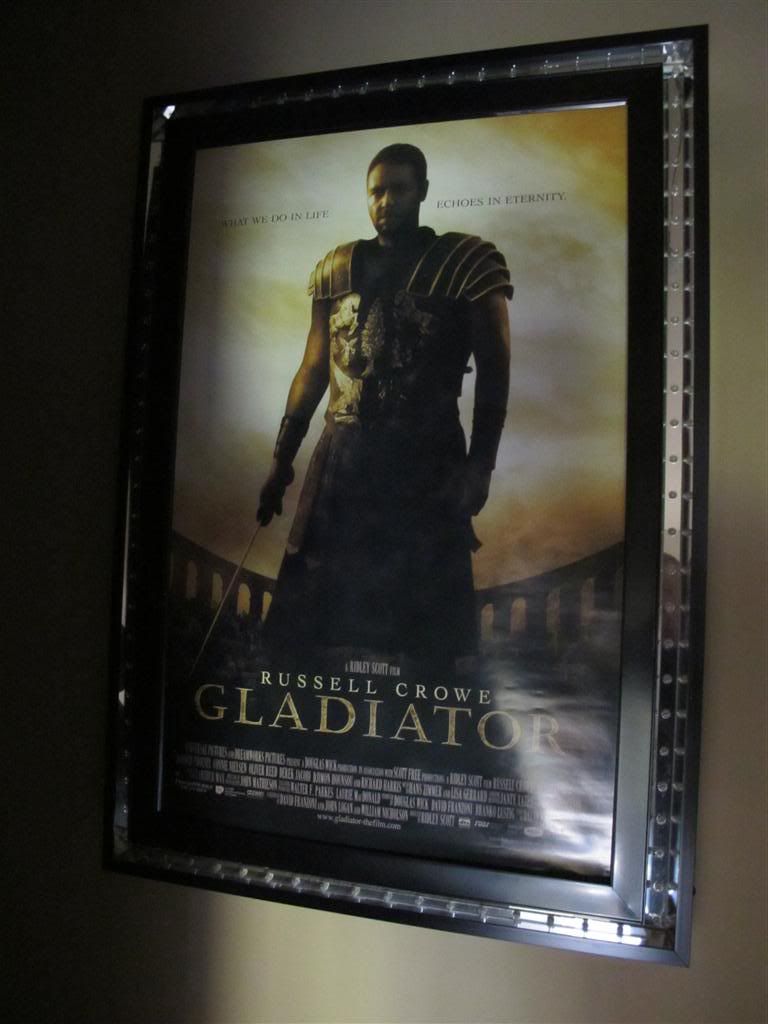

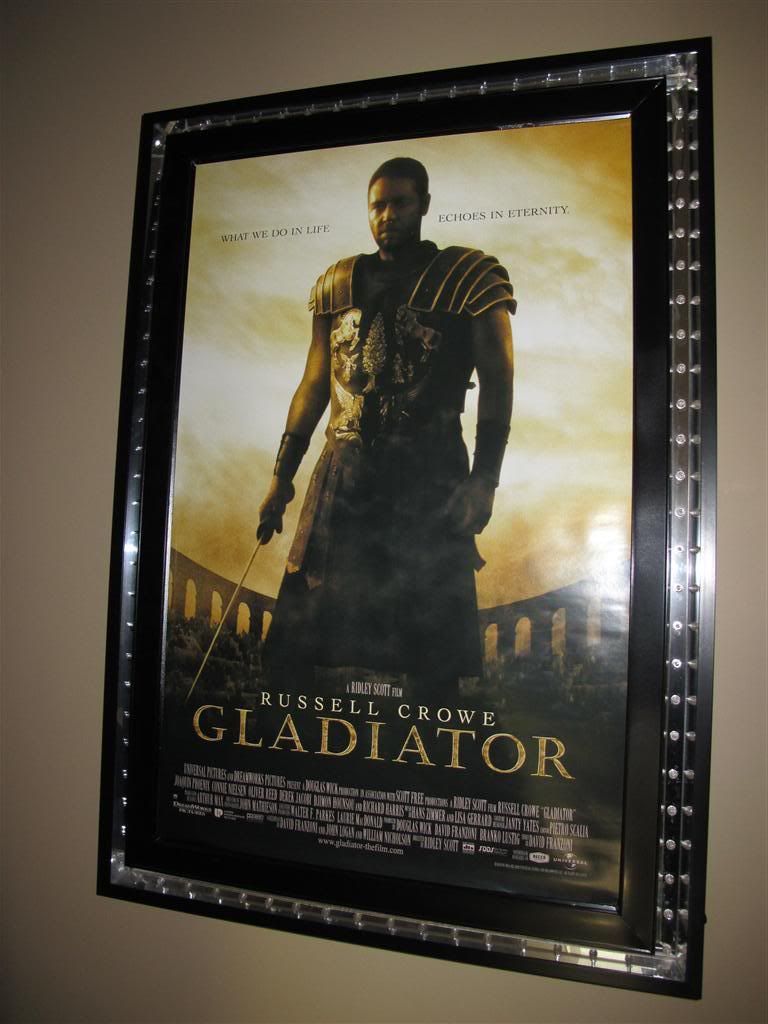

I realized that I had not posted photos of my BassIndustries Lighted Poster box refurbish. I finished this box a month or so ago, and purchased a cheap poster of Gladiator to get it up on the wall with some semblance of being done. I mounted it on the stairway down into the basement. You go 12 steps down, then there's a landing. The stairway turns 180 degrees and continues for 12 more steps.

Here are some photos:









In the end, the refurbishment cost about $130 including a new flourescent fixture with bulbs, new chase lights, and paint! I saw one of these on the web for over $1600!

It looks really good. I will be looking for a couple of double sided posters for the frame...that should make the poster really pop!

Merry Christmas to the AVS Forum!

CJ
Reply
Reply
post #1510 of 1627
12/25/11 at 11:02am
CJ,

Poster setup looks very good. You say it is refurbished, I assumed you picked this up used ?

Wishing you and yours a Merry Xmas and a great New Year!
Reply
Reply
post #1511 of 1627
12/26/11 at 8:15am
Thread Starter
Merry Christmas to you and your's as well!

I picked it up on firesale when a local video store was goin gout of business. I think I paid $35 for the unit (I purchased two). It was in rough shape. I cannibalized aprts from two to make one working unit. I disassembled it, sanded and painted it, replaced the flourescent light and bulbs, as well as rewire it and add a switch to the outside (so I sould easily turn it on and off without opening it). After new chase lights, the unit was as good as new!
Reply
Reply
post #1512 of 1627
12/26/11 at 4:10pm
Nice work CJ. Really looks nice.
Reply
Reply
post #1513 of 1627
12/28/11 at 12:45pm
Thread Starter
Thanks! I got it in West By-God Virginia when a video store closed in Charles Town. We don't have things so purty here in virginny, so i had to import it!
Reply
Reply
post #1514 of 1627
12/29/11 at 9:49am
Quote:
Originally Posted by carboranadum View Post

Thanks! I got it in West By-God Virginia when a video store closed in Charles Town. We don't have things so purty here in virginny, so i had to import it!


Weird. I thought West Virginia only had homeade movies.. nice find!
Reply
Reply
post #1515 of 1627
1/22/12 at 9:21pm
Quote:
Originally Posted by mn_hokie View Post

Weird. I thought West Virginia only had homeade movies.. nice find!


Oh, OUCH!

However I'm not quite sure what HOME ADE movies are. Maybe you have to be from WV to understand?

I do know that the lighted frame turned out really nice.

Kudos.

Regards,

RTROSE
Reply
Reply
post #1516 of 1627
1/24/12 at 6:43am
Thread Starter
LOL, Thanks!
Reply
Reply
post #1517 of 1627
1/24/12 at 8:04am
Have you seen THIS guy's basement? For a minute there I thought it was yours!
Reply
Reply
post #1518 of 1627
1/24/12 at 12:36pm
Thread Starter
Yes, I saw it. I posted a note to this thread and gave him a contact or two to try.
Reply
Reply
post #1519 of 1627
4/12/12 at 9:36am
Thread Starter
Working to install the Insteon switches and thermostats that I got for Christmas. I can't wait for the ability to control lighting from the remote.
Reply
Reply
post #1520 of 1627
4/12/12 at 9:50am
Pics, please.
Reply
Reply
post #1521 of 1627
4/12/12 at 10:04am
Please let us know how it goes with the Insteon! We've been watching enough in my mostly completed theater area that I've been thinking about what I need to go that route. I want to start with my four gang (4 zones) for the theater and my one current 3-way for the bar/hallway area.

I know that BritInVA went that route and I've been talking to him.
Reply
Reply
post #1522 of 1627
4/12/12 at 12:36pm
Thread Starter
Quote:
Originally Posted by Spaceman View Post

Pics, please.

OK, but it's a boring photo:



Inside that box are:

11 Insteon dimmers
12 Insteon paddle covers (to change the switch from white to black)
2 Insteon thermostats
2 Insteon thermostat modules
1 Insteon IR bridge
1 Insteon Homelink network control program
1 8 button scene switch
1 6 button scene switch

I've had this stuff since Christmas. Installation is finally beginning.
Reply
Reply
post #1523 of 1627
4/12/12 at 12:44pm
What made you go with the Homelink program instead of an ISY device?
Reply
Reply
post #1524 of 1627
4/12/12 at 12:51pm
Thread Starter
What is an ISY device?
Reply
Reply
post #1525 of 1627
4/12/12 at 12:55pm
I've been putting off installing that kind of lighting for about 5 years (and will probably continue to put it off).

Don't think I'd ever put in a thermostat like that though, as I only touch my thermostat about twice per year - double checking the programming late fall and early summer.
Reply
Reply
post #1526 of 1627
4/12/12 at 12:56pm
No 6 or 8 button scene control?
Reply
Reply
post #1527 of 1627
4/12/12 at 12:58pm
Thread Starter
Yes Tom, I missed that cause I'm not using it in the theater. I have one of each in black (one 6 and one 8).

I plan to use set up all scenes from the remote, but we'll see. I can re-purpose one if I need it.
Reply
Reply
post #1528 of 1627
4/12/12 at 1:03pm
Thread Starter
Quote:
Originally Posted by Stew4msu View Post

I've been putting off installing that kind of lighting for about 5 years (and will probably continue to put it off).

Don't think I'd ever put in a thermostat like that though, as I only touch my thermostat about twice per year - double checking the programming late fall and early summer.

I didn't figure out the cooling needs of the theater until after it was built. I did add three outlets and one return (that is boosted by a large inline fan) for the theater space, but it is not enough. The basement and the first floor share one zone. I did consider putting in a mini split unit for the theater only, but I did not.

During the winter, I have to turn off the heater when we are in the theater. During the summer, I turn on the AC when the theater is packed. I figure that I can install an Insteon thermostat in the first floor to allow me to control it from anywhere (even the basement). I got an extra one for the second floor zone as well. (you know...cause hey, since I may want to control both when I'm away or something).
Reply
Reply
post #1529 of 1627
4/12/12 at 1:03pm
Isn't that what Homelink Network Control software is for?
Reply
Reply
post #1530 of 1627
4/12/12 at 1:13pm
Thread Starter
Quote:
Originally Posted by tlogan6797 View Post

Isn't that what Homelink Network Control software is for?

Homelink will provide control capability and programming of scenes. It connects a PC to the Insteon network.

The IR Link will allow me to use a regular IR remote to invoke commands of the network. I think both will be needed to work in concert to fully automate the house. I've got plans for extending the automation throughout the house, and will be using the theater as a test-bed.
Reply
