post #91 of 246 Old 01-03-2015, 10:58 PM
AVS Forum Special Member

Eyleron's Avatar

Join Date: Dec 2003
Location: Minot, ND
Posts: 2,558
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 284 Post(s)
Liked: 180
Quote:
Originally Posted by LitoGeorge View Post
Hi CoolRDA

Noob here. But Ive been reading this thread (several times) and many others in preparing for a HT system par excellence.

Currently: XPA-5, Onkyo 818, Ascend Acoustics 340SE's (LRC) and HTM200SE's for surrounds, HSU VTF 3 Mk4 sub. I find the system incapable of playing even at reference 0DB without getting that "burning smell" come through in a matter of minutes - mostly from the centre channel, and I've played with the Audyssey 32XT at length.


So, I am looking for a better, fuller sound.
.
Ah, the better, fuller sound of a speaker...not cooking?

Playing at reference levels can be difficult. You might be at the max the speakers can take. Playing at reference with little compression and distortion is very hard for most speakers.

SEOS Fusion 10 Max, 88 Special, Volt 10 LX, SVS PB10 and DIY SI18 subs, Denon X4000, JVC RS400 & 2.35:1 AT Screen
DIY Sound Group: Information and Tips
Eyleron is offline
Sponsored Links
Advertisement

post #92 of 246 Old 01-04-2015, 10:46 AM
Member

LitoGeorge's Avatar

Join Date: Dec 2012
Posts: 141
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 58 Post(s)
Liked: 56
Quote:
Originally Posted by Eyleron View Post
Ah, the better, fuller sound of a speaker...not cooking?

Playing at reference levels can be difficult. You might be at the max the speakers can take. Playing at reference with little compression and distortion is very hard for most speakers.

I didn't know that, thanks. 0DB is loud, but I kinda like it louder when I want it (think: dance party for a short 5 minutes).

CoolRDA, thank you for answering my questions, I have respect for your thread not to muddy it with further questions. Looking forward to your continued experience with the F10Max's
LitoGeorge is offline
post #93 of 246 Old 01-04-2015, 05:55 PM
AVS Forum Special Member

Eyleron's Avatar

Join Date: Dec 2003
Location: Minot, ND
Posts: 2,558
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 284 Post(s)
Liked: 180
Here's a list of speakers that can play reference level. Some barely, some with aplomb. "Barely" means they will sound distorted and "loud" in a bad way.
With aplomb means the speakers are loafing along, no distortion, compression, straining, and you won't realize how loud it is. So, for music, keep the playlist shorter and take breaks.

https://www.avsforum.com/forum/89-spe...-speakers.html
Eyleron is offline
Sponsored Links
Advertisement

post #94 of 246 Old 01-05-2015, 09:10 AM
AVS Forum Special Member

tuxedocivic's Avatar

Join Date: Feb 2010
Location: Ladysmith, BC
Posts: 7,988
Mentioned: 227 Post(s)
Tagged: 2 Thread(s)
Quoted: 2300 Post(s)
Liked: 2225
Thanks so much coolrda for taking a chance on these speakers and sharing your build here. It's really appreciated. Also wanted to say how spot on you were with answering questions and discussing the design details. It's like you were reading my mind I really liked how this speaker came together. I remember when I first took measurements I emailed Erich and basically gave him the heads up that this thing was going to click. The XO was just so natural.

Being in a baffle wall, you probably get a little more of the low end than I had planned for other applications, but I generally design flat rather than tilted down, so I'm sure you're getting great results. And it seems to me most people never complain about to much low end

Thanks again and enjoy the speakers. Sorry I haven't popped into this thread until now.
Mfusick, coolrda, jbrown15 and 1 others like this.
tuxedocivic is offline
post #95 of 246 Old 01-05-2015, 09:22 AM

Mfusick's Avatar

Join Date: Aug 2002
Location: Western MA
Posts: 29,681
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 608 Post(s)
Liked: 2725
I expect these to get a lot more popular in coming months. Nice design, it's simple- effective, not too expensive... Seems like a totally kick ass speaker to me.
coolrda likes this.
Mfusick is offline
post #96 of 246 Old 01-05-2015, 12:00 PM
AVS Forum Special Member

dtsdig's Avatar

Join Date: Mar 2009
Location: Rochester NY
Posts: 2,995
Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 1124 Post(s)
Liked: 1386
Quote:
Originally Posted by tuxedocivic View Post
Thanks again and enjoy the speakers. Sorry I haven't popped into this thread until now.
Hey, welcome back! I've been wondering where you've been for a while.
dtsdig is offline
post #97 of 246 Old 01-05-2015, 07:42 PM
Member

LitoGeorge's Avatar

Join Date: Dec 2012
Posts: 141
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 58 Post(s)
Liked: 56
Quote:
Originally Posted by Eyleron View Post
Here's a list of speakers that can play reference level.
Thanks Eyleron for this, its appreciated. Funny nuff, my speakers are listed on there. I wonder whats going on. If you are willing to figure it out, I would appreciate a pm. If not, no sweat - I just dont want to detract from a fine thread that is all about the new Fusion 10 Max's!
LitoGeorge is offline
post #98 of 246 Old 01-05-2015, 10:14 PM - Thread Starter
AVS Forum Special Member

coolrda's Avatar

Join Date: Nov 2002
Location: Bakersfield, CA
Posts: 3,913
Mentioned: 243 Post(s)
Tagged: 0 Thread(s)
Quoted: 1387 Post(s)
Liked: 1503
Quote:
Originally Posted by tuxedocivic View Post
Thanks so much coolrda for taking a chance on these speakers and sharing your build here. It's really appreciated. Also wanted to say how spot on you were with answering questions and discussing the design details. It's like you were reading my mind I really liked how this speaker came together. I remember when I first took measurements I emailed Erich and basically gave him the heads up that this thing was going to click. The XO was just so natural.

Being in a baffle wall, you probably get a little more of the low end than I had planned for other applications, but I generally design flat rather than tilted down, so I'm sure you're getting great results. And it seems to me most people never complain about to much low end

Thanks again and enjoy the speakers. Sorry I haven't popped into this thread until now.
No problem. Good to hear from you. And thank you for designing such a great speaker.
coolrda is offline
post #99 of 246 Old 01-06-2015, 08:32 AM
AVS Forum Special Member

tuxedocivic's Avatar

Join Date: Feb 2010
Location: Ladysmith, BC
Posts: 7,988
Mentioned: 227 Post(s)
Tagged: 2 Thread(s)
Quoted: 2300 Post(s)
Liked: 2225
Quote:
Originally Posted by dtsdig View Post
Hey, welcome back! I've been wondering where you've been for a while.
Quote:
Originally Posted by coolrda View Post
No problem. Good to hear from you. And thank you for designing such a great speaker.
Just needed a little break. I'll be around. But I've been doing my current build thread on the diysoundgroup forum.
tuxedocivic is offline
post #100 of 246 Old 01-06-2015, 08:41 AM - Thread Starter
AVS Forum Special Member

coolrda's Avatar

Join Date: Nov 2002
Location: Bakersfield, CA
Posts: 3,913
Mentioned: 243 Post(s)
Tagged: 0 Thread(s)
Quoted: 1387 Post(s)
Liked: 1503
aka Cinema-10 Max
coolrda is offline
post #101 of 246 Old 01-06-2015, 09:54 AM
AVS Forum Special Member

tuxedocivic's Avatar

Join Date: Feb 2010
Location: Ladysmith, BC
Posts: 7,988
Mentioned: 227 Post(s)
Tagged: 2 Thread(s)
Quoted: 2300 Post(s)
Liked: 2225
Ha, no, not even close. It's just a little WAF thing for my personal use: http://www.diysoundgroup.com/forum/i...hp?topic=442.0
tuxedocivic is offline
post #102 of 246 Old 01-13-2015, 12:07 AM - Thread Starter
AVS Forum Special Member

coolrda's Avatar

Join Date: Nov 2002
Location: Bakersfield, CA
Posts: 3,913
Mentioned: 243 Post(s)
Tagged: 0 Thread(s)
Quoted: 1387 Post(s)
Liked: 1503
Back for a small update. We let it slip that we watched a movie and everyone, family, friends, neighbors, just happened to drop by to check on us. It's been a fun week. At least one of them brought a pizza. Between DL'ing and watching 4K files(new Fav hobby) and trying to stay caught up on the tons of good threads and builds hear (A losing battle) I managed to snag a graph to post. These speakers have truly come into their own. Sound is extremely smooth and the front stage sounds full and seamless. Because of the power and dynamics of the Max's, the subs sound like an extension of the Max's despite being placed behind the MLP. Even with full range speakers, which the Max's are not, theres always been a disconnect between the mains and the subs when placed this far apart. This was a real quick cal using my very old Onkyo 885 with Audyssey XT(only 3 of 8 positions used).

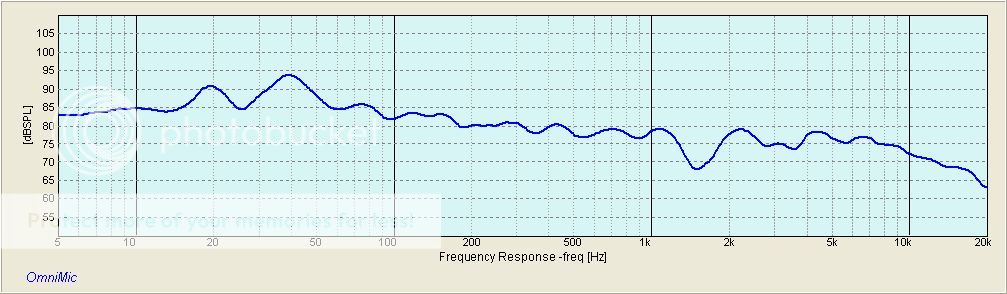

The graph shows the smooth response. You can see a dip around the crossover freq and the big peak around 40hz, thats mucking things up, due to sub/room/port tune? of Max. Once the front subs are placed I'll address that.

In my review of the Maxs at DIYSG website I stated that the imaging was the best I ever heard from 2 channel. What I meant to say was in a 2.0 movie playback system. Surround effects were imaged out to the sides very effectively. The Max's would do an excellent job for those that only want a 2.1 system, for whatever reason.

Another thing I wanted to reference was the comments concerning the brightness of this speaker along with a number of the SEOS-based speaker systems. They will give the illusion of being bright, as it has been mentioned before, because of the limited LF response. This speaker needs and is designed for use with a sub. Or two. A 2.2 with stereo subs will make this a formidable and potent full range 2CH playback system for music and movies. The frequency charts prove this speaker is extended but rolls off above 10khz.
coolrda is offline
post #103 of 246 Old 01-13-2015, 04:38 AM
pbc
AVS Forum Special Member

pbc's Avatar

Join Date: Jul 2002
Location: Toronto, Canada
Posts: 5,987
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 437 Post(s)
Liked: 217
Interesting dip between 1-2khz?


This speaker is a strong contender should I decide to ultimately go with a 4.2 (possibly 4.2.4 with Atmos or DTS-X) setup in my new house come July instead of a 5.2 setup given the issues with speaker channel placement with the TV sitting already above a fireplace which would necessitate the TV to be moved even higher up the wall or the CC to be placed above the TV some 8 feet up in the air. Issue with Phantom Center is that the speakers will be about 16 feet apart so that may just be too far!


Still debating between 2 Max 10's, or 2 Seaton Cat 8C's (possibly 3 if I go with a CC), or 3 Alpha Minion MTM's across the front. All would likely be with dual Volt-10's or the new Coaxial 8" designs for rears (can't do surrounds) and my dual subs. Just wondering if I'd get more dynamics from the Max 10 vs the Seaton Cat 8Cs, particularly if I had to go with a phantom center setup. The Max 10 and Cat 8's are the widest I'd want to go with and I can't do more than ~12" of depth for a CC if I go with one.


Curious, do you hear any hiss with the high efficiency Max 10's, and what are you powering them with again?



My DIY Subs ... https://www.avsforum.com/avs-vb/showthread.php?t=1233892

Quote:

J Dunlavy:.. if you stop to think about it, no loudspeaker can sound more accurate than it measures.



pbc is offline
post #104 of 246 Old 01-13-2015, 07:48 AM

Mfusick's Avatar

Join Date: Aug 2002
Location: Western MA
Posts: 29,681
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 608 Post(s)
Liked: 2725
That dip at 1.5khz...
Mfusick is offline
post #105 of 246 Old 01-13-2015, 08:16 AM
AVS Forum Special Member

tuxedocivic's Avatar

Join Date: Feb 2010
Location: Ladysmith, BC
Posts: 7,988
Mentioned: 227 Post(s)
Tagged: 2 Thread(s)
Quoted: 2300 Post(s)
Liked: 2225
Tweeter polarity? I'd expect the dip to be wider than that, but it certainly begs the question. It is a reverse polarity design just FYI. In case you missed that.

It's amazing how hard it is to hear a flipped tweeter polarity. The power response stays flat even when wrong.
tuxedocivic is offline
post #106 of 246 Old 01-13-2015, 08:59 AM - Thread Starter
AVS Forum Special Member

coolrda's Avatar

Join Date: Nov 2002
Location: Bakersfield, CA
Posts: 3,913
Mentioned: 243 Post(s)
Tagged: 0 Thread(s)
Quoted: 1387 Post(s)
Liked: 1503
Quote:
Originally Posted by tuxedocivic View Post
Tweeter polarity? I'd expect the dip to be wider than that, but it certainly begs the question. It is a reverse polarity design just FYI. In case you missed that.

It's amazing how hard it is to hear a flipped tweeter polarity. The power response stays flat even when wrong.
Figured that was because of the crossover. Erich did make a point about the reversed HF polarity to me. The board HF taps have that reverse built in. That is correct I hope. It does look more like a third or fourth order.
coolrda is offline
post #107 of 246 Old 01-13-2015, 09:57 AM - Thread Starter
AVS Forum Special Member

coolrda's Avatar

Join Date: Nov 2002
Location: Bakersfield, CA
Posts: 3,913
Mentioned: 243 Post(s)
Tagged: 0 Thread(s)
Quoted: 1387 Post(s)
Liked: 1503
Quote:
Originally Posted by pbc View Post
Interesting dip between 1-2khz?


This speaker is a strong contender should I decide to ultimately go with a 4.2 (possibly 4.2.4 with Atmos or DTS-X) setup in my new house come July instead of a 5.2 setup given the issues with speaker channel placement with the TV sitting already above a fireplace which would necessitate the TV to be moved even higher up the wall or the CC to be placed above the TV some 8 feet up in the air. Issue with Phantom Center is that the speakers will be about 16 feet apart so that may just be too far!


Still debating between 2 Max 10's, or 2 Seaton Cat 8C's (possibly 3 if I go with a CC), or 3 Alpha Minion MTM's across the front. All would likely be with dual Volt-10's or the new Coaxial 8" designs for rears (can't do surrounds) and my dual subs. Just wondering if I'd get more dynamics from the Max 10 vs the Seaton Cat 8Cs, particularly if I had to go with a phantom center setup. The Max 10 and Cat 8's are the widest I'd want to go with and I can't do more than ~12" of depth for a CC if I go with one.


Curious, do you hear any hiss with the high efficiency Max 10's, and what are you powering them with again?
They resolve very well so you may hear more than typical rolled off tweeters. It's relative to the sound level of course. Using Emotiva power so I don't hear amp hiss.
coolrda is offline
post #108 of 246 Old 01-13-2015, 10:22 AM
AVS Forum Special Member

tuxedocivic's Avatar

Join Date: Feb 2010
Location: Ladysmith, BC
Posts: 7,988
Mentioned: 227 Post(s)
Tagged: 2 Thread(s)
Quoted: 2300 Post(s)
Liked: 2225
I haven't seen the board myself. Could be something else.
tuxedocivic is offline
post #109 of 246 Old 01-13-2015, 01:55 PM
Advanced Member

Billy Boden's Avatar

Join Date: Sep 2014
Location: Lexington Ky
Posts: 778
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 352 Post(s)
Liked: 251
Quote:
Originally Posted by tuxedocivic View Post
I haven't seen the board myself. Could be something else.
I'd bet a dollar that the CD polarity needs to be flipped.
Billy Boden is offline
post #110 of 246 Old 01-14-2015, 09:53 AM - Thread Starter
AVS Forum Special Member

coolrda's Avatar

Join Date: Nov 2002
Location: Bakersfield, CA
Posts: 3,913
Mentioned: 243 Post(s)
Tagged: 0 Thread(s)
Quoted: 1387 Post(s)
Liked: 1503
Quote:
Originally Posted by tuxedocivic View Post
I haven't seen the board myself. Could be something else.
Here you go. I've checked and checked before. The board has the HF invert built in.




Last edited by coolrda; 01-14-2015 at 10:01 AM.
coolrda is offline
post #111 of 246 Old 01-14-2015, 09:56 AM
AVS Forum Special Member

Erich H's Avatar

Join Date: Dec 2007
Location: Cincinnati OH
Posts: 7,357
Mentioned: 294 Post(s)
Tagged: 3 Thread(s)
Quoted: 1855 Post(s)
Liked: 2659
The board does have the inverted polarity built in.

_______________________
The SEOS Waveguide Project
Erich H is offline
post #112 of 246 Old 01-14-2015, 11:21 AM
AVS Forum Special Member

tuxedocivic's Avatar

Join Date: Feb 2010
Location: Ladysmith, BC
Posts: 7,988
Mentioned: 227 Post(s)
Tagged: 2 Thread(s)
Quoted: 2300 Post(s)
Liked: 2225
Yup, it looks fine. The real reverse null is much deeper and wider anyways. That looks like a null, but I don't think it is. Could have been the distance from the mic to the couch, or even the audyssey mic to the couch caused a peak that audessey eq'ed out. There's another very slight null at 3khz, which is a multiple of 1.5khz. The rest of the response is very very smooth. Even down in the modal region. So if it is a reflection, it's one that probably doesn't bother you much. The rest is very good.
tuxedocivic is offline
post #113 of 246 Old 01-14-2015, 12:20 PM
Advanced Member

Billy Boden's Avatar

Join Date: Sep 2014
Location: Lexington Ky
Posts: 778
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 352 Post(s)
Liked: 251
I'm curious, is the Audyssey microphone ~2.6" tall?

Were the measurements made with the microphone sitting on the couch or on a mic stand?

Last edited by Billy Boden; 01-14-2015 at 12:24 PM.
Billy Boden is offline
post #114 of 246 Old 01-14-2015, 12:34 PM
pbc
AVS Forum Special Member

pbc's Avatar

Join Date: Jul 2002
Location: Toronto, Canada
Posts: 5,987
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 437 Post(s)
Liked: 217
How difficult would it be to reverse the wires on the tweeter ... just for fun ... and remeasure? Assuming it's not an anomaly that is (i.e., if you ran the same measurement again do you get the same dip/null)... seems odd for a null to be that high?



My DIY Subs ... https://www.avsforum.com/avs-vb/showthread.php?t=1233892

Quote:

J Dunlavy:.. if you stop to think about it, no loudspeaker can sound more accurate than it measures.



pbc is offline
post #115 of 246 Old 01-14-2015, 01:21 PM
AVS Forum Special Member

tuxedocivic's Avatar

Join Date: Feb 2010
Location: Ladysmith, BC
Posts: 7,988
Mentioned: 227 Post(s)
Tagged: 2 Thread(s)
Quoted: 2300 Post(s)
Liked: 2225
Quote:
Originally Posted by pbc View Post
seems odd for a null to be that high?
Not if the couch is nearby. Happens all the time actually.

Here's several speakers measured with the microphone about 2ft from the couch: https://www.avsforum.com/forum/89-spe...l#post28619113

None of them with an obvious dip, but there's something around 800hz in all of them. Most people put their mic closer to the couch than I did for that comparison, which would move the dip higher in frequency.
tuxedocivic is offline
post #116 of 246 Old 01-15-2015, 12:28 AM - Thread Starter
AVS Forum Special Member

coolrda's Avatar

Join Date: Nov 2002
Location: Bakersfield, CA
Posts: 3,913
Mentioned: 243 Post(s)
Tagged: 0 Thread(s)
Quoted: 1387 Post(s)
Liked: 1503
Quote:
Originally Posted by tuxedocivic View Post
Not if the couch is nearby. Happens all the time actually.

Here's several speakers measured with the microphone about 2ft from the couch: https://www.avsforum.com/forum/89-spe...l#post28619113

None of them with an obvious dip, but there's something around 800hz in all of them. Most people put their mic closer to the couch than I did for that comparison, which would move the dip higher in frequency.
I think you nailed it. Never realized a leather chair could have that effect. Mic is less than 6" from chair back so that appears to be it.
coolrda is offline
post #117 of 246 Old 01-15-2015, 12:54 AM
Member

Join Date: Dec 2014
Location: Sacramento Delta
Posts: 198
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 98 Post(s)
Liked: 51
I would have never figured that out You guys are too smart on here.
Doradoguy is offline
post #118 of 246 Old 01-15-2015, 07:12 AM
AVS Forum Special Member

Eyleron's Avatar

Join Date: Dec 2003
Location: Minot, ND
Posts: 2,558
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 284 Post(s)
Liked: 180
I think you can figure that any material that you wouldn't use for speaker grill cloth will cause a reflection at high frequencies at least.
Eyleron is offline
post #119 of 246 Old 01-15-2015, 09:16 AM
Senior Member

aaronlinkous's Avatar

Join Date: Jan 2007
Location: Bellingham, WA
Posts: 358
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 55 Post(s)
Liked: 69
Quote:
Originally Posted by tuxedocivic View Post
Not if the couch is nearby. Happens all the time actually.

Here's several speakers measured with the microphone about 2ft from the couch: https://www.avsforum.com/forum/89-spe...l#post28619113

None of them with an obvious dip, but there's something around 800hz in all of them. Most people put their mic closer to the couch than I did for that comparison, which would move the dip higher in frequency.
Intersting... I've always just rested my mic on the top of the headrest.... anything in particular I should put over the couch to help or a new place to put the mic?
aaronlinkous is offline
post #120 of 246 Old 01-15-2015, 09:42 AM - Thread Starter
AVS Forum Special Member

coolrda's Avatar

Join Date: Nov 2002
Location: Bakersfield, CA
Posts: 3,913
Mentioned: 243 Post(s)
Tagged: 0 Thread(s)
Quoted: 1387 Post(s)
Liked: 1503
Quote:
Originally Posted by aaronlinkous View Post
Intersting... I've always just rested my mic on the top of the headrest.... anything in particular I should put over the couch to help or a new place to put the mic?
Leave it the way you listen to it. Even adding bodies to the room changes things. I went back and moved the mic a few inches and the response was different. Its not the speaker. Its the room and furniture.
coolrda is offline
Sponsored Links
Advertisement

Reply DIY Speakers and Subs

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
