post #151 of 191 Old 03-10-2014, 05:48 AM
AVS Forum Special Member

jkasanic's Avatar

Join Date: Dec 2006
Posts: 1,591
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 329 Post(s)
Liked: 124
Quote:
Originally Posted by mtbdudex View Post

jkasanic - you are really going big and deep!
You've got an AT screen, and false wall, and behind that you desire to suck up low freq, got it.

For the RH and LH ones, Could you put 2 x 4 strips at the top, 3 like I show in dark blue, and then "hang" the un-faced R-30 by simply clamping it to the 2x4 by say thin 1 x 2 wood strip that is pre-drilled and use coarse drywall screw?
In my mind that seems easy and doable. Go full length ceiling to floor.
Same for area between your LCR, above your LCR just cut the pink fluffy slightly above them.



Somewhere years ago I saw someone do similar with thick cotton shoddy, really deep on front wall.



I suppose I could hang it in 9" thick strips as you've shown.  My current concept is to fill these burlap sacks with pink fluffy and hang the top one from the wall and the bottom one from the top one:





I was a little concerned about only having one layer of GOM (my false wall fabric panels) between the audience and the insulation and the burlap works well to keep the fibers contained.  If compression is a concern (I won't get my pink fluffy until later this week) then I was thinking I could somehow attach the strips to the top surface of the burlap, basically achieving the same result as you've shown.



Just to give you an idea of my raw bass response (C+Sub with and without Audyssey no smoothing 0-300Hz):





Audyssey does a pretty good job taming the 30Hz peak so my goal has really been just to give it a better starting point from which to work its magic.  I don't expect to have a lot of impact on the 30Hz peak but if I can smooth out the even more critical 50-300Hz region then I will have achieved most of my goal.  Part II will be creating sound symmetry (I have two door openings on the right side of the room) as well as taming contra-lateral reflections and then after listening for a while I'll decide what I want to do (if anything) about any remaining high gain early ipsilateral reflections.  There's a couple different schools of thought on these so I figured I'd get the room to the point described earlier and then just listen for myself with some known content.  I should also state that my room is 95% used for movies and the 5% that I use for music is mixed between stereo and multi-channel discs.

jkasanic is offline
Sponsored Links
Advertisement

post #152 of 191 Old 04-24-2014, 05:33 AM
Member

James004's Avatar

Join Date: Feb 2014
Posts: 62
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked: 12

I posted this in an other thread. But have yet to receive any responses. This thread seems more geared to DIYers so hopefully I will get some help here.





Now that I have my bass traps done. I am ready to move on to panels. But I have a few questions. First and foremost is regarding something that I read. It said that for first reflection points. Anything less than a 4" thick panel will do more harm than good. As it will result in a muffled sound. Due to it only being  able to absorb upper part of the spectrum leaving the bass and mids in tact. Is that true?



Depending on that answer. I need to keep these panels as unobtrusive as possible. I was going to do 2" thick 2'x4' panels of Roxul Safe and Sound with a 1" space behind. Would I be better off with a 3" thick panel with no space? I am trying to limit myself to 3" of protrusion into the room as to not upset my wife too much. But if it really needs to be 4" (with or without space behind?) I will have to renegotiate with here.



Lastly should all absorbers on the front wall have a reflective face? Or is that only for the corner traps? Then the rest of the room (side walls and back wall) should be full range (no paper face)? Is that correct. This is only for walls no saddles will be used.



Regards,

James

James004 is offline
post #153 of 191 Old 04-24-2014, 06:04 AM
AVS Forum Special Member

jkasanic's Avatar

Join Date: Dec 2006
Posts: 1,591
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 329 Post(s)
Liked: 124
Quote:
Originally Posted by James004 View Post


I posted this in an other thread. But have yet to receive any responses. This thread seems more geared to DIYers so hopefully I will get some help here.





Now that I have my bass traps done. I am ready to move on to panels. But I have a few questions. First and foremost is regarding something that I read. It said that for first reflection points. Anything less than a 4" thick panel will do more harm than good. As it will result in a muffled sound. Due to it only being  able to absorb upper part of the spectrum leaving the bass and mids in tact. Is that true?



Depending on that answer. I need to keep these panels as unobtrusive as possible. I was going to do 2" thick 2'x4' panels of Roxul Safe and Sound with a 1" space behind. Would I be better off with a 3" thick panel with no space? I am trying to limit myself to 3" of protrusion into the room as to not upset my wife too much. But if it really needs to be 4" (with or without space behind?) I will have to renegotiate with here.



Lastly should all absorbers on the front wall have a reflective face? Or is that only for the corner traps? Then the rest of the room (side walls and back wall) should be full range (no paper face)? Is that correct. This is only for walls no saddles will be used.



Regards,

James



In order to properly treat your reflections, you should use some measuring gear (e.g. USB mic and REW gets you in the game for around $100) and plot some band-limited ETC measurements.  Once you know which frequencies the reflections are strongest then you can better determine the material and thickness of your treatments.  The ETC's will also help you discover which surfaces are reflecting the sound as sometimes the most harmful are not just the first reflection points of your side walls.



Here's a calculator to help you determine the effectiveness of your treatments depending on material (for air resistivity), thickness and air gap:



http://www.acousticmodelling.com/porous.php



I took a stab at filling in the measurements but I'm guessing the air resistivity will vary somewhat based on the thickness of the Roxul (and type, I used AFB).  It shows the solid 3" would go deeper which makes sense since your air gap should be similar to your treatment thickness for maximum effect:





This basically tells you that if 3" is your max then you're better off using 3" of material rather than 2" with a 1" air gap (assuming everything else is constant).  You might want to double check my numbers if you're looking for "absolute" values in the chart as I was just trying to illustrate the difference.

jkasanic is offline
Sponsored Links
Advertisement

post #154 of 191 Old 04-24-2014, 06:55 AM
Member

James004's Avatar

Join Date: Feb 2014
Posts: 62
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked: 12
Quote:
Originally Posted by jkasanic View Post




In order to properly treat your reflections, you should use some measuring gear (e.g. USB mic and REW gets you in the game for around $100) and plot some band-limited ETC measurements.  Once you know which frequencies the reflections are strongest then you can better determine the material and thickness of your treatments.  The ETC's will also help you discover which surfaces are reflecting the sound as sometimes the most harmful are not just the first reflection points of your side walls.



This basically tells you that if 3" is your max then you're better off using 3" of material rather than 2" with a 1" air gap (assuming everything else is constant).  You might want to double check my numbers if you're looking for "absolute" values in the chart as I was just trying to illustrate the difference.

Thank you. My gut was telling me 3" no gap was better than 2"+1"air gap. Thank you for confirming that.



I do have REW set up and would love to get some measurements to post. Since I now have the corner bass traps installed. But I have an 18 mo son who loves to touch everything daddy touches and the test tones would wake him during his naps. So I am stuck at this point. I think I will go buy some more 3" Roxul today and hope that I can sneak some measurements in before building any panels.



What about reflective faces on the front wall panels? Or is that dependent on the REW results? What about the back wall. Is it pretty safe to assume two horizontal 2'x4' panels (no paper face) at head height behind my couch?



Thanks in advance,

James

James004 is offline
post #155 of 191 Old 04-24-2014, 07:07 AM
AVS Forum Special Member

jkasanic's Avatar

Join Date: Dec 2006
Posts: 1,591
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 329 Post(s)
Liked: 124
Quote:
Originally Posted by James004 View Post

Quote:
Originally Posted by jkasanic View Post




In order to properly treat your reflections, you should use some measuring gear (e.g. USB mic and REW gets you in the game for around $100) and plot some band-limited ETC measurements.  Once you know which frequencies the reflections are strongest then you can better determine the material and thickness of your treatments.  The ETC's will also help you discover which surfaces are reflecting the sound as sometimes the most harmful are not just the first reflection points of your side walls.



This basically tells you that if 3" is your max then you're better off using 3" of material rather than 2" with a 1" air gap (assuming everything else is constant).  You might want to double check my numbers if you're looking for "absolute" values in the chart as I was just trying to illustrate the difference.

Thank you. My gut was telling me 3" no gap was better than 2"+1"air gap. Thank you for confirming that.



I do have REW set up and would love to get some measurements to post. Since I now have the corner bass traps installed. But I have an 18 mo son who loves to touch everything daddy touches and the test tones would wake him during his naps. So I am stuck at this point. I think I will go buy some more 3" Roxul today and hope that I can sneak some measurements in before building any panels.



What about reflective faces on the front wall panels? Or is that dependent on the REW results? What about the back wall. Is it pretty safe to assume two horizontal 2'x4' panels (no paper face) at head height behind my couch?



Thanks in advance,

James



I'm following a similar path as you.  I've just installed corner bass traps as well.  I went deep as shown a couple posts above and I'm trying to finish some more traps for the front wall.  I was surprised that I didn't see as much benefit in my decay times with just the corner traps installed.  I did seem some smoothing of my FR (pre-Audyssey) in the 60-160Hz range but a large peak at 30Hz from a room mode was hardly affected.



Anyway, my next step is to start installing treatments in-room.  I don't have any (baby) constraints yet so I'm taking a very systematic approach to minimize the overall number of treatments yet optimize their size and placement.  The great thing about REW is you can run a full range sweep and then slice the data a million different ways.  If I were you, I'd try to get at least one full range sweep of your left, center and right (with and without subwoofer engaged) as well as the combined response of your L+R+Sub for analysis in the 15-300Hz region.  The individual sweeps can then be used to do those band-limited ETC's I mentioned above.  There's some discussion on this in the REW thread as well.



I can't really comment on how effective your approach would be without measurements.  Every room is different and what works for some may not work for others.  If you have more details on your room layout and want to post some FR sweeps, waterfalls, spectrograms and ETC's then I would suggest you head over to the REW thread where you'll get a lot more input on how best to treat your room using the measurements as a guide.

jkasanic is offline
post #156 of 191 Old 04-24-2014, 11:10 AM
Member

James004's Avatar

Join Date: Feb 2014
Posts: 62
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked: 12

It is definitely time to do some measurements. I will post them in the REW thread.



My only question remaining for now then is. Are there any locations other than the corner bass traps where a paper face would be used?



James

James004 is offline
post #157 of 191 Old 06-24-2014, 09:27 AM
Newbie

mcnewt's Avatar

Join Date: Apr 2013
Location: Where the wind comes sweepin' down the plain
Posts: 12
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked: 14
For all those using pink fluffy or OC703 in your corner traps and panels, did it have a really strong chemical smell at first? Does this ever go away, or is it trapped in your theater room for good? As a quick test of my need for corner traps, I stacked lots of those pink fluffy R-30 round bales (still in original packaging) in the front corners of my dedicated room. It seemed to improve the REW waterfall, but the smell was just too much, so I moved them all back to the garage. Now trying to figure out what material I'm going to use as I start building corner traps and wall panels. Would the denim Ultratouch have less of a smell since it's "greener"?
Thanks!
mcnewt is offline
post #158 of 191 Old 06-24-2014, 01:53 PM

cableguy301's Avatar

Join Date: Jan 2014
Posts: 439
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Liked: 64
Quote:
Originally Posted by mcnewt View Post
For all those using pink fluffy or OC703 in your corner traps and panels, did it have a really strong chemical smell at first? Does this ever go away, or is it trapped in your theater room for good? As a quick test of my need for corner traps, I stacked lots of those pink fluffy R-30 round bales (still in original packaging) in the front corners of my dedicated room. It seemed to improve the REW waterfall, but the smell was just too much, so I moved them all back to the garage. Now trying to figure out what material I'm going to use as I start building corner traps and wall panels. Would the denim Ultratouch have less of a smell since it's "greener"?
Thanks!

try roxul safe and sound insulation .. most home depots up north..
cableguy301 is offline
post #159 of 191 Old 06-26-2014, 10:43 PM
Senior Member

likelinus's Avatar

Join Date: Nov 2007
Posts: 390
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Liked: 58
Sorry, posted in the wrong thread.

Last edited by likelinus; 06-27-2014 at 07:17 AM.
likelinus is offline
post #160 of 191 Old 08-11-2014, 10:43 AM

ellisr63's Avatar

Join Date: Jul 2002
Posts: 3,470
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 993 Post(s)
Liked: 417
Quote:
Originally Posted by mtbdudex View Post

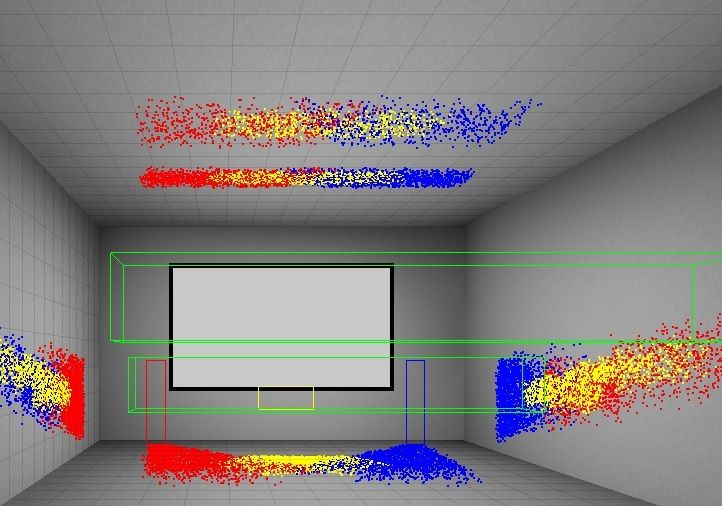

Having used the simulation software for the 1st reflection points, transferred those locations via blue tape onto the ceiling.
Confirmed their accuracy with 1' x 4' mirror and my wife....she was on ladder holding the mirror flat to the ceiling while I was the one sitting in the chair analyzing
Then, with the build wood box, get exact mtg locations via blue tape and much measurement/cross checking.
Where did you get the simulation software for first reflection location?

tia,
Ron
ellisr63 is offline
post #161 of 191 Old 10-01-2014, 08:04 PM - Thread Starter
AVS Forum Special Member

mtbdudex's Avatar

Join Date: May 2007
Location: SE Michigan
Posts: 6,763
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked: 1479
Quote:
Originally Posted by ellisr63 View Post
Where did you get the simulation software for first reflection location?

tia,
Ron
Sorry late answer, I missed this...

Look here, post 245, I know it works under WinXP....not sure Win7 or later....
https://www.avsforum.com/forum/19-ded...l#post22619536
ellisr63 and jkasanic like this.
mtbdudex is offline
post #162 of 191 Old 10-01-2014, 10:11 PM

ellisr63's Avatar

Join Date: Jul 2002
Posts: 3,470
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 993 Post(s)
Liked: 417
Quote:
Originally Posted by mtbdudex View Post
Sorry late answer, I missed this...

Look here, post 245, I know it works under WinXP....not sure Win7 or later....
https://www.avsforum.com/forum/19-ded...l#post22619536
Thanks, I got it working in Win 7... How do you get it to display strictly a floor plan so you can measure... All I have been able to get is the 3d plan, and then it is difficult to see exactly what the measurements are.
ellisr63 is offline
post #163 of 191 Old 10-02-2014, 04:49 AM - Thread Starter
AVS Forum Special Member

mtbdudex's Avatar

Join Date: May 2007
Location: SE Michigan
Posts: 6,763
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked: 1479
Going from memory here.
When you input the dimensions of your room, for me in feet, it overlays grids in 2 foot increments.
Not sure if you can change that to finer resolution, you can input dimensions to the inch.
For plan view,side view, etc.
I was able to do that, either by direct button that gave that or rotate the view till it was how you wanted....
Sorry it's been a while since I actually did it.


Via Mikes brain/thumb interface, LLAP
ellisr63 likes this.
mtbdudex is offline
post #164 of 191 Old 11-03-2014, 11:54 PM
Member

crossrh's Avatar

Join Date: Sep 2005
Location: San Antonio, TX
Posts: 33
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Liked: 12
So I've been reading all this speaker porn on this site and Gearslutz. (my wife thinks that's funny) I want to tighten up the resonances/room modes/reverberation in the bottom end. The frequency response I can fix with REW and my Behringer Feedback Destroyer Pro DSP1124P, but the Waterfall plots are ugly.


My plan is to construct corner traps as depicted below, using my mad Power Point skilz. I'll start with 2' x 4' bats of Roxul Safe 'n Sound, cut off the corners 1' in, and place those pieces on the back (top of the picture) to create the shape shown. Overall dimensions will be 4' wide by 3' deep, at the point in the corner, from floor to ceiling. I think I want it to be mobile, so I may mount casters on the plywood bottom. I still have to work out most of the construction details. I have time, as these will go into my house when I retire from the Army.


My question is, given that I'm not so worried about smoothing the FR in this application, will this (reasonably) effectively tame that waterfall? My room is pretty big, so I can get away with three of these monsters in the corners. Is Safe 'n Sound the best for this application (40kg/cu. m.?) Do I want to leave an air gap between the wall and the trap? Can I use 1/8" hardboard for backing on the sides against the wall?
Attached Thumbnails
Click image for larger version

Name:	livingroom 14 aug 14 waterfall plot.jpg
Views:	138
Size:	417.2 KB
ID:	348810   Click image for larger version

Name:	Corner Bass Trap.jpg
Views:	228
Size:	38.9 KB
ID:	348818
crossrh is offline
post #165 of 191 Old 11-04-2014, 06:38 AM
AVS Forum Special Member

jkasanic's Avatar

Join Date: Dec 2006
Posts: 1,591
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 329 Post(s)
Liked: 124
Quote:
Originally Posted by crossrh View Post
So I've been reading all this speaker porn on this site and Gearslutz. (my wife thinks that's funny) I want to tighten up the resonances/room modes/reverberation in the bottom end. The frequency response I can fix with REW and my Behringer Feedback Destroyer Pro DSP1124P, but the Waterfall plots are ugly.


My plan is to construct corner traps as depicted below, using my mad Power Point skilz. I'll start with 2' x 4' bats of Roxul Safe 'n Sound, cut off the corners 1' in, and place those pieces on the back (top of the picture) to create the shape shown. Overall dimensions will be 4' wide by 3' deep, at the point in the corner, from floor to ceiling. I think I want it to be mobile, so I may mount casters on the plywood bottom. I still have to work out most of the construction details. I have time, as these will go into my house when I retire from the Army.


My question is, given that I'm not so worried about smoothing the FR in this application, will this (reasonably) effectively tame that waterfall? My room is pretty big, so I can get away with three of these monsters in the corners. Is Safe 'n Sound the best for this application (40kg/cu. m.?) Do I want to leave an air gap between the wall and the trap? Can I use 1/8" hardboard for backing on the sides against the wall?
I just installed about 90 cu ft of pink fluffy in the form of 7 square soffit style bass traps 23"x23"x42"(see a few posts above). I concentrated on the soundstage since I have a false front wall. What I found (in my particular room) was that my frequency response was affected more than my bass resonance. My bass resonance wasn't nearly as bad as yours though so I would expect to see more improvement in the time domain with your setup. I also think that just concentrating my traps on the front soundstage altered the energy balance in the room and exposed some other issues that may have been hidden due to reflective energy (just a hypothesis at this point). In any case, I did some extensive research on constructing the best bass traps to maximize the performancerice ratio. My research indicated that square style traps would be more effective than triangular all things equal. HST, if WAF is a factor or your corner traps are in-room then the triangular style are not a bad tradeoff for better aesthetics. Will be interested to see some before and after waterfalls. I'd also use the Spectrogram to compare. Good luck!
jkasanic is offline
post #166 of 191 Old 11-05-2014, 04:47 PM
Member

crossrh's Avatar

Join Date: Sep 2005
Location: San Antonio, TX
Posts: 33
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Liked: 12
I was reading this article from 1998, and the last paragraph in the Modes section says:


"These modes decay at different rates, so to damp a mode, absorbing material must be placed in an area of high pressure. For example, to damp a mode produced by two opposite walls, the absorbent material must be placed on one of the walls, rather than on the floor or ceiling."


http://www.soundonsound.com/sos/jul9...coustics1.html


That made me wonder if there were different techniques for attenuating a frequency versus absorbing a room mode. I've been hearing (no pun intended; let me know when that gets old) that we should leave an air gap between the absorbent material and the wall. Does this apply in both of the above-mentioned cases?


Also, I'd like to try building some Helmholtz resonators.


http://www.audioholics.com/room-acou...onant-absorber


Does anybody know where the Excel spreadsheet is for the calculations, or have any other tips? The link in the article is dead.
crossrh is offline
post #167 of 191 Old 11-06-2014, 06:00 AM
AVS Forum Special Member

jkasanic's Avatar

Join Date: Dec 2006
Posts: 1,591
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 329 Post(s)
Liked: 124
Quote:
Originally Posted by crossrh View Post
That made me wonder if there were different techniques for attenuating a frequency versus absorbing a room mode. I've been hearing (no pun intended; let me know when that gets old) that we should leave an air gap between the absorbent material and the wall. Does this apply in both of the above-mentioned cases?
Air gaps are typically used to improve the absorption coefficient when dealing with panels or traps that are thinner in nature and the air gap is at least equal to or greater than the thickness of the panel. For example, a 1" thick panel of OC703 with a 1" air gap can perform nearly as well as a 2" thick panel (see 1st attached image) and noticeably better than a 1" panel with no gap (see 2nd attached image).

Bass traps need to be very thick to absorb lower frequencies so typically (of course, it depends on the material you are using) an air gap is not used with these type of traps. Hope this helps.
Attached Thumbnails
Click image for larger version

Name:	absorption.JPG
Views:	179
Size:	84.5 KB
ID:	351530   Click image for larger version

Name:	absorption2.JPG
Views:	150
Size:	92.7 KB
ID:	351546

Last edited by jkasanic; 11-06-2014 at 06:09 AM.
jkasanic is offline
post #168 of 191 Old 02-15-2015, 12:31 AM
Member

DrBabs's Avatar

Join Date: Dec 2010
Posts: 153
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Liked: 16
Quote:
Originally Posted by mtbdudex View Post
Quote:
Originally Posted by smokarz
nicely done.

i must say, your carpet is mesmerzing...


Thx, it felt good to get the cloud done and hung.

The carpet, we liked the HT theme in it, and at the time our walls were bare.
Plus, there are some reds/blues in it if we wanted to use those for wall accent colors in some future re-do....
Thx for remining me, I owe the guy who sold me the carpet a HT picture, and was waiting for my acoustic panels to go up before taking one....just my 1st row couch is getto and due for replacement April when bonus checks come in.

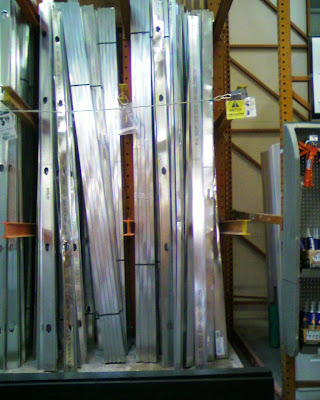

Returning stuff at Home Depot during lunch, I was studying how to do removable corner bass traps.
I bought some handrail and may "play" with that this weekend.

While my side wall hanging frame panels are fresh in my mind, I saw 2 possible methods/options for others to consider:

1) Use steel stud frame instead of wood.
3 5/8" wide, easy to make a box, and the edges would naturally grab the fiberboard.
Of course you'd want to wrap them with the fabric material, unless you wanted a industrial look and painted them instead.
Bonus: They have some holes in the sides so you'd get some "extra" absorption, or more closely match the test specs since I've read their absorption Coefficients @ various hz are done on panels totally exposed, edges included.

2) Use Glass block plastic channel instead of wood.
4" wide, easy to make a box, and the edges would naturally grab the fiberboard. These are exactly 48" tall, perfect for 2' x 4' sheet, 3 needed per panel.

Possible rivits to hold the channels to each other, with an inner angle channel if needed?
First make the box and see how sturdy it would be before adding reinf.

Steel studs............................................. .......... ..glass block channel
...

I'd like to see how other DIY'rs have done theirs, so far nobody has PM'd me anything....
Guess once they make their's they move onto other things and don't read these threads, since not on their mindset.
Perfect channel. Anyone try these glass bock frames.?
DrBabs is offline
post #169 of 191 Old 02-21-2015, 06:25 AM
AVS Forum Special Member

toofast68's Avatar

Join Date: Nov 2007
Location: NorthEast Ohio, USA
Posts: 1,670
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 486 Post(s)
Liked: 131
Hopefully this is related...I see that the OP installed 2 ceiling clouds, assuming to tame first reflection from center and then left/rights.

Would installing ONE LARGE cloud wide enough have the same effect and really be just as good if not better ?

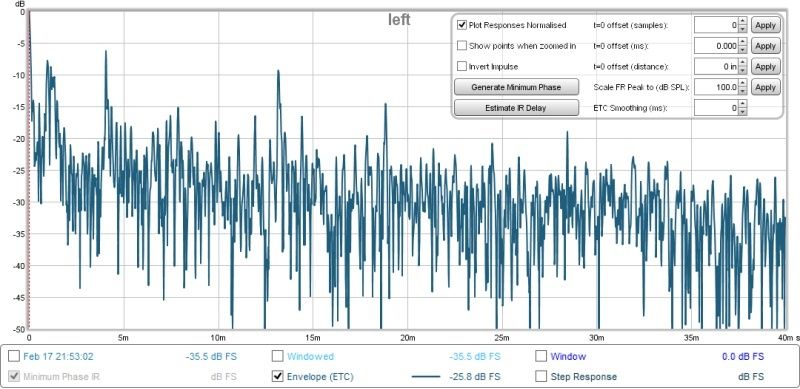

This is what I am trying to tame.

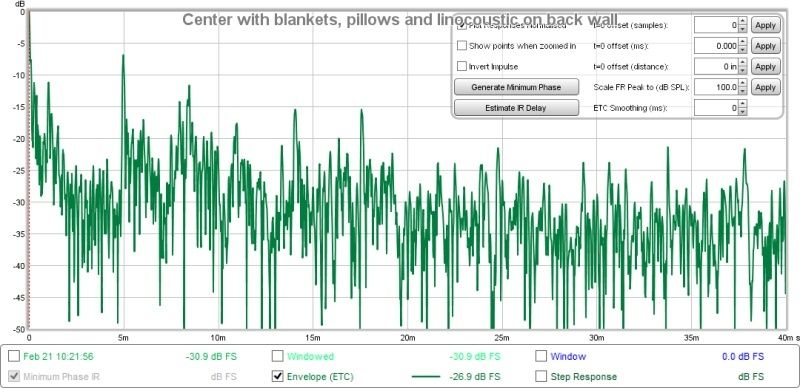

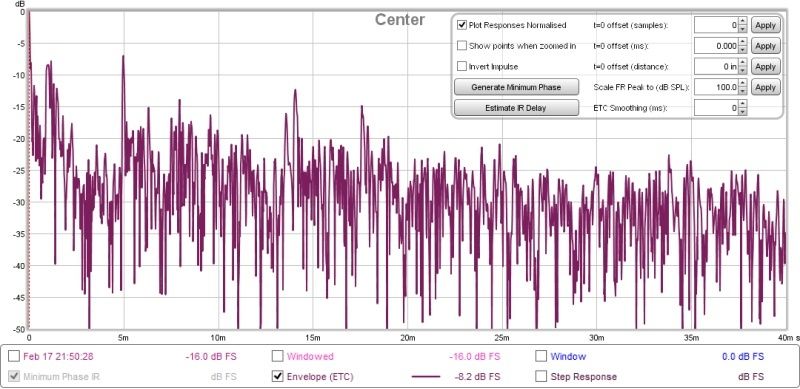

I am going to show centers now....with and without makeshift treatment.










Last edited by toofast68; 02-21-2015 at 07:30 AM.
toofast68 is online now
post #170 of 191 Old 02-21-2015, 06:33 AM
AVS Forum Special Member

toofast68's Avatar

Join Date: Nov 2007
Location: NorthEast Ohio, USA
Posts: 1,670
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 486 Post(s)
Liked: 131

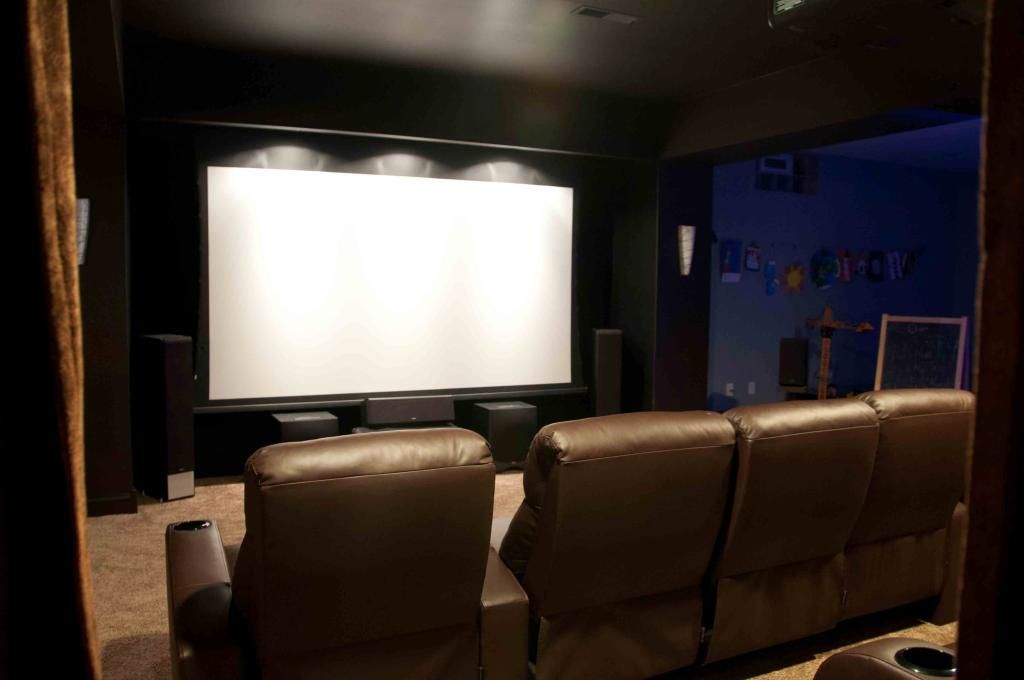

Here are some room pics to help, I have a dedicated, OPEN WALLED theater :-)

toofast68 is online now
post #171 of 191 Old 02-21-2015, 09:55 AM
AVS Forum Special Member

toofast68's Avatar

Join Date: Nov 2007
Location: NorthEast Ohio, USA
Posts: 1,670
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 486 Post(s)
Liked: 131
Figured would post the before and after testing of a temp ceiling cloud...now I just gotta make them and figure out how to deal with the vent in the ceiling...dang!

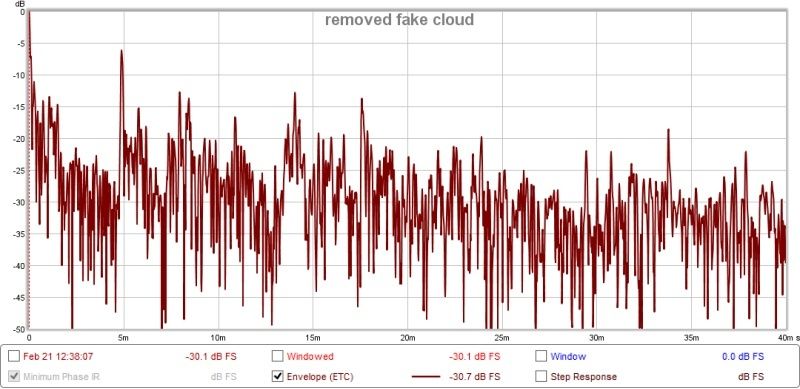

BEFORE

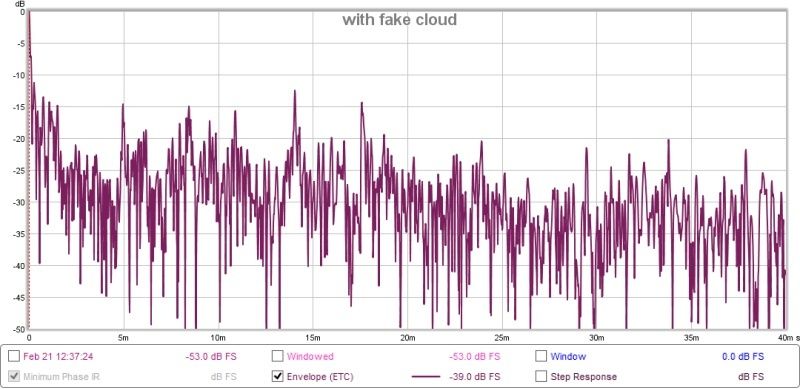

AFTER
mtbdudex likes this.
toofast68 is online now
post #172 of 191 Old 02-22-2015, 07:30 PM - Thread Starter
AVS Forum Special Member

mtbdudex's Avatar

Join Date: May 2007
Location: SE Michigan
Posts: 6,763
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked: 1479
Quote:
Originally Posted by toofast68 View Post
Figured would post the before and after testing of a temp ceiling cloud...now I just gotta make them and figure out how to deal with the vent in the ceiling...dang!


BEFORE





AFTER
Looks like at 5ms your reflected sound (5.8 feet longer than direct sound) was quite strong, within 5db of the primary path, and the ceiling cloud attenuated it.
nicely down to -15db. This is one seating position, did you notice same at other seat positions and/or from your other front sound stage speakers?
mtbdudex is offline
post #173 of 191 Old 02-23-2015, 06:16 AM
AVS Forum Special Member

toofast68's Avatar

Join Date: Nov 2007
Location: NorthEast Ohio, USA
Posts: 1,670
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 486 Post(s)
Liked: 131
Yeah, I did make a bit of progress...


I am making the cloud the width of my front speakers, which relates to the full 1st reflection path (downloaded that software package to validate) so I should be good across the front row (will measure of course)


The back row is tricky...


Basically I have a drop in the ceiling from 8' 6" to 7' 6" right above the front row. What this means is that first reflection of the ceiling for the back row is not getting a clear path. It will hit the 12" drop and reflect forward, etc.


Hopefully this makes sense....I am sort of at a lose what to do, if anything....but I will keep measuring, etc. I might try to make the cloud wider and see if I can catch both rows....to stop the bounce off the cove and see if that helps.


Finally...I noticed is some of your notes, that you did diffusion on back row vs. absorption...since your 2nd row is close to your back wall. Any ideas how I TEST for diffusion with out buying or building a diffusor ?


Thanks again!
toofast68 is online now
post #174 of 191 Old 02-23-2015, 10:28 AM - Thread Starter
AVS Forum Special Member

mtbdudex's Avatar

Join Date: May 2007
Location: SE Michigan
Posts: 6,763
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked: 1479
^^^ my plan was transition from porous absorber to diffuser for back wall, I've not done that yet, so for now I'm 2" OC703 + 2" air gap.
It's on my bucket list....from 2014 new years resolution ..
mtbdudex is offline
post #175 of 191 Old 02-23-2015, 11:23 AM
AVS Forum Special Member

toofast68's Avatar

Join Date: Nov 2007
Location: NorthEast Ohio, USA
Posts: 1,670
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 486 Post(s)
Liked: 131
Quote:
Originally Posted by mtbdudex View Post
^^^ my plan was transition from porous absorber to diffuser for back wall, I've not done that yet, so for now I'm 2" OC703 + 2" air gap.
It's on my bucket list....from 2014 new years resolution ..
Ha...ok...so I don't feel bad.


I might just make the same absorbers for my back wall, measure and then depending what happens step it up a notch :-)
mtbdudex likes this.
toofast68 is online now
post #176 of 191 Old 02-23-2015, 11:29 AM
Member

DrBabs's Avatar

Join Date: Dec 2010
Posts: 153
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Liked: 16
due to the location, could a soffit bass trap be as effective as a traditional bass trap, if done correctly?
DrBabs is offline
post #177 of 191 Old 02-23-2015, 12:01 PM - Thread Starter
AVS Forum Special Member

mtbdudex's Avatar

Join Date: May 2007
Location: SE Michigan
Posts: 6,763
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked: 1479
DIY construction methods of hang-able acoustic panels & moveable Corner traps...

^^^intersections of walls are good places for broadband bass traps, I have one above my screen. Ethan W has preached soffit broadband bass traps and shows example on his web page.


Via Mikes brain/thumb interface, LLAP

Last edited by mtbdudex; 02-23-2015 at 12:04 PM.
mtbdudex is offline
post #178 of 191 Old 02-23-2015, 12:26 PM
AVS Forum Special Member

toofast68's Avatar

Join Date: Nov 2007
Location: NorthEast Ohio, USA
Posts: 1,670
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 486 Post(s)
Liked: 131
Quote:
Originally Posted by DrBabs View Post
due to the location, could a soffit bass trap be as effective as a traditional bass trap, if done correctly?
So - my head hurts :-)


Man, so now I can't build my cloud yet :-( more research.
toofast68 is online now
post #179 of 191 Old 02-23-2015, 12:52 PM - Thread Starter
AVS Forum Special Member

mtbdudex's Avatar

Join Date: May 2007
Location: SE Michigan
Posts: 6,763
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked: 1479
I built 2 clouds, 1 each for each row, the 2nd one I put kraft paper on both ends that were out of the reflection path because I did not want to over absorb the mid/highs, but still get bass absorbing.

This "big cloud" you are building how large is it? Mine were 2 ft x 13-ish feet both.

Do you have some design already, and materials bought just waiting for time to do it?
mtbdudex is offline
post #180 of 191 Old 02-25-2015, 05:19 PM
AVS Forum Special Member

toofast68's Avatar

Join Date: Nov 2007
Location: NorthEast Ohio, USA
Posts: 1,670
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 486 Post(s)
Liked: 131
Quote:
Originally Posted by mtbdudex View Post
I built 2 clouds, 1 each for each row, the 2nd one I put kraft paper on both ends that were out of the reflection path because I did not want to over absorb the mid/highs, but still get bass absorbing.

This "big cloud" you are building how large is it? Mine were 2 ft x 13-ish feet both.

Do you have some design already, and materials bought just waiting for time to do it?
So my big cloud was/is looking to be about 10' x 2' - I actually might make it a bit larger to catch all the 1st reflections...as you can see this tool shows I am right at 2 ft, actually a bit over.


I am using your design :-) m 1 x 4 x 10'. I have 3" thick roxul safe and sound and will hang 4" or so off the ceiling.
My cove is about 12 ft and I have crown (not installed yet) so I think any wider than 10' would look strange.


My second row is wacky, in my room it is most likely bouncing off the face of my soffit...assuming it goes back down, etc...I am not sure what I can do with that. The software has no ability to show this cove, so what this picture shows is not super accurate for 2nd row. First row is inside the cove, so all good.


If you have suggestions, suggest away !


toofast68 is online now
Sponsored Links
Advertisement

Reply Dedicated Theater Design & Construction

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
