post #481 of 870 Old 08-25-2016, 05:43 PM
AVS Forum Special Member

sigma722's Avatar

Join Date: Nov 2007
Location: Overland Park, KS
Posts: 1,198
Mentioned: 58 Post(s)
Tagged: 0 Thread(s)
Quoted: 606 Post(s)
Liked: 369
Quote:
Originally Posted by BIGmouthinDC View Post
Incorrect, why? I don't have OSB on my ceiling.
I don't know, I just figured dry wall was flimsy. I guess it's the whole, not too much sheer type principle?

To be clear, in the most minimalist form, it is just essentially two poles, right?
sigma722 is offline
Sponsored Links
Advertisement

post #482 of 870 Old 08-27-2016, 06:46 PM
Advanced Member

1st Cav's Avatar

Join Date: Mar 2005
Location: TN
Posts: 898
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 299 Post(s)
Liked: 146
@BIGmouthinDC I've used this thread as a blueprint of sorts for the very near future remodel of my bonus room/ht. I can't thank you enough for providing your insight to the rest of us diy'ers trying to save a buck and create a room that our family's can enjoy.

I do have a question though. How exactly are you guys framing your AT screens? My plan is to use an AT fabric like white spandex over black/grey spandex. For some reason I haven't found how you or anyone else framed their screen. I know your original 16:9 screen was hung on top of the false wall. Did you friction fit your screen in the CIH setup?

Sent from my SM-N910V using Tapatalk
1st Cav is offline
post #483 of 870 Old 08-27-2016, 07:10 PM - Thread Starter
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 31,600
Mentioned: 414 Post(s)
Tagged: 5 Thread(s)
Quoted: 5538 Post(s)
Liked: 5133
nearly every sceeen I've hung has been with z clips on the front face of a minimal frame, with black fabric frames surrounding it.

As for framing a DIY screen you want straight wood that is going to stay straight, so that rules out 2x4 studs, my go to wood is the finger joined pine boards, same as the minimal wall. If you use mid span supports make sure they are set back from the front so they don't show a crease through the fabric.
Attached Thumbnails
Click image for larger version

Name:	DSCF4513.JPG
Views:	471
Size:	631.2 KB
ID:	1626657   Click image for larger version

Name:	DSCF4515.JPG
Views:	437
Size:	628.7 KB
ID:	1626665   Click image for larger version

Name:	DSCF4521.JPG
Views:	441
Size:	603.7 KB
ID:	1626673   Click image for larger version

Name:	DSCF4522.JPG
Views:	475
Size:	602.8 KB
ID:	1626681   Click image for larger version

Name:	DSCF4524.JPG
Views:	439
Size:	606.7 KB
ID:	1626689

4AlexF, hatlesschimp and edge928 like this.

Last edited by BIGmouthinDC; 08-27-2016 at 07:20 PM.
BIGmouthinDC is offline
Sponsored Links
Advertisement

post #484 of 870 Old 08-27-2016, 08:14 PM
Advanced Member

1st Cav's Avatar

Join Date: Mar 2005
Location: TN
Posts: 898
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 299 Post(s)
Liked: 146
Quote:
Originally Posted by BIGmouthinDC View Post
nearly every sceeen I've hung has been with z clips on the front face of a minimal frame, with black fabric frames surrounding it.

As for framing a DIY screen you want straight wood that is going to stay straight, so that rules out 2x4 studs, my go to wood is the finger joined pine boards, same as the minimal wall. If you use mid span supports make sure they are set back from the front so they don't show a crease through the fabric.
Thanks for the pics, they are extremely helpful. And the mid span support advice is great, I never would've thought about that...at least not until I had finished mounting it and realized after the fact.

When you say you surround the screen with some type of black fabric frames, are you referring to the large fabric frames that make up the entire screen wall or are you talking about a separate frame that specifically surrounds the screen (think black velvet border around a Carada screen).

Sorry for the ignorant questions, just trying to plan things out as efficiently as possible.

Sent from my SM-N910V using Tapatalk
1st Cav is offline
post #485 of 870 Old 08-28-2016, 05:59 PM - Thread Starter
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 31,600
Mentioned: 414 Post(s)
Tagged: 5 Thread(s)
Quoted: 5538 Post(s)
Liked: 5133
paint them black before wrapping in velvet.

Attached Thumbnails
Click image for larger version

Name:	IMG_3637.jpg
Views:	2242
Size:	176.7 KB
ID:	1628737
4AlexF likes this.
BIGmouthinDC is offline
post #486 of 870 Old 08-28-2016, 11:27 PM
AVS Forum Special Member

dreamer's Avatar

Join Date: May 2000
Location: Walnut, CA, USA
Posts: 4,029
Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 1477 Post(s)
Liked: 592
Quote:
Originally Posted by BIGmouthinDC View Post
nearly every sceeen I've hung has been with z clips on the front face of a minimal frame, with black fabric frames surrounding it.

As for framing a DIY screen you want straight wood that is going to stay straight, so that rules out 2x4 studs, my go to wood is the finger joined pine boards, same as the minimal wall. If you use mid span supports make sure they are set back from the front so they don't show a crease through the fabric.
What would be your screen frame material of choice if you wanted to build a screen that could be curved for use with an anamorphic lens, then lay flat again for when the lens was not in place for 16:9 content ? Not permanently curved, but curveable. Length of top and bottom rails 12' for a 5x12 curveable 2.4 screen.

*********************
Kirk Ellis
BenQ TK800 VuTec 122" Screen, Harmon Kardon AVR 247
Psycoustic Mark III L&R Towers, Boston Center, Energy Take 5 Surrounds
dreamer is offline
post #487 of 870 Old 08-29-2016, 06:35 AM - Thread Starter
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 31,600
Mentioned: 414 Post(s)
Tagged: 5 Thread(s)
Quoted: 5538 Post(s)
Liked: 5133
Get some of the newer remote controlled bending lumber (BendFlex Wood Products) . With the injected nanomachines at the cellular level sending a signal will cause the wood to bend. After the required bend is achieved you send a signal with the remote and the nanos cease operation.
PTAaron likes this.
BIGmouthinDC is offline
post #488 of 870 Old 08-29-2016, 07:26 AM
AVS Forum Special Member

Kain's Avatar

Join Date: Dec 2001
Location: Dubai, UAE
Posts: 4,185
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1932 Post(s)
Liked: 811
Quote:
Originally Posted by BIGmouthinDC View Post
paint them black before wrapping in velvet.

Spoiler!
What is the thickness of those panels/pads?
Kain is offline
post #489 of 870 Old 08-29-2016, 08:43 AM - Thread Starter
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 31,600
Mentioned: 414 Post(s)
Tagged: 5 Thread(s)
Quoted: 5538 Post(s)
Liked: 5133
I didn't install them I think about 2 inches. Also they were glued on top of 2 inches of linacoustic.
BIGmouthinDC is offline
post #490 of 870 Old 08-31-2016, 07:35 PM
AVS Forum Special Member

smakovits's Avatar

Join Date: May 2007
Posts: 2,230
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 78 Post(s)
Liked: 29
Quote:
Originally Posted by BIGmouthinDC View Post
this picture should only be viewed if you are wearing a bib to protect your shirt from the drool, then consider that there are 8 matching subs along the back wall and you get the idea.

Wait, what...?
4AlexF likes this.
smakovits is offline
post #491 of 870 Old 09-03-2016, 05:51 PM
Senior Member

Patriot666's Avatar

Join Date: May 2012
Location: NW Indiana
Posts: 313
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 134 Post(s)
Liked: 89
Thanks for the info and tips Big!




Sent from my iPhone using Tapatalk
4AlexF likes this.
Patriot666 is online now
post #492 of 870 Old 09-06-2016, 09:28 AM
Member

Join Date: Nov 2015
Location: Cincitucky
Posts: 55
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked: 20

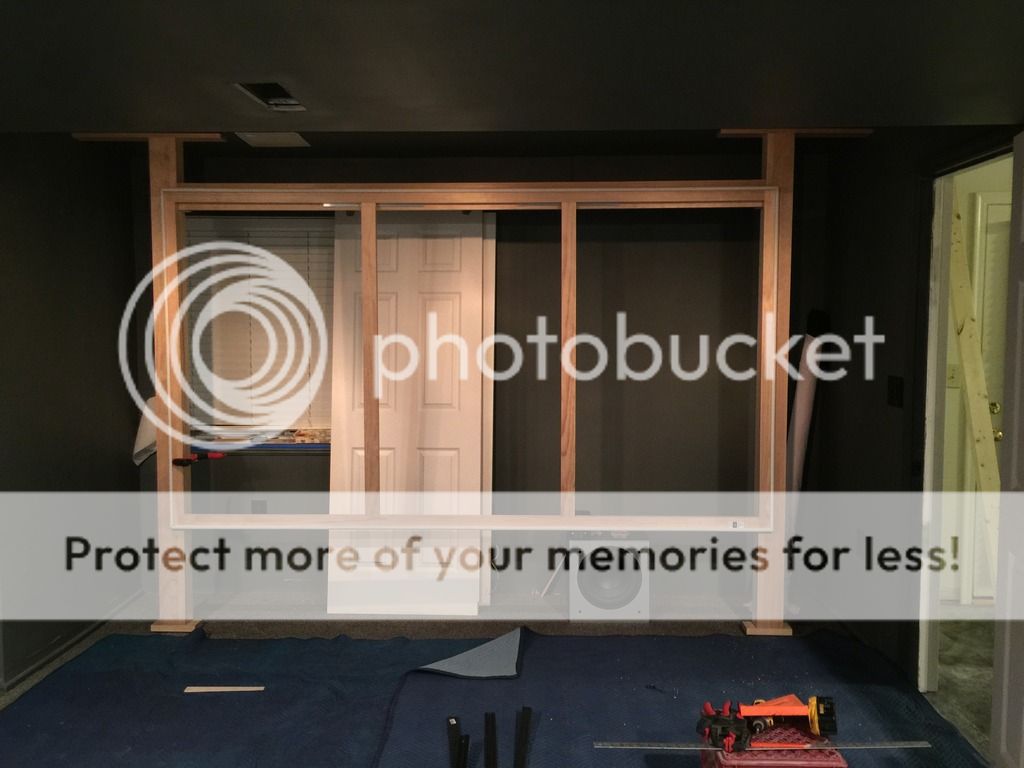

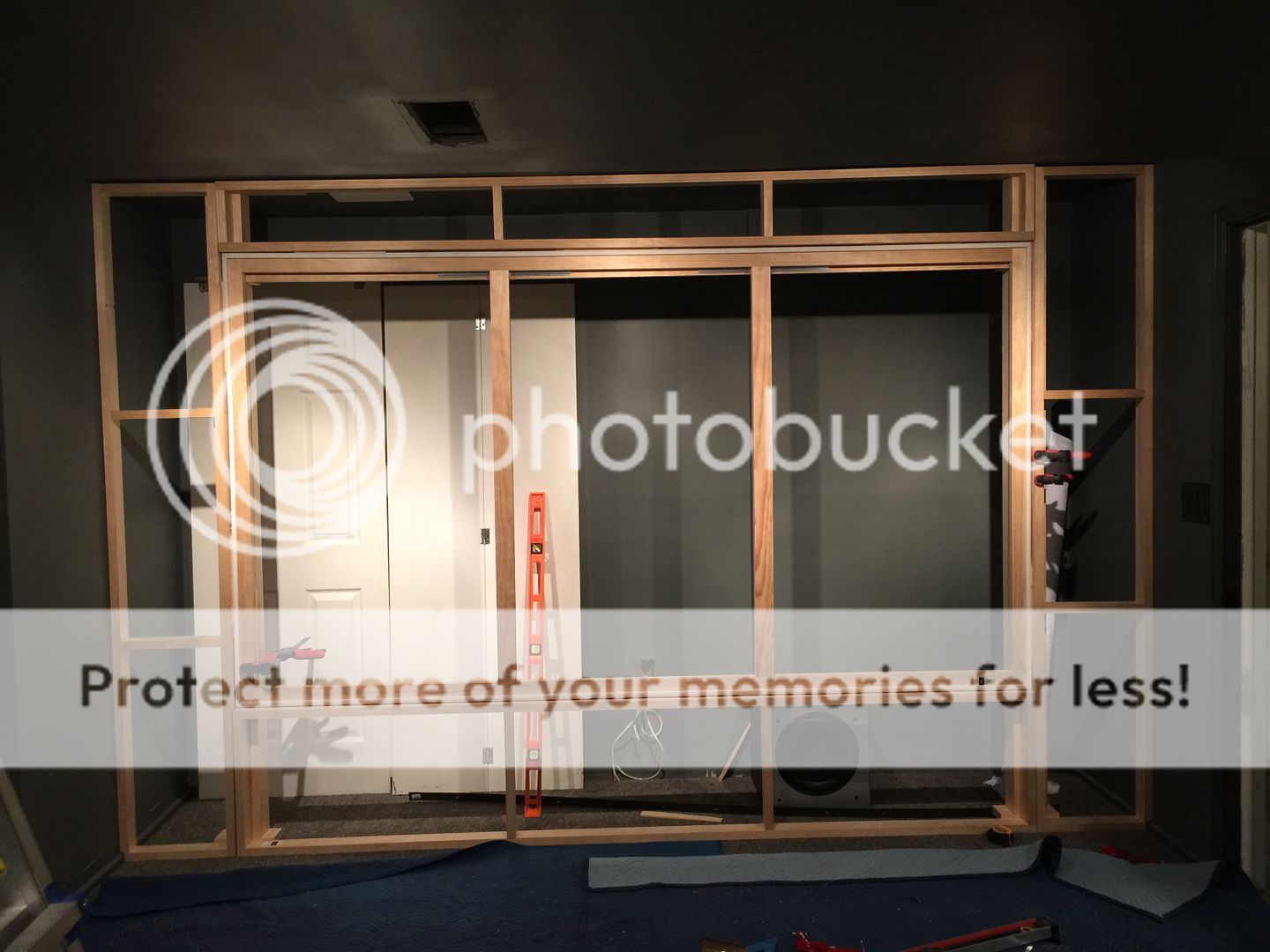

I just finished up my screen wall this weekend and thought I would share my results here as well. Since I don't have a stage to attach the goal posts to I had to figure out how to secure the bottom to the floor so they don't move around. I ended up getting some adjustable feet like they put on the bottom of desks and I put them in the bottom of the posts. I left them loose enough to move them around, attached the top of the posts to a couple of the ceiling joists, then once I got the posts plumb in both directions I tightened up the feet to hold them in place.





rboster, Tedd, krholmberg and 3 others like this.
Newt1822 is offline
post #493 of 870 Old 09-06-2016, 10:03 AM
Senior Member

BlueWRXPride's Avatar

Join Date: Dec 2006
Location: Syracuse, NY
Posts: 312
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 127 Post(s)
Liked: 49
can you show the feet closer up?
BlueWRXPride is offline
post #494 of 870 Old 09-06-2016, 05:49 PM
Senior Member

Patriot666's Avatar

Join Date: May 2012
Location: NW Indiana
Posts: 313
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 134 Post(s)
Liked: 89
I bought window black rubber weather stripping and cut 4 pieces to fit around the top board against the ceiling. It held it in place. Then I used plastic furniture shims underneath once it was in place to get it tight and secure.
Patriot666 is online now
post #495 of 870 Old 09-06-2016, 06:03 PM
Member

Join Date: Nov 2015
Location: Cincitucky
Posts: 55
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked: 20
Quote:
Originally Posted by BlueWRXPride View Post
can you show the feet closer up?

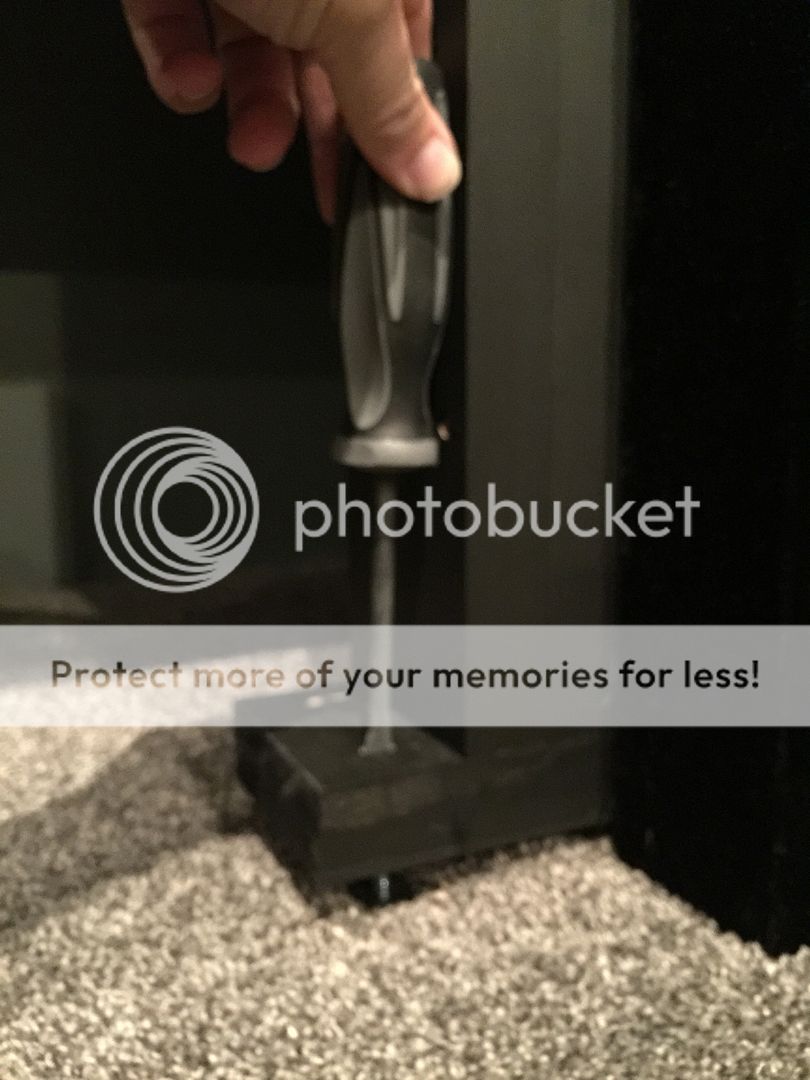

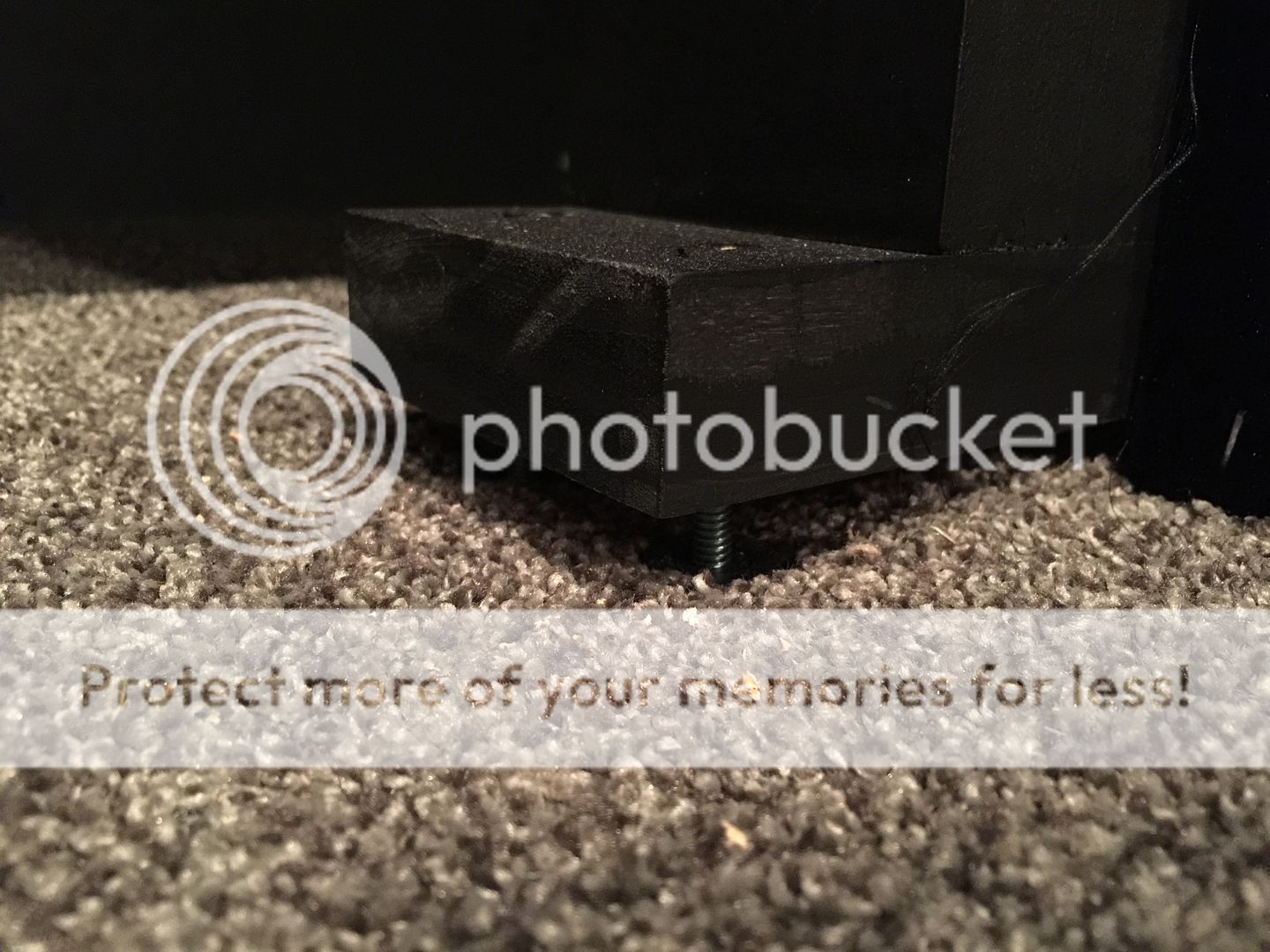

This is the best picture of the feet i can get without taking it apart. Also since the mounting holes for the feet went all the way through the bottom plate, used a dremel to cut a small sot in the top of the screw of the feet so that i could use a screw driver inserted from the top to make it easier to adjust the feet.



Newt1822 is offline
post #496 of 870 Old 09-13-2016, 01:14 PM
AVS Forum Special Member

PTAaron's Avatar

Join Date: Jul 2010
Location: SE Michigan
Posts: 2,240
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 378 Post(s)
Liked: 455
Quote:
Originally Posted by Newt1822 View Post
This is the best picture of the feet i can get without taking it apart. Also since the mounting holes for the feet went all the way through the bottom plate, used a dremel to cut a small sot in the top of the screw of the feet so that i could use a screw driver inserted from the top to make it easier to adjust the feet.
This is an awesome idea! I am going to be building a false wall over a concrete floor with a drop ceiling, I wasn't sure how to attach the bottom without having to do a runner over to the actual front wall. This is a fantastic solution. My first option was to overbuild it massively - this is a much better option.

-Aaron
English Way Cinema and Bar - moving on to v3.0... projector time in 2017!
PTAaron is offline
post #497 of 870 Old 11-07-2016, 12:36 PM
Senior Member

greedo's Avatar

Join Date: Jan 2006
Posts: 321
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked: 23
Any idea why I can't see any of Big's pics in this thread?
greedo is offline
post #498 of 870 Old 11-07-2016, 12:47 PM - Thread Starter
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 31,600
Mentioned: 414 Post(s)
Tagged: 5 Thread(s)
Quoted: 5538 Post(s)
Liked: 5133
I just checked they all show up on my computer. if you are at work your network adm may have blocked them.
BIGmouthinDC is offline
post #499 of 870 Old 11-08-2016, 05:29 AM
Advanced Member

Spyderturbo007's Avatar

Join Date: Oct 2005
Posts: 645
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 239 Post(s)
Liked: 98
Another tribute to BIG. Without your advice, I would have probably framed out a 2x4 wall with lumber from Home Depot that would twist up like a pretzel.

I need to add another cross brace at the bottom. My screen has clips that attach to the bottom keeping it a consistent distance from the screen wall. They also lock it to the wall so you can't pull the screen down until you unhook the clips.

Attached Thumbnails
Click image for larger version

Name:	IMG_2171.jpg
Views:	1206
Size:	133.3 KB
ID:	1759969
Spyderturbo007 is offline
post #500 of 870 Old 11-08-2016, 04:34 PM
AVS Forum Special Member

thrillcat's Avatar

Join Date: Mar 2013
Location: Ames, Iowa
Posts: 1,305
Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 526 Post(s)
Liked: 492
Been doing a bit of remodeling in my room. Here's a quick look at my screen wall.





And a quick shot with the screen up before the trim was in place under the screen.




Sent from my iPhone using Tapatalk
BIGmouthinDC likes this.

I love my iPhone, but it will never replace my turntable. I've never seen Titanic OR XXXXXXXXX. Alexa is a stripper name.

The Cinema 1858 Remodel Thread
thrillcat is online now
post #501 of 870 Old 11-09-2016, 03:58 AM

Brian Fineberg's Avatar

Join Date: Feb 2002
Posts: 8,184
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 3543 Post(s)
Liked: 3527
Here is mine
Brian Fineberg is offline
post #502 of 870 Old 01-08-2017, 07:58 AM
AVS Forum Special Member

Gouie's Avatar

Join Date: Jan 2006
Location: Edmonton, Alberta, Canada
Posts: 1,125
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 394 Post(s)
Liked: 241
Quote:
Originally Posted by Brian Fineberg View Post
Here is mine



Hey Brian, how do you like he 1099's? I'm back and forth seems hourly, between those and the HTM's.
Gouie is offline
post #503 of 870 Old 01-08-2017, 12:09 PM
AVS Forum Special Member

VicTorious1's Avatar

Join Date: Jan 2013
Posts: 1,222
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 580 Post(s)
Liked: 668
Quote:
Originally Posted by Gouie View Post
Hey Brian, how do you like he 1099's? I'm back and forth seems hourly, between those and the HTM's.
Are you building them into a baffle wall? If so, either would do. The HTM-12 uses the larger waveguide (which can have some benefits). I have the 1099 (actually watching Fury Road right now). The HTM are supposed to be pretty neutral (the Fusion 15, which they are supposed to be voiced similarly to, have been said to be somewhat laidback, for what that's worth). I tend to prefer a neutral sound and have owned (and still own various accurate speakers). The 1099s, however, have been said to be aggressive. They are dynamic and great for movies. I like them so far, but haven't put them entirely through their paces. I've considered upgrading my sides to the HTM-10 and comparing those with the 1099s, but I have no complaints with the 1099s. Do you have limited depth? The HTM are a no brainer then. Don't think you can go wrong with either set.
Gouie likes this.
VicTorious1 is offline
post #504 of 870 Old 01-08-2017, 05:00 PM
AVS Forum Special Member

Gouie's Avatar

Join Date: Jan 2006
Location: Edmonton, Alberta, Canada
Posts: 1,125
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 394 Post(s)
Liked: 241
Minimalist Approach to Screen Wall

Appreciate the feedback. Space isn't a huge concern with about 20" behind the screen. I am hearing great things about the HTM's, will likely end there.

Surrounds are a tough one right now. I've had some budget over runs on the build and will like have to go with the less expensive Volts for the time being.

Regarding the baffle wall, no, I'm challenged enough with what many would consider a "standard" build these days. Honestly, I'm not sure if it would add a lot to the build but my brain is on absolute overload at this point. Adding much more to the planning would certainly push me over the edge! I spent 2 hours building four backer boxes today for outlets behind my screen. Sat down with a cold one to ponder the effort then it hit me, why wouldn't I simply pull the cable through a half inch hole and surface mount the outlet.

Last edited by Gouie; 01-08-2017 at 07:30 PM.
Gouie is offline
post #505 of 870 Old 01-08-2017, 07:27 PM
AVS Forum Special Member

VicTorious1's Avatar

Join Date: Jan 2013
Posts: 1,222
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 580 Post(s)
Liked: 668
Quote:
Originally Posted by Gouie View Post
Appreciate the feedback. Space isn't a huge concern with about 20" behind the screen. I am hearing great things about the HTM's, will likely end there.

Surrounds are a tough one right now. I've had some budget over runs on the build and will like have to go with the less expensive Volts for the time being.
You can't go wrong with the Volts. I use Volt 6s for all my surrounds.
VicTorious1 is offline
post #506 of 870 Old 01-08-2017, 07:30 PM
AVS Forum Special Member

Gouie's Avatar

Join Date: Jan 2006
Location: Edmonton, Alberta, Canada
Posts: 1,125
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 394 Post(s)
Liked: 241
Excellent, nothing like first hand feedback.
Gouie is offline
post #507 of 870 Old 01-18-2017, 09:16 PM
Senior Member

Fazzz's Avatar

Join Date: Dec 2014
Location: CT
Posts: 319
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 139 Post(s)
Liked: 104
Just want to thank everyone in this thread (especially BIG) for the designs. I flat out ripped off Big's design for my screen and it came out great so many, many thanks. I couldn't find finger-jointed pine in my local Home Depot (too lazy to go to the local lumber yard the next town over that probably has it) so I bought 1x4" poplar boards, and glued three of them together with wood glue for each of the side posts. I used poplar because it supposedly doesn't have problems warping. They were very easy to make. For the cross beam, I used a piece of poplar for the front with a douglas fir 2x4 behind it for stability. My wall was mid joist so I used some 2x4s to attach to the joists. I don't have a stage and wanted everything done on top of the carpet in case for some reason the theater ever needed to come down or the wall needed to be moved. I just screwed down through the carpet into the subfloor. Painted everything black with leftover Ben Moore paint from the ceiling. My screen is a Seymour Premier 115" screen with UF. Now I just need to build my fabric panels and my wall is done.





Attached Thumbnails
Click image for larger version

Name:	IMG_8759.JPG
Views:	1612
Size:	140.5 KB
ID:	1904665   Click image for larger version

Name:	IMG_8761.JPG
Views:	1615
Size:	353.4 KB
ID:	1904673   Click image for larger version

Name:	IMG_8760.JPG
Views:	1604
Size:	140.8 KB
ID:	1904681   Click image for larger version

Name:	IMG_8763.JPG
Views:	1615
Size:	122.7 KB
ID:	1904689   Click image for larger version

Name:	IMG_8765.JPG
Views:	1617
Size:	233.1 KB
ID:	1904697

Click image for larger version

Name:	IMG_8766.JPG
Views:	1608
Size:	136.6 KB
ID:	1904705
Fazzz is offline
post #508 of 870 Old 02-15-2017, 11:02 AM
AVS Forum Special Member

Gouie's Avatar

Join Date: Jan 2006
Location: Edmonton, Alberta, Canada
Posts: 1,125
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 394 Post(s)
Liked: 241
This is the approach that I'll be taking but am having a hard time envisioning the side panels. Are you folks friction fitting the panels to the goal posts or the screen frame? I'm trying to picture whether the panels extrude out past the screen or the other way around. My guess would be fitting the panels against the screen otherwise the top and bottom panels would have nothing to fit to.

Anyone have a picture from the side running down the length of the screen they'd be willing to post?

The other thought that I had was to extend the panels out from the screen 2 or 3 inches to house a rudimentary masking system made of curtain but my head hurts trying to envision the framing.
Gouie is offline
post #509 of 870 Old 02-15-2017, 11:36 AM - Thread Starter
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 31,600
Mentioned: 414 Post(s)
Tagged: 5 Thread(s)
Quoted: 5538 Post(s)
Liked: 5133
I have pictures of fitting the panels around the screen sharing the same supports as the screen. I'm out of the country back in my office Monday.

See post 485
BIGmouthinDC is offline
post #510 of 870 Old 02-15-2017, 12:49 PM
AVS Forum Special Member

PTAaron's Avatar

Join Date: Jul 2010
Location: SE Michigan
Posts: 2,240
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 378 Post(s)
Liked: 455
I was debating on posting up my minimalist(ish) wall build since it isn't quite as minimalist as I had intended... but here it is anyway

I have a drop ceiling and a concrete floor - so that complicated the "uprights" or "goalposts" a little bit... I attached them to the overhead joists through the tiles with some downward pressure into the carpet below, but I was worried about them moving on the floor and added some supports back to the wall. They are L shaped because I needed to anchor them into a stud. The screen mount is a frame that is also attached to the joists overhead and stabilized against the front wall with similar supports:


Screen back in place with just the uprights for a test fit:


Test fit of the frames... the top cross piece rests on the wood frame that holds the screen and is cut to fit tightly between that and the ceiling, the bottom cross piece sits on the cabinet that is being kept for storage purposes and has 2 "L" shaped pieces of wood behind it to make sure it doesn't fall over... in the end they had Velcro added to keep them in place.


VERY tight friction fit for all of the panels - I did add blocks on the side walls with Velcro, also Velcro at strategic spots on the uprights for the side panels. The panels all are cut large so they go behind the screen:


The bottom portion is where it became complicated... Made a frame to go around the subwoofers with a "curtain" to hang in front of the cabinet. The curtain has a piece of pex tubing with a steel rod in it to keep it hanging straight while still allowing easy access to the cabinet. I used GOM over the subs to hide them too...



Final product - I'm really happy with how it all turned out!
Tedd, 4AlexF, Patriot666 and 1 others like this.

-Aaron
English Way Cinema and Bar - moving on to v3.0... projector time in 2017!
PTAaron is offline
Sponsored Links
Advertisement

Reply Dedicated Theater Design & Construction

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
