Discussion Starter · #1 ·

After spending countless hours on here trying to soak up all the knowledge that I can it has come time to jump in with both feet and start my own build.


I will be finishing a full basement along with the theater room but the theater will take a little higher priority. So here are the details of the room:

Overall space between studs: 19'-9" x 12'-6 3/4" x 8'-6"




Room construction will be DC-04 clips to decouple walls and whisper clips and channel on ceiling. Two layers of 5/8" drywall with green glue all around. Hoping this will help keep the sound in and the noise out. All walls will be fabric frame with room for sound treatments (similar to Damelon's). Front wall will have an AT screen with a stage and back wall will have a riser for second row seating. Speaking of seating, there will be two rows. First row will consist of three recliner style theater seats while the second row will consist of 5 theater style rocker seats.


Equipment will consist of:

- IB sub build consisting of (4) IB3 18" subs in a manifold configuration

- LCR speakers will be DIY 4Pi

- Two pair of Emotiva ERD-1 speakers for surround duties

- Video provided by JVC RS45 projector (currently sitting in a box and mocking me)

- Xbox 360, PS3, and UnRaid server (with PCH A-300) for video sources

- hopefully a new receiver and amp in the future


Here is the current layout plan:




And here are a few pics of the space as it sits now:

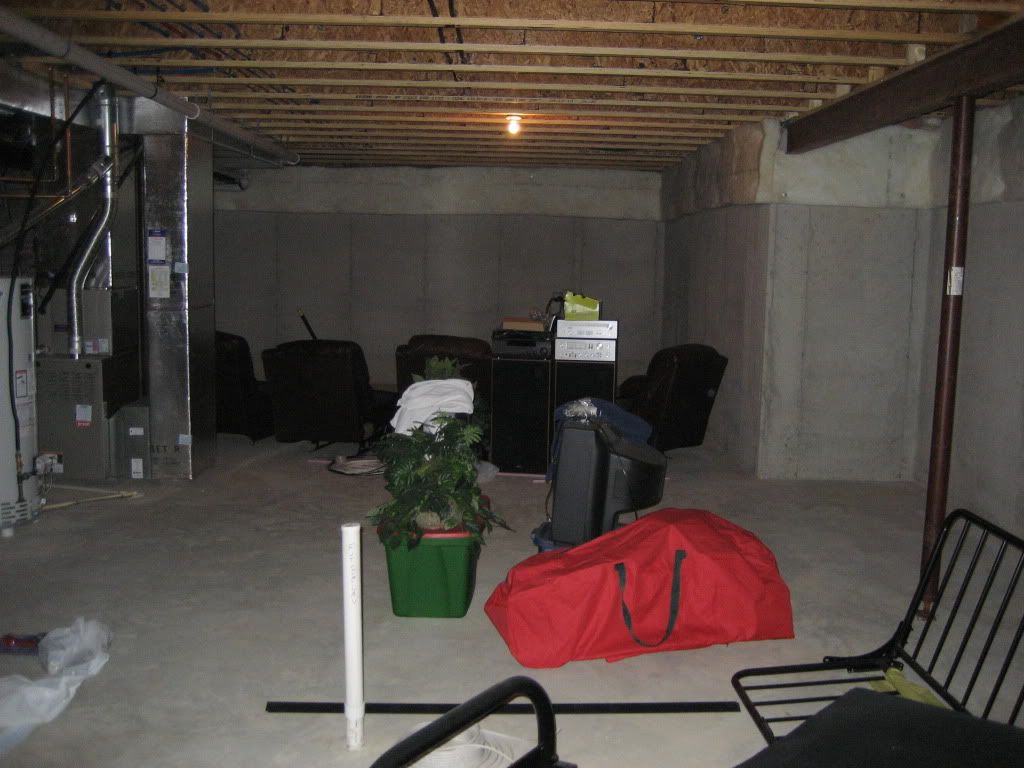

Looking at future theater rear wall.



Looking at right side of future theater.



Supplies ready and waiting!



Here's to hoping this thing works out.


·
Registered
Joined
·
1,224 Posts
Discussion Starter · #2 ·
Construction has begun! Pics to follow later this evening.


·
RETIRED theater builder
Joined
·
35,986 Posts
Good looking plan. Couple of observations. That is a huge investment in space for your IB sub. Something that I'm not sure I could ever commit to if I were building for myself again. On the 4Pi's, Wayne and others advised me to toe in the L/R but space prohibited me from doing that.


·
Registered
Joined
·
7,780 Posts
Consider an initial layer of OSB instead of drywall. Very handy. Where's the stairwell?


·
Registered
Joined
·
9,510 Posts
Would the side IB section on it's own, have enough volume for the IB sub? You could shrink the front AT space's depth by moving the AT screen wall forward 12-14". This additional length could be used to pull the seating forward (with the back row now off of the back wall). The IB subs could be stacked vertically and fire into the room from the front left hand corner, just in front of the AT screen wall.


·
Registered
Joined
·
1,148 Posts

Quote:
Originally Posted by BIGmouthinDC /forum/post/21406769


Good looking plan. Couple of observations. That is a huge investment in space for your IB sub. Something that I'm not sure I could ever commit to if I were building for myself again. On the 4Pi's, Wayne and others advised me to toe in the L/R but space prohibited me from doing that.

+1 on taking a different direction and ditching the IB sub..


Compromising way too much to include it. Immensely powerful and capable subwoofers are readily available and therefore giving up precious room space for it doesn't add up.


The other problem with the IB sub is that you have zero flexibility in moving it without an entire reconstruction. The benefits of the extra space and the ability to slide a subwoofer a few feet here and there along the front wall would overrule it for me..


My 2cents.


·
Registered
Joined
·
1,224 Posts
Discussion Starter · #9 ·
Big - Thanks, I've spent numberous months tweaking the layout and will probably tweak some as I go as well. As far as giving up a lot of space for the IB, I don't feel like I am sacrifising too much and will hopefully get a lot in return. The enclosure is only about 30" deep and the space to the top of the layout is kind of wasted space. It is very ackward (only 4' deep) and using it for the IB just made sense. See pic below of the bumpout...




As far as the recliners, I like the theater rockers and think they would be a nice addition. Though having extra depth is never a bad thing and would definitely open up more options should my plans change as I get closer to that stage.


Ted W. - Has there been a move away from using double drywall and going to OSB/drywall? I know the benefits of being able to install anything anywhere you want without trying to find a stud but want to make sure that I am getting the same soundproofing benefits as drywall. The stairs are located on the far right side of the layout...




Tedd - The section under the bumpout would be approx. 5.5x Vas for (4) IB3 18" subs. I would be adding insulation inside the chamber so I might be able to get that up over 6 which I believe to be acceptable. I had not thought about stacking them and having them fire in from the side. It is an intriguing idea. Not sure how that would change the output and how much easier/difficult to tune. I believe you need about 2 feet clear for each box (so that you are not firing it into a solid surface) so it might be tough to stack them with only 8'-6" of height. The line array is another option and probably my best bet if I decide to go this route. Will definitely look into the idea.


Zamboniman - The IB has been a part of my design from the beginning and I also like the idea of having a different sub setup than most. Others have been able to tune them so I think I can work with it's limitations. Gotta want it.


·
Registered
Joined
·
1,224 Posts
Discussion Starter · #10 ·
Today's progress...


Not as much done as I would have liked but still progress. Nothing fancy, still working on the sheathing and plywood. A few pics...


Looking toward the rear of the future theater space.



Looking from the right of the future theater spacer.



Hoping tomorrow to have more of the plywood floor in. If all goes well I should complete this stage of the build by early next week. I tend to overestimate my ability so don't be surprised if I am still working on this next weekend.


·
Registered
Joined
·
1,224 Posts
Discussion Starter · #11 ·
About 2/3rd's of the way done with the foam today and a few more sheets of plywood down. I will be happy to never have to anchor anything ever again. EVER!


·
Registered
Joined
·
1,722 Posts
Just came across and subscribed to your thread. Looks like you have a good space to work with. I agree with you that you are not giving up much space for the IB. If you were to leave enough room for speakers and a decent sub behind the false wall it looks like the screen would end up pretty close to where you are now. With the speakers recessed it looks like a good use of space.


I agree with Ted's recommendation to use OSB as the first layer. I did OSB and then 2 layers of 5/8 drywall and being able to put screws anywhere comes in really handy. Saved me a lot of time later when putting up soffits.


·
Registered
Joined
·
7,780 Posts
The third layer of mass and second layer of damping really pays off with the low frequency bass isolation. A change in the clip / channel pattern will accomodate the added load of the third layer.


Yet another change in the clip pattern can boost the load potential to over 13 pounds a square foot. So clips and channels can certainly be used with heavy loads. The clip pattern / quantity of clips can be varied to accomodate different loads like projectors, lighting and soffits. The goal being to match up the right clip pattern with the projected weight load. More clips without more load means a stiffer spring = higher resonance = less bass isolation. Balance is the key


·
Registered
Joined
·
1,722 Posts
I'm very happy with the performance of the 3 layers - Even with 4 18" subs going there is significant reduction in bass outside the room.


·
Registered
Joined
·
4,849 Posts
Welcome, in advance, to the 4pi/4 IB3 18 club.



You've got a nice space there - good luck!


·
Registered
Joined
·
1,722 Posts
Guess I need to get the 4pi's so I can join that club. I'm set for speakers, but when the theater is done I'm thinking of building the 3pi's with the AE woofer and DE250 Compression driver.


·
Registered
Joined
·
4,849 Posts

Quote:
Originally Posted by stockmonkey2000 /forum/post/21418665


Guess I need to get the 4pi's so I can join that club. I'm set for speakers, but when the theater is done I'm thinking of building the 3pi's with the AE woofer and DE250 Compression driver.

All right, welcome in advance to you too!



I went with the JBL and DE250 upgrades. The 4pi is shorter than the the 3pi and I am height constrained but the AE woofer sounds like a winner though and cheaper than the JBL now, I thought I heard? Either way, I really like the way these blend with the IB.


·
Premium Member
Joined
·
1,799 Posts
You have the space to do two doors, an inner and outer door, so to speak. Your plan suggests sound isolation is important, and since you do have the space to do it, I'd suggest going that route.


·
Registered
Joined
·
1,224 Posts
Discussion Starter · #19 ·
Thanks for all the comments.


I am definitely looking forward to joining the 4Pi/4 IB3 club! I have the DE250's already but don't plan to upgrade to the JBL's yet. I can't justify the extra cost right now. Maybe down the road that would be a nice upgrade when cash isn't flowing out for other things.


I am looking into possibly doing the line array as suggested above to save a little depth and add some into the theater room and some into the gym area next door. My only concern is making a wall that could withstand 4 18" subs.


I never gave it much thought in doing two doors into the theater room. Right now the plan is to have one. The small little hallway will house the equipment rack on the left (equipment room is to the bottom left of the theater room and a couple of shelves on the right for movies and gaming accessories. Will probably stay with one door but might reconsider as I get farther into my build.


Small update today. More of the same from the past two days. I will have foam board and plywood in my nightmares tonight.


·
Registered
Joined
·
1,224 Posts
Discussion Starter · #20 ·
I have been trying to download the AVS 709 file so that I can test out my projector before boxing it back up for who knows how long. Anybody have some tips or access to the MP4 file they could send me?
