The Hygge Room

27428 Views 111 Replies 32 Participants Last post by  dynfan,
dynfan
Everyone else is doing it so why can't I? Figured I would dedicate a thread to the construction and design of our dedicated theater room. I am somewhat of an AVS newb but have lurked for quite a while. With that said I will share some background with respect to what we want to accomplish by building this room.


First the name:


Hygge is a Danish concept and to best describe it I will use another persons words who best summed it up. " Hygge is about achieving perfection in the pleasures of life with friends and family, but in an effortless and simple way." While I am not danish I very much appreciate this idea and found it a fitting term for what we plan to do with the room when it is finished. Furthermore the speakers being used in the room are from Denmark so that ties in too right?

The Concept:


To create a dedicated theater room to entertain ourselves, our family, and friends. We do not want a dedicated "home theater" in the sense of the term. It will not have movie theater inspired paraphernalia, popcorn poppers, or film real sconces. While that is very nice, it is not for us. We want a cohesive space that is functional yet shows it's purpose. As a result the speakers will be a highlight of the room rather than being hidden behind acoustically transparent panels. The screen will be fixed on the wall and the acoustic treatments, while they will match color and texture, they will be mounted in plain sight. We do not plan on having theater style columns or pillars or the typical GOM lined walls of other theaters.

The components:


Not all of this has been decided 100% but quite a bit of the gear has already been purchased.

Already purchased:


Infocus 5700 front projector

Pioneer Elite DV47Ai

Oppo DV971

DVDO iScan VP30 scaler

Dynaudio Contour S1.4

Dynaudio Contour SR

Dynaudio Stand 4's

Dynaudio Sub500

Earthquake Cinenova Grande 5

Audio Refinement Pre2 DSP

3 x Berkline 880 seats

Proposed setup for the rest of the gear:

Dynaudio Contour S1.4 single speaker for center

Universal Remote

IR repeater

3 x Berkline 880 seats

The Room

Room is 14.5' x 23' x 7'7"and is being built in the basement of our home. Home is 3 years old and we bought it with the idea of building the theater room. Dedicated equipment closet in the back of the room. Two rows of 3 seats with a riser and a small stage. No proscenum or the like......

Wiring Details:

2 x dedicated 20 amp circuits for equipment and 2 dedicated 15 amp circuits for lighting. Monster Cable 14/4 in wall cable for all speakers runs (2 conductors will be combined to create + and - for each speaker). Wired for 7.1 just in case. 1.5" electrical PVC run from equipment closet to projector location for future proofing. Dedicated outlet on switch for projector. RG6 runs to potential sub locations just in case IB is not for me.

Other Details:


9 x low voltage halogen recessed lights housed in MDF boxes. 3 x sconce lights. Room has two 4' x 5' windows. We built slider blinds out of MDF that slide in between the wall to cover the windows and help control ambient light. RC1 channel will be used on the ceiling to isolate the bedrooms located above the theater. Room will have absorption, diffusion, and bass trap treatments.






That should give you a decent idea as to our room. Room is coming along nicely and I will get my pictures hosted and start posting them very soon. Comments/criticism's and such are welcome.
See less See more
Reply
Save
Like
1 - 20 of 112 Posts
B
Hi Wes.


Looks like you'll have a nice setup there. I'm a fan of Dynaudio's also.


Nothing wrong with a utilitarian setup with visible speakers and treatments.


If I could interject one suggestion. I'd reconsider the low voltage lighting. The transformers are noisy in most cases both electrically and physically - not to mention seriously driving up the cost of the lighting and the controllers to deal with the low voltage. Also, halogen IMO is a very harsh lighting for that type of environment. IMO something a bit warmer is much less distracting when you have the lights up a little for more casual viewing.


Bryan
See less See more
Reply
Save
Like
dynfan

Quote:
Originally Posted by bpape /forum/post/0


Hi Wes.


Looks like you'll have a nice setup there. I'm a fan of Dynaudio's also.


Nothing wrong with a utilitarian setup with visible speakers and treatments.


If I could interject one suggestion. I'd reconsider the low voltage lighting. The transformers are noisy in most cases both electrically and physically - not to mention seriously driving up the cost of the lighting and the controllers to deal with the low voltage. Also, halogen IMO is a very harsh lighting for that type of environment. IMO something a bit warmer is much less distracting when you have the lights up a little for more casual viewing.


Bryan
Click to expand...

Thanks for the response. The low voltage lights we bought are very high quality and have been installed for quite some time. With no background noise you cannot hear the lights. I actually like the look of the light the provide and I will supplement them with sconces on a dimmer to give us that relaxed feel if we have the halogen's off. I sure appreciate the input.


My post did come off as we were plannign the room but actually framing, electrical, and insulation was completed some time ago. We are just now hiring a drywall contractor to do that work... As stated I will post pictures when I get them hosted.
Reply
Save
Like
dynfan
6

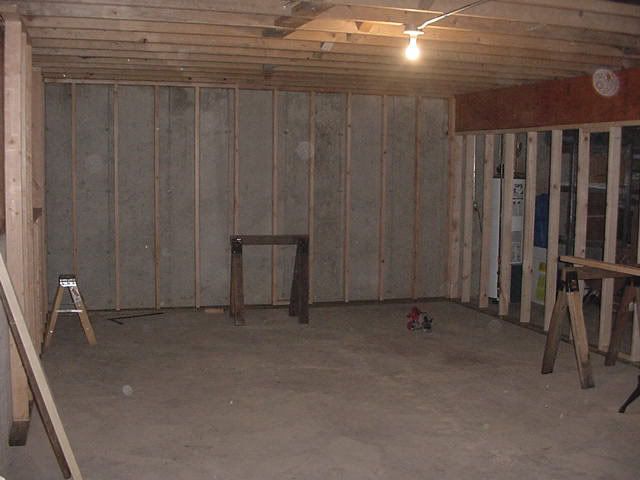

General Framing Pictures:



Equipment closet





We framed in front of the half wall (foundation) to build sliding panels to cover the windows. Here is the track we used.



Panels Open



Panels Closed



Screen wall with wiring installed.
See less See more
Reply
Save
Like
K
How do you pronounce Hygge? (hI-gee, hi-gee, Hi-jee, Hi-g, Hi-j)?
Reply
Save
Like
dynfan
5

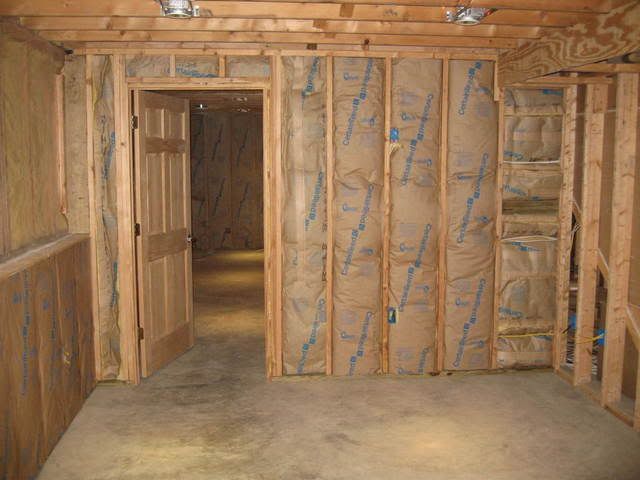

Entrance to theater:



Insulated Screen Wall



View from screen wall



Window wall with MDF sliders open



Window wall with MDF sliders closed
See less See more
Reply
Save
Like
dynfan
5

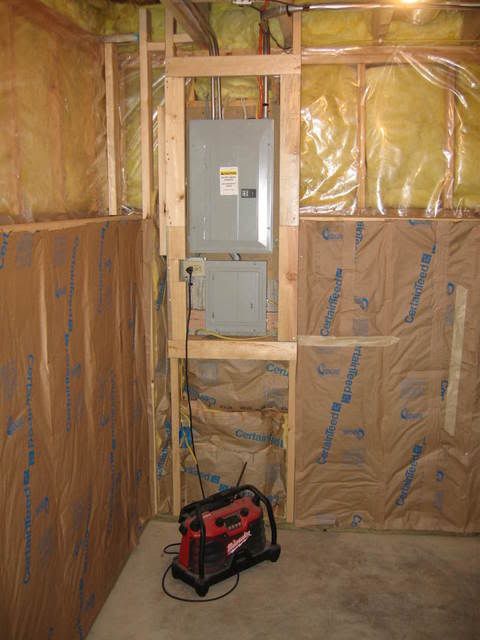

Main panel with sub panel added for theater and the rest of the basement (located in other area of the basement)



Wiring to 3 front channels. Monster 14/4 in wall and RG6.



Low voltage halogen lights with 2" high density insulation over them and R19 between the floor joists.



Projector box

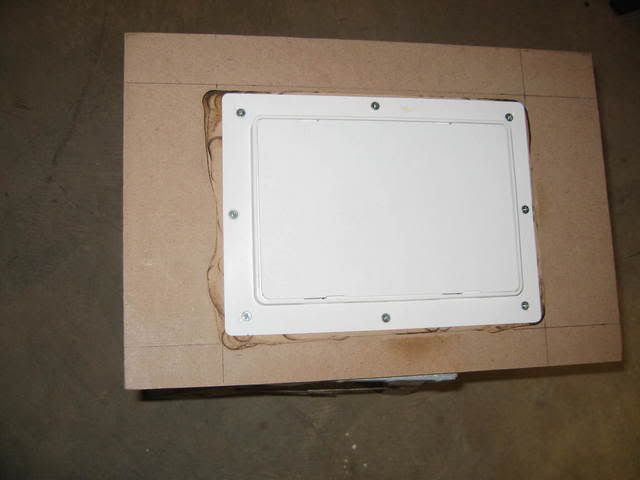

Inside of projector box cover
See less See more
Reply
Save
Like
dynfan
5
Outside of projector box cover



Cover mounted



Dedicated Outlet for projector



PVC run to projector box



Entrance of run in to equipment closet
See less See more
Reply
Save
Like
dynfan
2

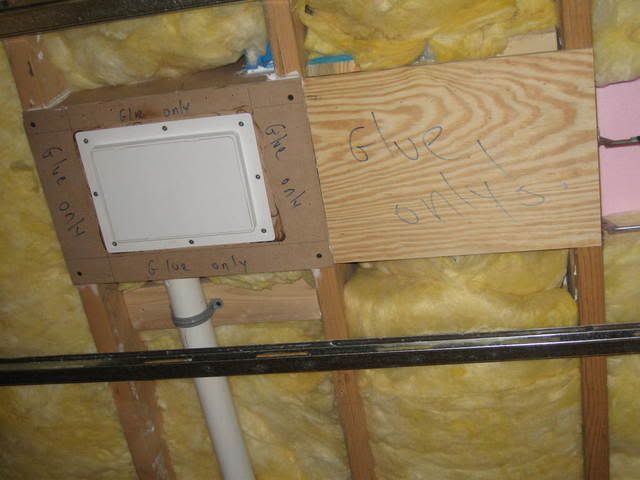

Projector box, mount plate, and RC1 channel installed.



RC1 installed, waiting for drywall



Drywallers started this morning actually. I had to go back and add the 2" insulation over the lights as I forgot to do that. The rest of the basement is rocked and tomorrow they will rock the theater. The screen wall will not get rocked I will be doing 5/8" MDF on that wall. The Drywall and carpet are the only thing being contracted out. I intended on doing the drywall myself, however the price they quoted me was too good to pass up! They will also use bull nose rather than doing 90 degree corners.... Will post more pics. once they are done.
See less See more
Reply
Save
Like
dynfan

Quote:
Originally Posted by kezug /forum/post/0


How do you pronounce Hygge? (hI-gee, hi-gee, Hi-jee, Hi-g, Hi-j)?
Click to expand...

Well honestly I will need to quote another on that. This is th ebest I can come up with for the correct pronunciation.


"The closest native English speakers can come phonetically is "hooga" ... if we try forming our mouths for "ee" while saying "oo."" The adjective form is Hyggelig, so I suppose I could use that. I just thought it was a fitting concept to be applied to the atmosphere we are trying to achieve with our theater room.
Reply
Save
Like
dynfan
4
Entire basement is now drywalled with the first coat of mud and tape in place. Great work so far by the guys I am having do the job. They are using bullnose on all corners that I think makes for a nice clean look. Will post more shots once they are all done.

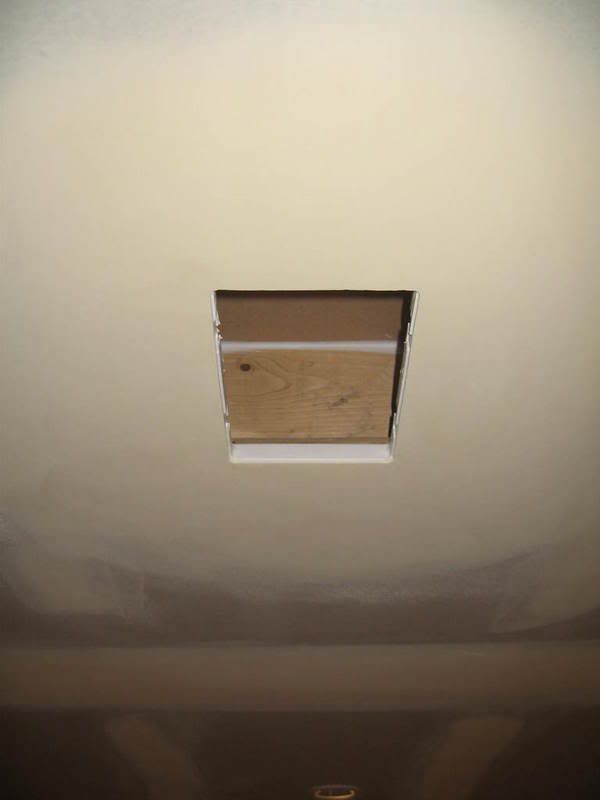

Flush mounted access panel for projector box.



Close up of bullnosed corner



More detail in the edge work.



Frame for main breaker panel and theater dedicated sub panel. We will make a custom door to cover once we start the trim work.
See less See more
Reply
Save
Like
N
starting to take shape.


Nice work so far.
Reply
Save
Like
dynfan
5
Drywall work is done! I am VERY happy with the quality of work and

attention to detail! The bull nose edging is a really nice touch.

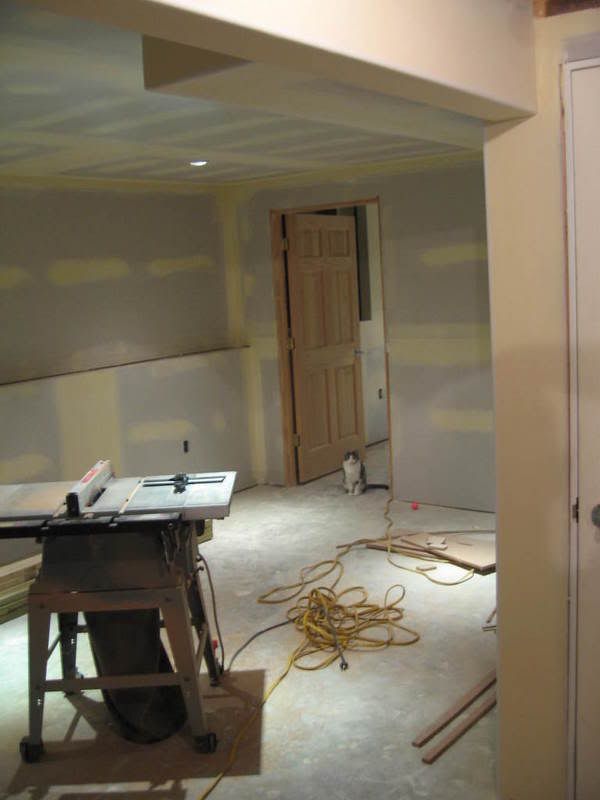

Turning the corner looking at the theater entrance.



Screen Wall made out of 5/8" MDF caulked seams and filled screw holes.



Eqiupment closet



Closet detail of bull nose work and perfect seams



Finsihed window and slider
See less See more
Reply
Save
Like
dynfan
4

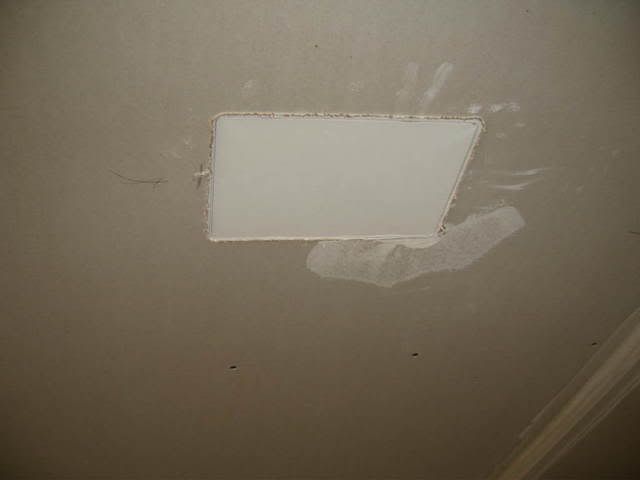

Finished projector box access panel.



Detail of floor beam bull nose work



Breaker panel work, we are going to custom make a cabinet door for this...



Finished soffit work




Purchased stage material today and will start work on that tomorrow.
See less See more
Reply
Save
Like
M
Looks great! Sorry if I missed it, but what is the reason for the MDF on the screen wall instead of drywall?
Reply
Save
Like
dynfan

Quote:
Originally Posted by mbgonzomd /forum/post/0


Looks great! Sorry if I missed it, but what is the reason for the MDF on the screen wall instead of drywall?
Click to expand...

I wanted something pretty darn heavy and MDF is. Couple this with your typical lynnacoustic or 703 installation and it should make for a very dead screen wall. I am not covering the rest of the walls with linnacoustic like many people do. I will take care of the first reflections with custom made OC703 panels and use diffusion and bass trapping elsewhere. I don't want an overly dead room, that only applies to the front screen wall.
Reply
Save
Like
HeyNow^
I love that bullnose look! I'm stealing that one.
See less See more
Reply
Save
Like
BIGmouthinDC
Great job. I did notice one thing. Our local building code requires that ceiling joists not be drilled within 2 inches of the top and bottom. This Picture bothers me. You may want to destroy the evidence (This Picture) before you resell the house.

http://i135.photobucket.com/albums/q...1-14-07009.jpg
Reply
Save
Like
S
Sorry for all the questions, but I'm very interested in your idea for the projector box. Where did you get the projector box cover? I'm looking to do the same thing. How does the cover come on/off of the box? Is your plan to mount the projector in front of that box? How will the wires look coming out of the ceiling?
Reply
Save
Like
dynfan

Quote:
Originally Posted by sbouldin /forum/post/0


Sorry for all the questions, but I'm very interested in your idea for the projector box. Where did you get the projector box cover? I'm looking to do the same thing. How does the cover come on/off of the box? Is your plan to mount the projector in front of that box? How will the wires look coming out of the ceiling?
Click to expand...

Heh that is a simple plastic access panel that can be purchased at ANY Home Depot for less than $10. It clips into the base pretty tightly. The projector will be mounted in back of that panel. I will drill a hole for the wiring and probably use a grommet for whatever size cables I wind up using. I am planning on building a hush box for the projector, but in case that cannot happen I wanted a nice clean look.
Reply
Save
Like
