Registered
Joined
·
529 Posts
Discussion Starter · #1 ·

Well, here goes attempt # 2. Attempt # 1 didn't get off the ground and I ended up selling the house. I previously started a thread called the ragged edge theater back in 09, but now, I'm calling it The Room McLaren. I like the team colors, so I'm going to try to incorporate those colors/theme in the theater.



EDIT: It's renamed back to The Ragged Edge Theater.


My wife and I just had a baby boy, so I'm motivated to get this done, howevaaahh, it's going to be awhile before this is complete, so Logan me now!


I have a mish mosh of equipment I've gathered over the years, not worth detailing. I will be buying a PJ, likely the PT-AE4000U. The rooms rough dimensions are 14.5' x 25', but I believe I may be able to get another 14" -24" of width, we'll see when I demo the room. I haven't done much planning yet for the screen size, but 120" from 14' away is what I'm hoping for. I want to do a AT scope screen with false wall, but we'll see how the budget goes. I plan for only 1 row of seating right now.


I'm combining 2 existing rooms in the basement, which were "finished" by the previous owner. There are no windows. I plan to remove the drywall, keeping the framing if it's decent. Soundproofing will be a big part of this, as the family room where the wife hangs out is right above the HT and has 4 supply vents crossing the HT ceiling. I'll likely need to demo a hole in part of the concrete wall to install a return and also tap into the existing supply.


I've read the thread on SP, but I'm not sure how to deal with the 4 supply vents in the ceiling. Should I replace them with flex duct and insulate, along with doing the normal DD/GG/clips on the ceiling and walls?


I'll have to build a dropped soffit on the right side of the room to match the one on the left containing the supply vent. I'll also build boxes for the recessed lights.


Since there's already recessed lighting and outlets in the rooms, I should only need 1 electrical run for the rack, which I may move to the back of the room, if I can get rid of the existing closet to gain that extra 14-24" width. If not I'll just install it in that closet.


Overall, it's by no means fancy as what I've seen here, but I think it'll be nice. Here's a view of what's existing. I'll post pics shortly.



Here's the basis for the room theme. I'm thinking dark grey walls, with white trim/wainscotting and black/red details. Looking for suggestions here!

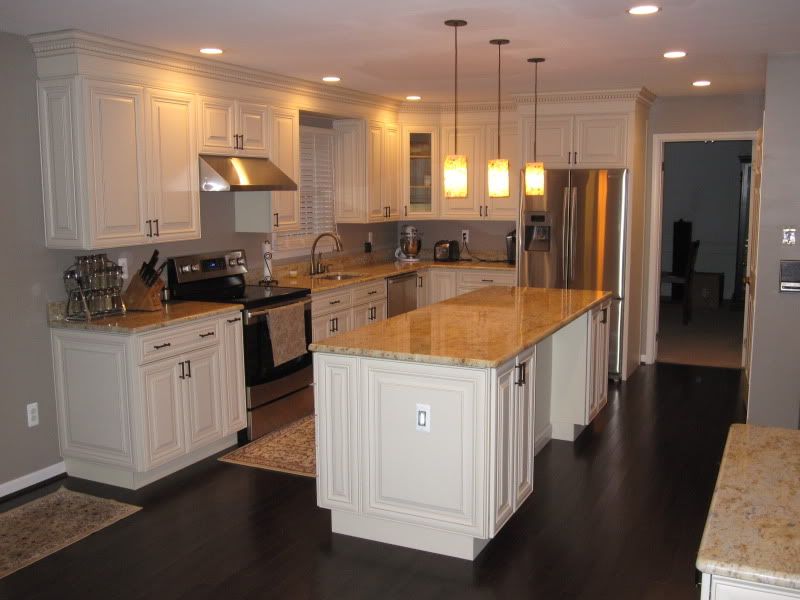

I recently redid the kitchen, here are a couple before/after pics if anyone's interested.




So, thanks for looking, and thank you for the great resource here, I wouldn't even think about this if it wasn't for AVS!

  • Like
Reactions: nandkisham

·
Registered
Joined
·
622 Posts

Quote:
I've read the thread on SP, but I'm not sure how to deal with the 4 supply vents in the ceiling. Should I replace them with flex duct and insulate, along with doing the normal DD/GG/clips on the ceiling and walls?

Do these ducts supply conditioned air to the theater space? If that's the case, you will need to research "dead vents." Ted White's website has an excellent article: http://www.soundproofingcompany.com/...the_dead_vent/


·
Registered
Joined
·
1,435 Posts
Wait a minute - is the top photo before or after??


Just kidding.
That kitchen looks amazing - very well done!

  • Like
Reactions: Phillihp23

·
Registered
Joined
·
529 Posts
Discussion Starter · #5 ·

Quote:
Originally Posted by dwightp /forum/post/20832987


Do these ducts supply conditioned air to the theater space? If that's the case, you will need to research "dead vents." Ted White's website has an excellent article: http://www.soundproofingcompany.com/...the_dead_vent/

The 4 ducts supply the room above. I'll have to tap into the main trunk on the left of the room to supply the HT, so I'm guessing I'll have to soundproof the hell out of the 4 vents and build a dead vent in the dropped soffit on the left. Well, considering the room in below grade, it stays pretty cool down there all summer, but get's cold in the winter, maybe I can get away with just a return air vent? Any thoughts?

Quote:
Originally Posted by petew /forum/post/20833040


Nice job on the kitchen. Man that thing was fugley. What's with the stripes on the floor? Yikes.

Thanks! It took a lot of convincing the wife to "see past the stripes" when we 1st looked at it. The floor was vinyl tile.

Quote:
Originally Posted by AirBenji /forum/post/20833253


Wait a minute - is the top photo before or after??

Just kidding.
That kitchen looks amazing - very well done!

HA! Thanks, it was fun.


Here are some pics of the existing space.


Looking at the entry.



This is the wall between the 2 rooms that's coming down.



Future screen wall. You can see the main trunk in the upper left hand.



Back wall of the theater and exit.


·
Registered
Joined
·
53 Posts
by looking at your new kitchen I am sure you will have an awesome HT
looking forward to see this


·
Registered
Joined
·
529 Posts
Discussion Starter · #7 ·

Quote:
Originally Posted by tdong /forum/post/20833491


by looking at your new kitchen I am sure you will have an awesome HT
looking forward to see this

Thanks man. I hope so, the kitchen was easy, cabinets covered up my sketchy drywalling.


·
Registered
Joined
·
7,780 Posts
Ragged, feel free to send me a PM with your email address and I can forward you a few other articles on ventilation


·
RETIRED theater builder
Joined
·
36,567 Posts
Ragged the current thinking on duct work that passes above a theater is to stop the sound before it gets to the ductwork. Use Teds recommended clips/channel/ DDW and GG ceiling designs and surround the duct work with fiberglass insulation. Flex ducts can be used but it adds resistance to the airflow and will reduce your overall system efficiency.


You can also add mass to the metal ducts with various duck wrap products to help them resist picking up sounds.


Duct work servicing the theater is another issue all together.


·
Registered
Joined
·
529 Posts
Discussion Starter · #10 ·
Thanks Ted and Big, the articles and info are very helpful. I'll plan doing clips/channel/ DDW and GG ceiling designs and surround the duct work with fiberglass insulation. Maybe I'll add another layer of drywall to the underside of the plywood subfloor and definitely build boxes for the recessed lights.


I tried a first draft on the room theme. It's ok, any thoughts? It's approx 14' from screen wall to seating and 16' to projector with 110" screen. I found a 5' rack with casters and glass door on Craigslist for $50, so I thought I paint the inside red. I think it looks cool, but in reality the glass is smoked and equipment/shelves will hide most of it, so we'll see how it turns out. The posters won't all be the same and I plan to try out some custom printed fabric from spoonflower to use as acoustical panels/posters.



·
Registered
Joined
·
5,212 Posts
I like the colors. Looks like you'll have a nice space when you're done.


Let me preface my next comment with I'm completely interior decorating illiterate, so take this with a grain of salt. I feel like you need more than just those two accent stripes in red. Once you get the rest of the posters up, it may take care of it. The other thing I thought of was a faux coffered ceiling using just trim (see BIG's thread) and use the accent color for the trim? It might be too much red, but it wouldn't hurt to put it in Sketchup and see how it looks.


·
Registered
Joined
·
513 Posts
Great job with the kitchen remodel!


·
Registered
Joined
·
529 Posts
Discussion Starter · #13 ·

Quote:
Originally Posted by J_P_A /forum/post/20862109


The other thing I thought of was a faux coffered ceiling using just trim (see BIG's thread) and use the accent color for the trim? It might be too much red, but it wouldn't hurt to put it in Sketchup and see how it looks.

Thanks JPA. I do like the idea of doing something to the ceiling. Maybe I'll do some racing stripes, ha! I'll model up the coffered ceiling ala BIG's thread too, see how it looks. The stripes are a chair rail, the posters are in frames, and I'll put in crown molding too, so there's places to add some more red.


Thanks trek. For some reason I'm more nervous doing the theater than I was doing the kitchen, maybe it's because there was no choice, the kitchen had to be redone.


·
Registered
Joined
·
513 Posts
If the kitchen is any indication, your theater will be awesome....

No worries mate...


·
Registered
Joined
·
423 Posts
Looks promising! If you plan on sitting 14 feet back, you'd probably prefer a bigger screen. That PJ at that throw distance can handle it.


·
Registered
Joined
·
1,189 Posts
That kitchen remodel is gorgeous! Kudos! I'm in awe! How long was that process? (Don't mean to derail here... PM me if you prefer!)


The theatre space looks good. Great size! I found a lot of inspiration in the Color Schemes thread that's in the stickied "Show me your..." thread if you're still interested in color input.


·
Registered
Joined
·
529 Posts
Discussion Starter · #17 ·
thanks Trek, I think it's just the anticipation of getting it started, combined with lack of sleep taking care of a 1 month old that's got me all jittery


Quote:
Originally Posted by gsearles /forum/post/20865488


Looks promising! If you plan on sitting 14 feet back, you'd probably prefer a bigger screen. That PJ at that throw distance can handle it.

I'll definitely go as big as I can manage. I get headaches if I sit too close, so I'll test it out on the wall first.

Quote:
Originally Posted by jdanforth /forum/post/20865619


That kitchen remodel is gorgeous! Kudos! I'm in awe! How long was that process? (Don't mean to derail here... PM me if you prefer!)

The theatre space looks good. Great size! I found a lot of inspiration in the Color Schemes thread that's in the stickied "Show me your..." thread if you're still interested in color input.

Thanks man. It took 4 weeks from start to finish. I looked for race car themed theaters, but didn't see any. I didn't look very long, so maybe I missed one, but there's plenty other inspiration in that thread!


Back wall


·
Registered
Joined
·
529 Posts
Discussion Starter · #18 ·
Slow progress, but progress nonetheless. Tough to get things done when you have a 2 month old, but I'm grinding along. Got most of the demo done, just the back wall and 1/2 the ceiling left. Existing framing isn't perfect, but it'll do. Also worked on the plan a bit. I'm really just learning from what I've read/seen done here and doing what I think will work, so any comment/criticism is more than welcome. Looks like room is going to be 12'-3" x 24'-4" after drywall is done.

Thanks.


Most of my equipment is what I gathered over the years:


Currently own;

Pioneer VSX 82 tsx receiver

Swan Diva 5.1 LR

Phase technology teatro surrounds

PS3

Xbox 360

HTPC

Belkin Pure AV power conditioner

2 Klipch sub 10 subwoofers


To be purchased;

18" Mach 5 subwoofer and enclosure

Behringer EP2500

Swan C3 center channel

CyberPower OR500LCDRM1U rack mounted UPS

Panasonic PT-AE4000U

Cooler guys rack mount fan controller






·
Registered
Joined
·
3,014 Posts
Well, it certainly looks as though you are looking at the right things in your design. Using the Panny 4000, you are looking at 13FL on the screen. That's a good number (but near the lower limit of 12). If you I am pushing the same in my theater and it looks great. When I visit other theaters that are pushing much more, they look so bright!


In any event, take a look at the Panny 7000 that was just released. It has more lumens available and your number will push to 16 or so...the extra brightness will be welcome. If you already have the projector, that's OK.


The isle between rows looks to be way too close. You are showing 2'! I have 5' and one can just barely get by someone sitting in a full recline. I think you can push your front row closer (if the angle does not bother you). In my setup, the front row's eyeballs are 11'6" from the 130" (horizontal width) 2.39:1 screen. A lot of folks like sitting that close. Others prefer the back row. YMMV


Good start!


CJ


·
Registered
Joined
·
529 Posts
Discussion Starter · #20 ·
Yeah, thanks Carb. 2' isn't going to work. Ha, didn't really put much thought into it because I won't be getting a 2nd row for awhile, but still I need to make the space anyway. I originally thought to have the 1st row at 13' and the PJ at around 14' to get the brightness up to 14-16fl. I can't sit too close to the screen, so it's something I'll have to test out before installation. I haven't bought the projector yet. I'd love to get the 7000, but, I'll have to see if I can stretch the budget.
